Recently Viewed Plans | Advanced Plan Search

Sq Ft
1,486 FT²

Bed
3

Bath
2.5

Stories
2

Garage
2

Depth
47'

Width
28'

On Sale
$1,874.25
$2,205.00

Front Rendering

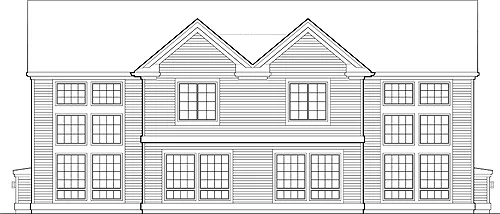

Rear Elevation

View All 2 Images | Photographs may reflect modified home

Sq Ft

1,486 FT²

From

$1,874.25

Bed

Bath

2.5

Stories

Garage

Depth

47'

Width

28'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

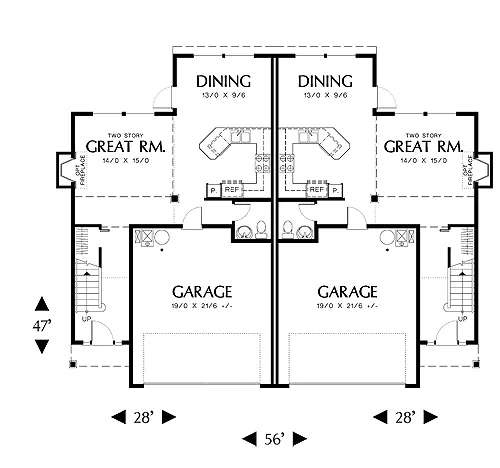

First Floor Plan

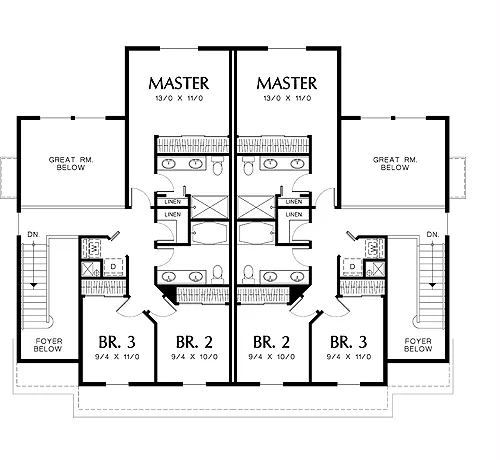

Second Floor Plan

First Floor Plan

Second Floor Plan

About This Plan

Designed with treasured traditional pieces, this home has shuttered multi-pane windows, an entry with sidelights and transom, and double garages protecting the units from street noise. Great planning allows each side of this two-unit design to look and live large - even with a smaller footprint. First-floor spaces include a two-story great room next to a modified U-shaped kitchen and dining room. The kitchen contains a pantry and has a peninsula counter. The plans include an optional fireplace in the great room, if you wish. Near the entry to the two-car garage is a half-bath and a coat closet stands at the ready in the main entry hall.

Bedrooms are on the second level - two family bedrooms and a master suite with private bath. A balcony hall overlooks both the great room and the foyer below. A walk-in linen closet and a laundry alcove finish off the second floor.

FEATURES & DETAILS

Kitchen features

Country Kitchen
Peninsula / Eating Bar

Bedroom features

Double Vanity Sink
Primary Bdrm Upstairs

Exterior features

Front Porch

Foundation Options

Basement
Crawlspace
Slab

Lot Options

Suited for narrow lot

Additional features

2 Story Volume
Dining Room
Fireplace
Foyer
Great Room
Laundry 2nd Fl
Open Floor Plan
Vaulted Ceilings

Garage Location

Front

Garage Options

Attached
Front-entry

2,972 Ft

Total Structure

1,486 Ft

Unit Heated

704 Ft

1st Floor

782 Ft

2nd Floor

Bedrooms

2.5

Bathrooms

Garage

Stories

28' 0"

Width

47' 0"

Depth

26' 0"

Height

Varies' 0"

Main Floor Ceiling

8' 0"

Upper Floor Ceiling

2x6

Framing

Truss

Roof Framing

8/12

Primary Roof Pitch

10/12

Gable Roof Pitch

Duplex

Dwelling Number

None

Bonus Access

Unheated Living Space

446 Ft

Garage

Exterior Styles

Colonial

Traditional

Collections

Affordable

First Home

PDFs Fast!

Plan Package Options

Important info before you buy

Select Plan Package

$2,205

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$2,205

$2,405

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$2,405

$2,455

5 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

$2,455

$4,410

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$4,410

Need To Reverse Plan? (Optional)

$225

Readable Reverse

Reverse house plans with readable text and dimensions

$225

Select Foundation Option

Add-Ons (Optional)

	Ground shipping within the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your house plan
	Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.

BEST PRICE GUARANTEE

find the same house plan (modifications included!) and package for less on another site, show us the URL and we'll give you the difference plus an additional 5% back.

100% SATISFACTION GUARANTEE

We offer a one-time, 14-day exchange policy for unused, non-electronic plan packages in the event you aren't satisfied with your first selection.
