Sq Ft
4,652 FT²

Beds
3

Baths
4.5

Stories
2

Garage
3

Depth
93'

Width
67'

From
$1,650.00

View All 30 Images | Photographs may reflect modified home

Sq Ft

4,652 FT²

From

$1,650.00

Beds

Baths

4.5

Stories

Garage

Depth

93'

Width

67'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

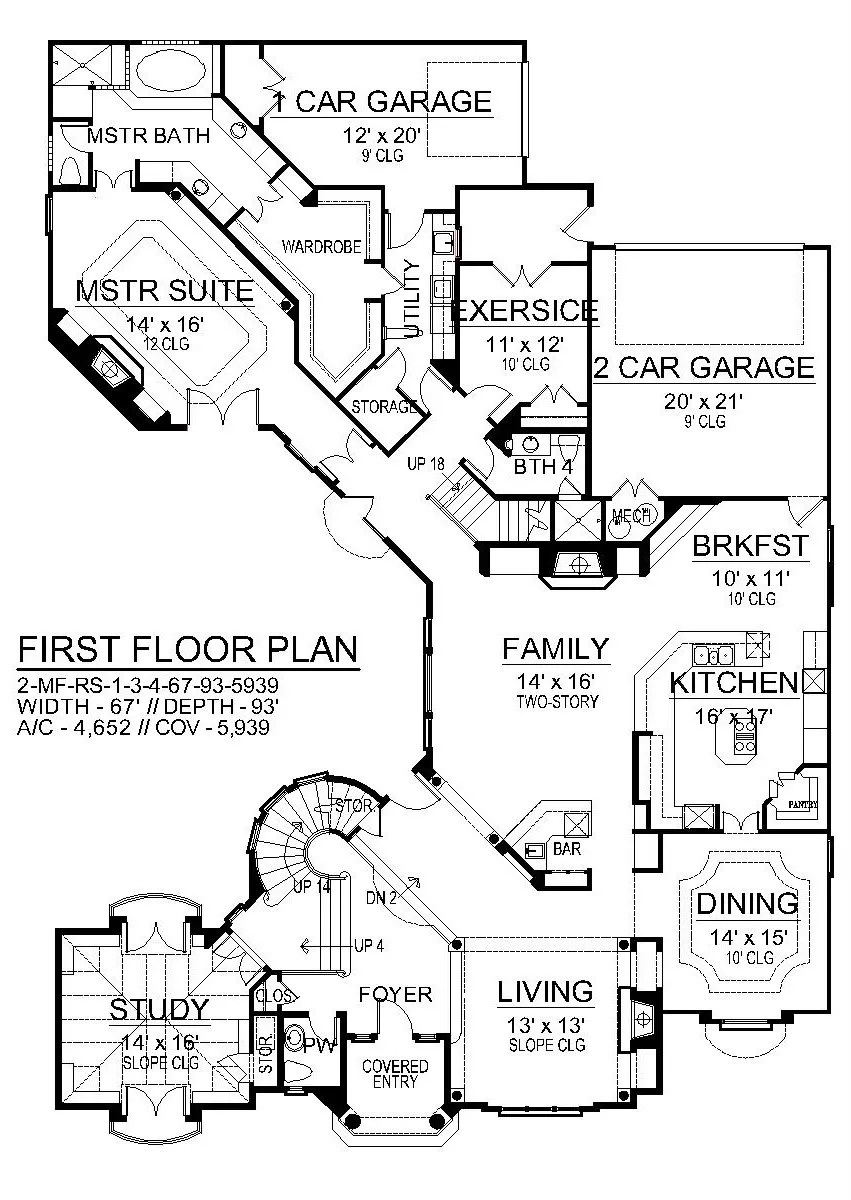

1st Floor

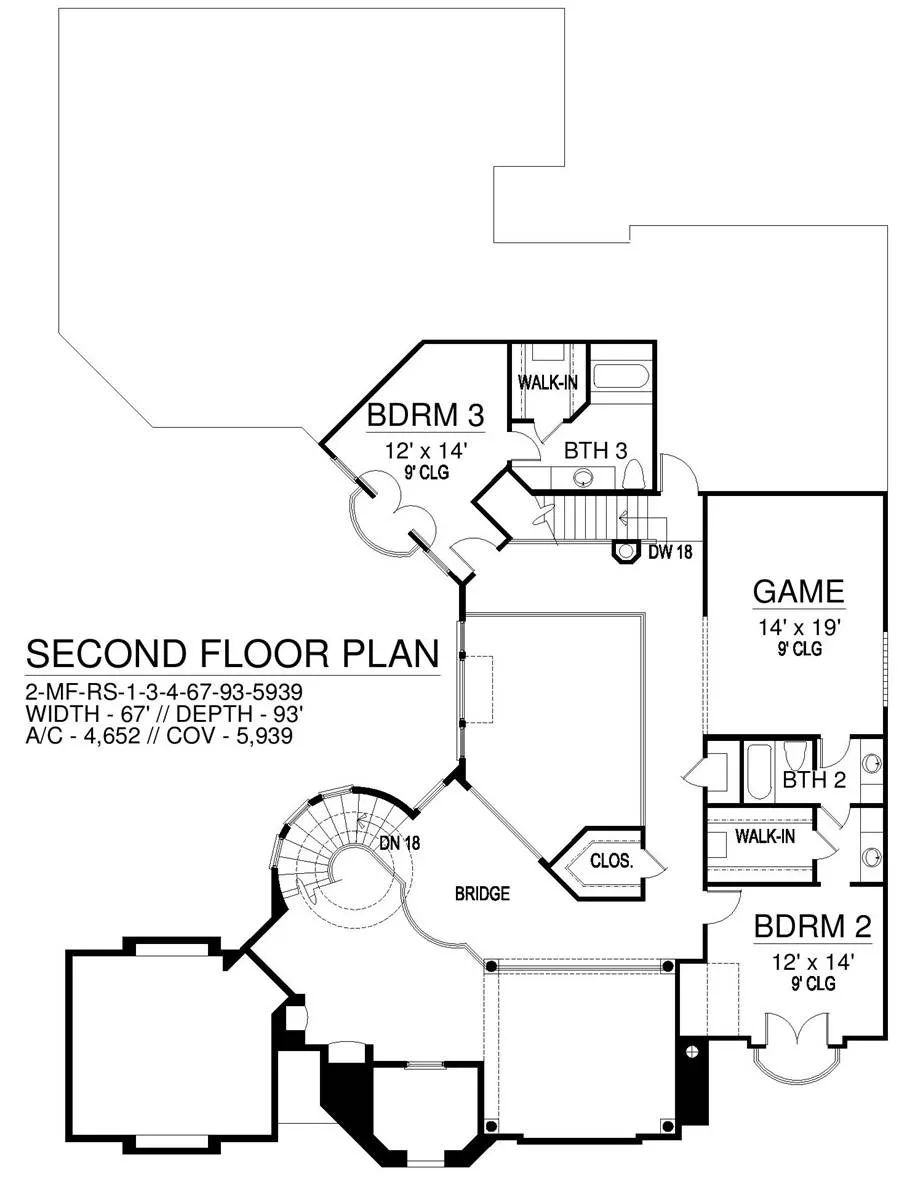

2nd Floor

1st Floor

2nd Floor

About This Plan

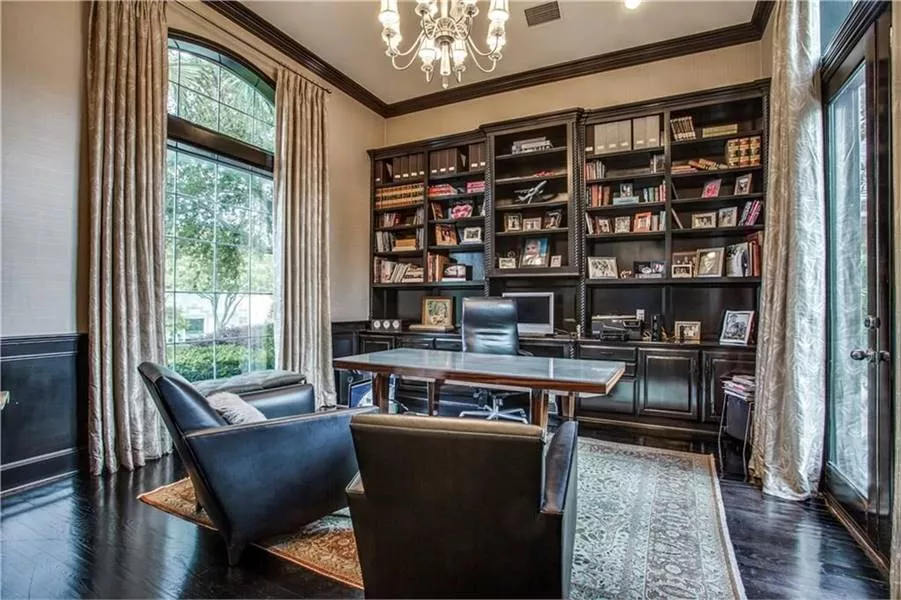

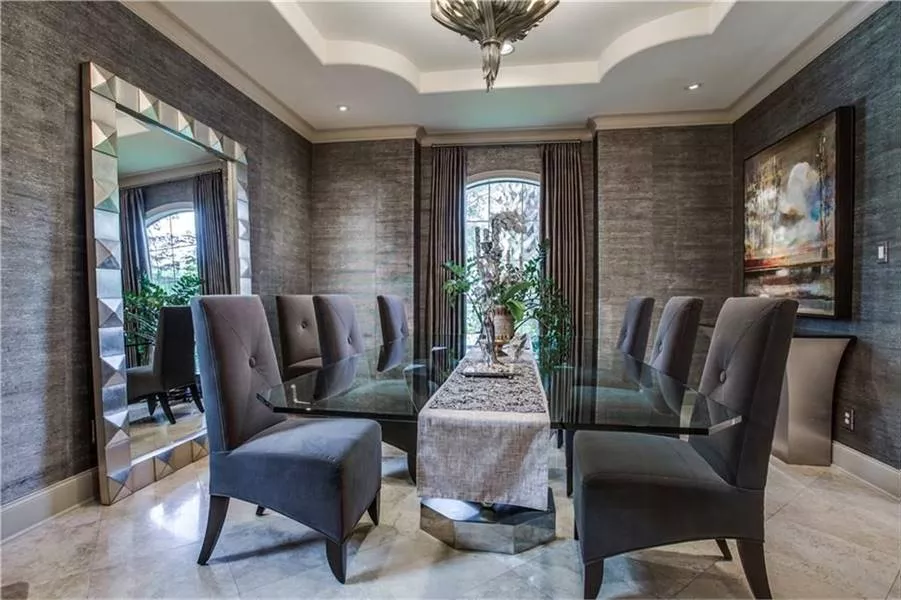

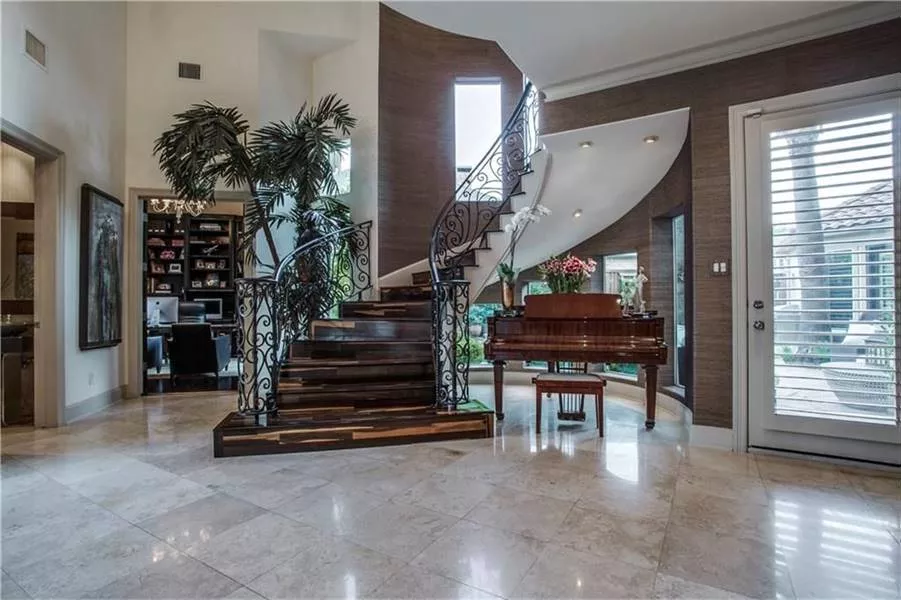

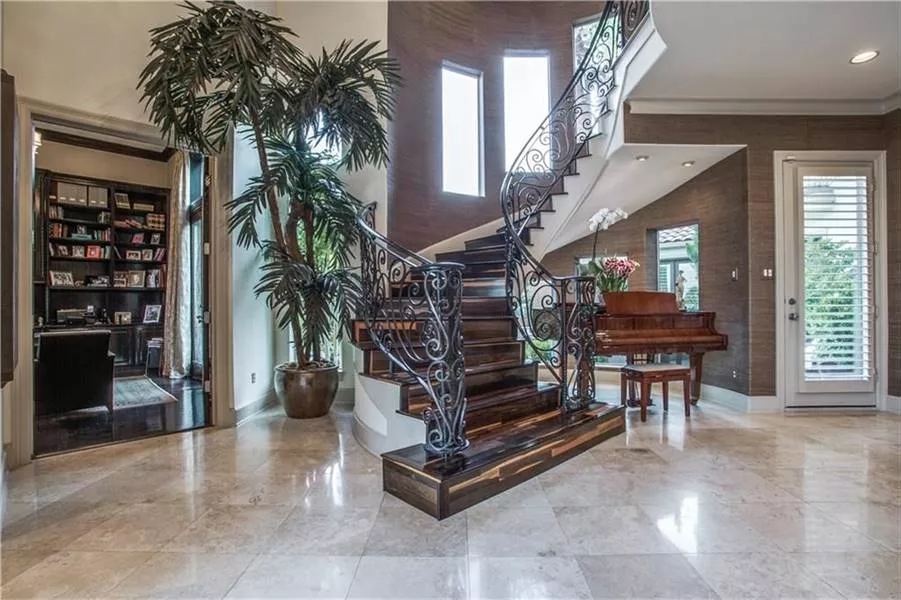

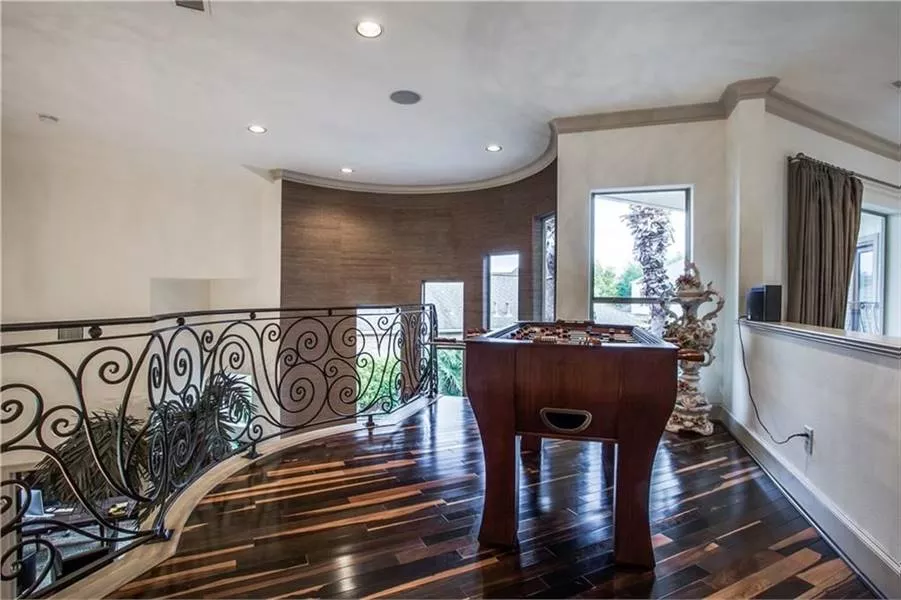

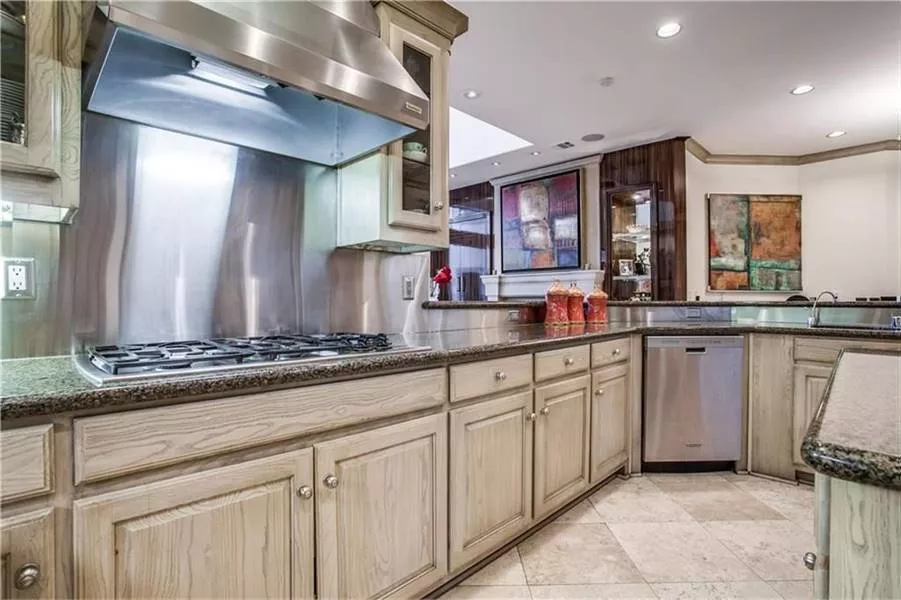

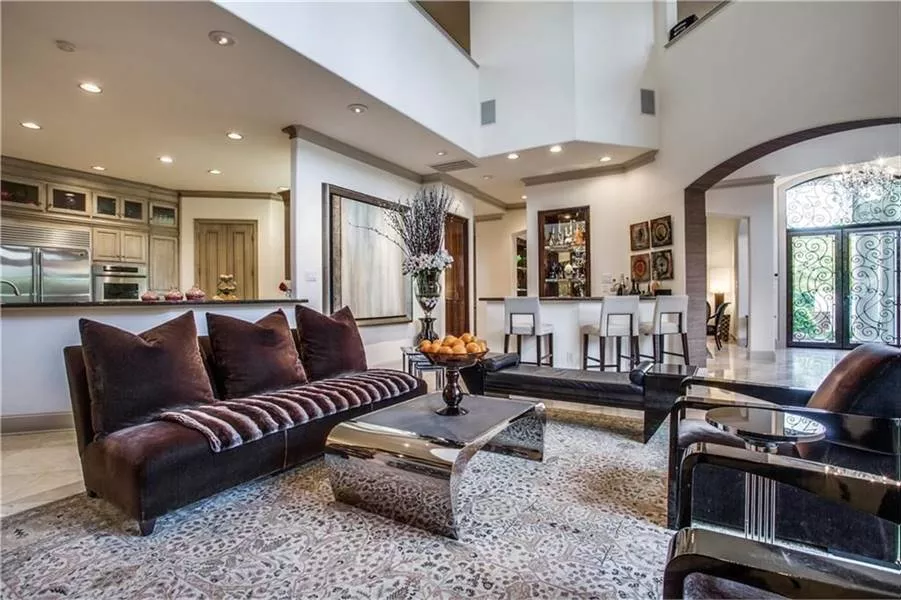

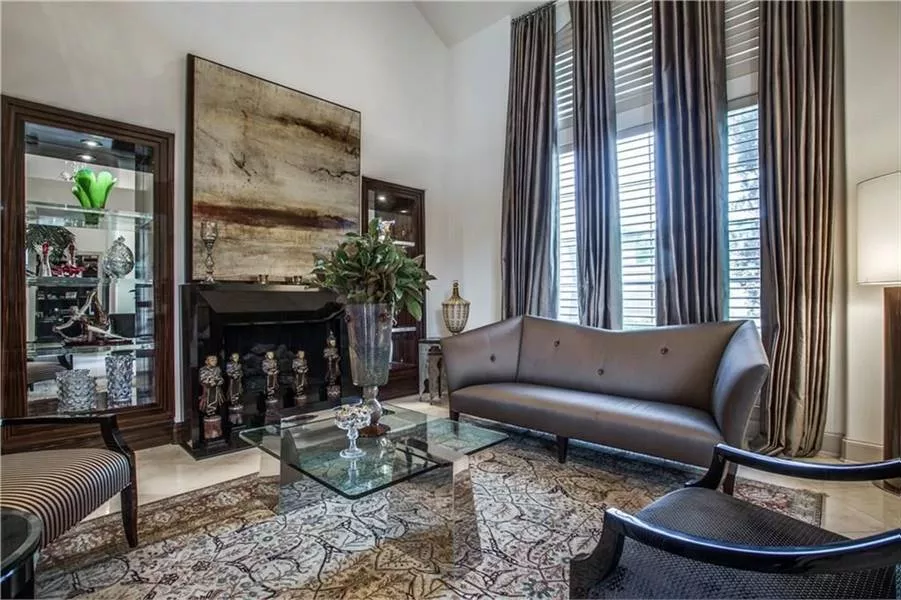

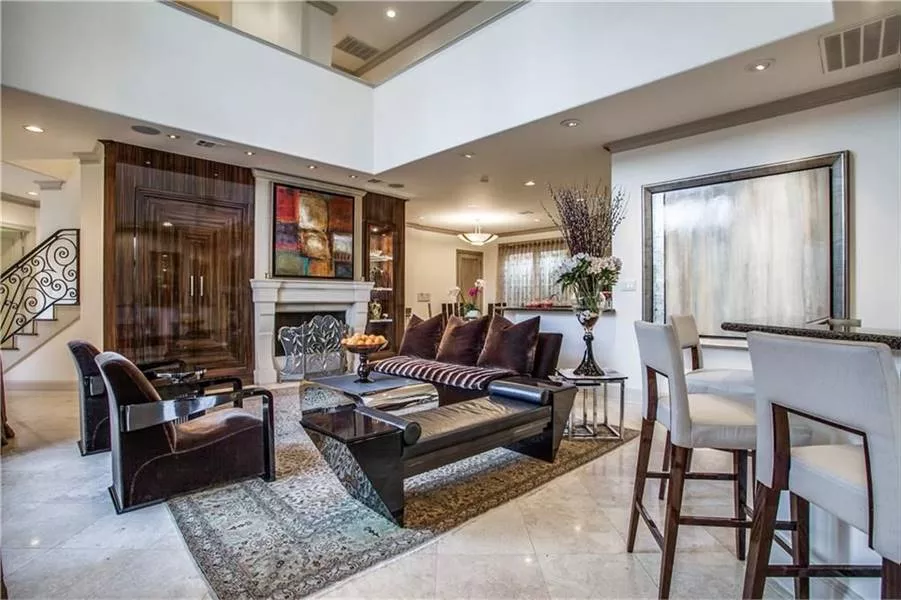

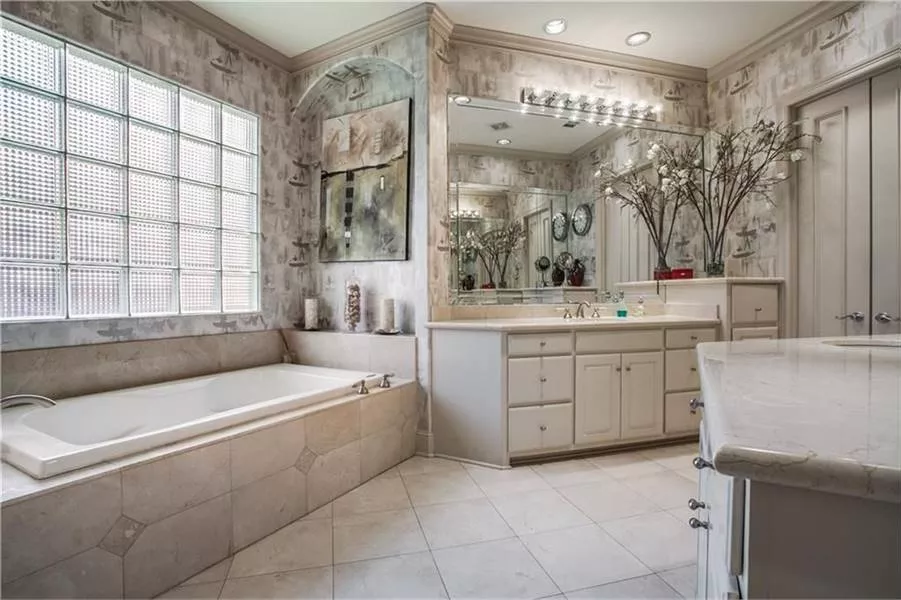

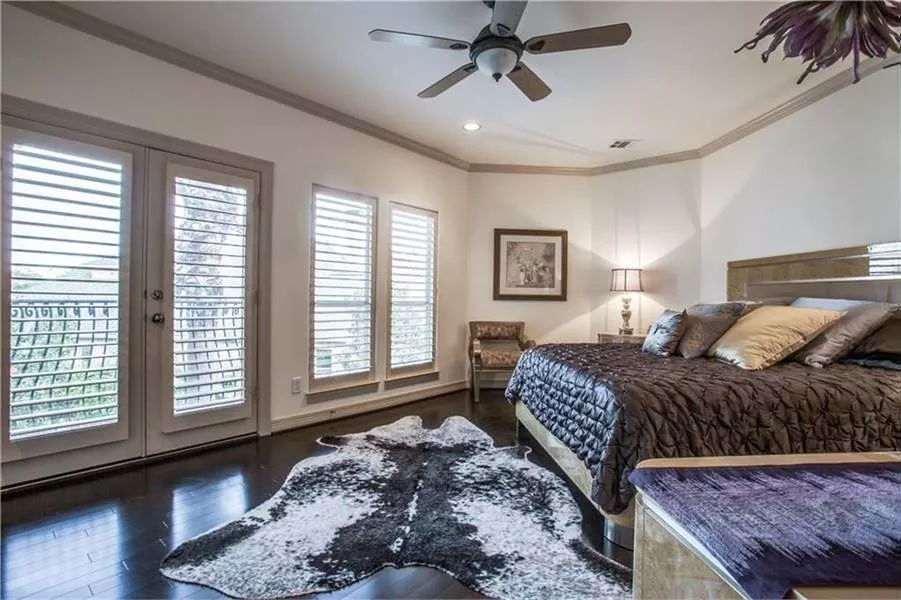

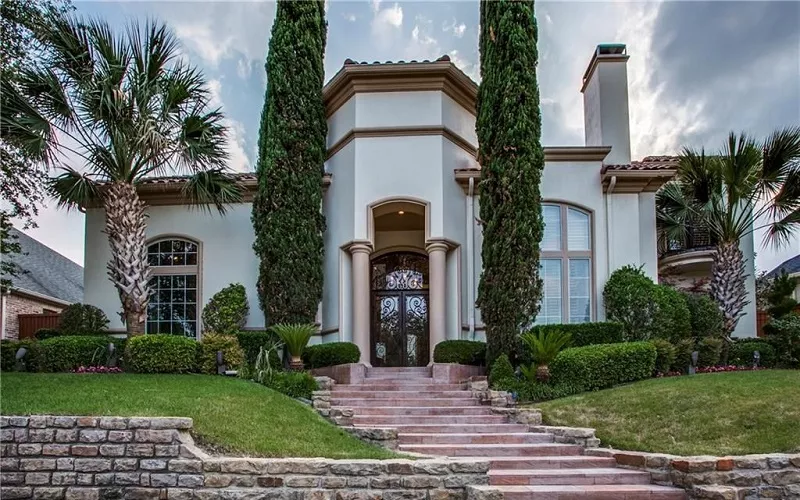

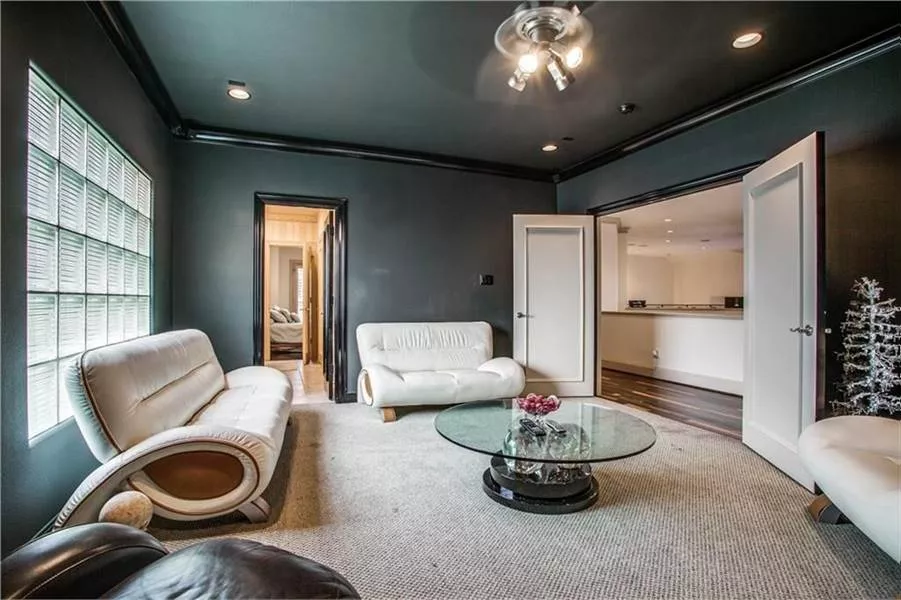

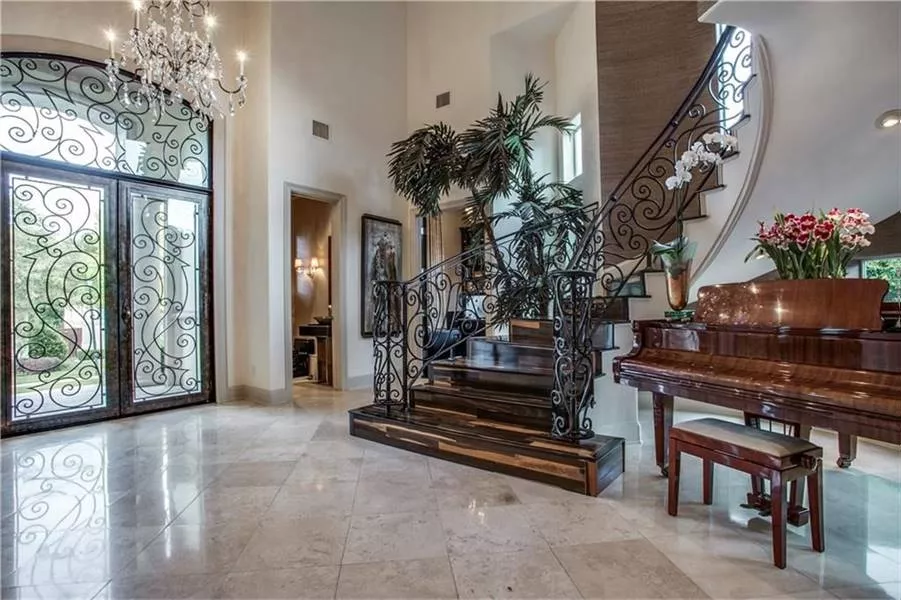

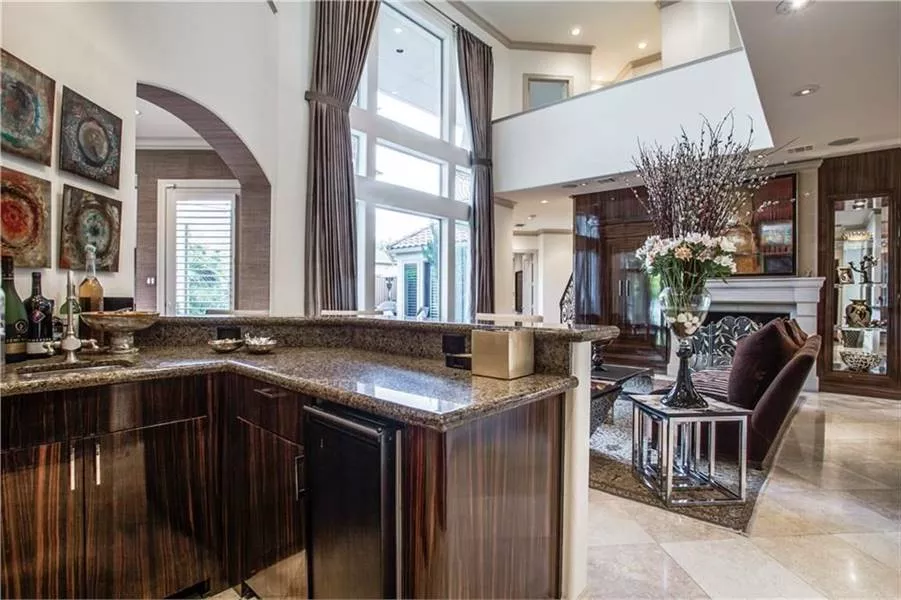

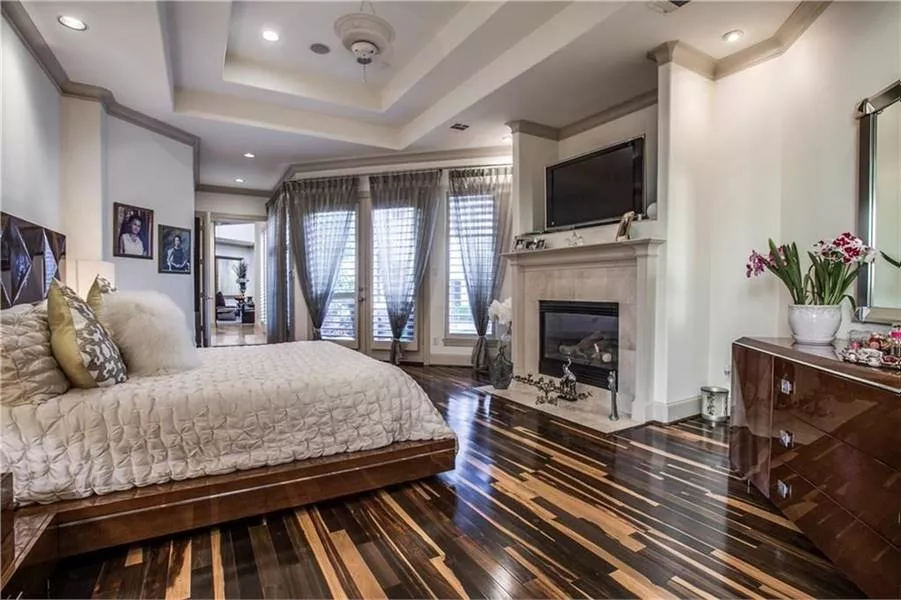

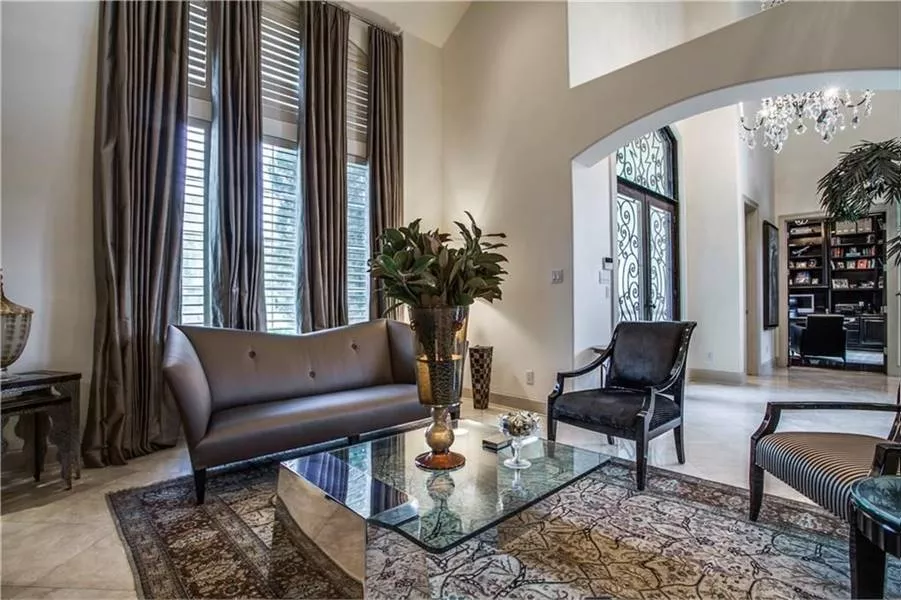

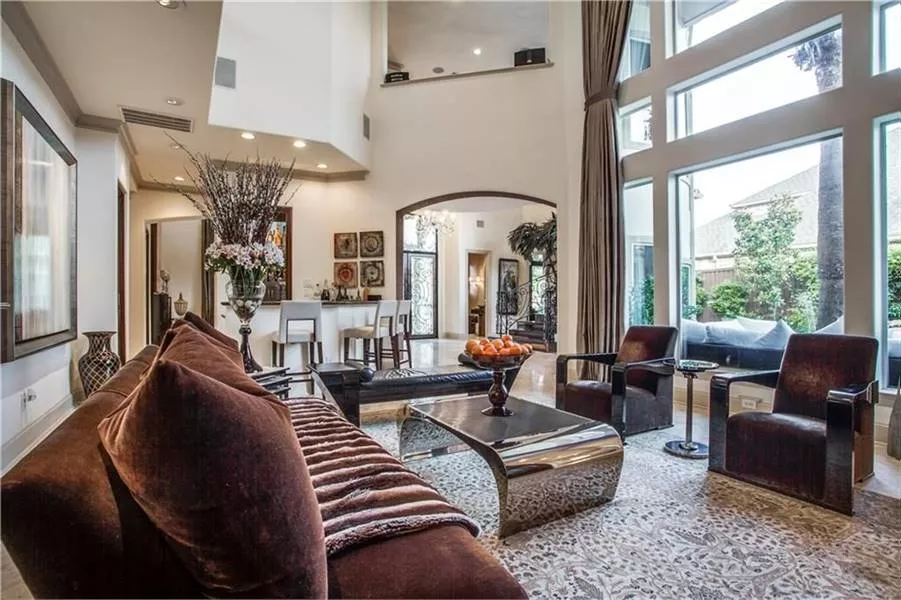

A beautiful Mediterranean vibe encompasses this coastal-inspired home. Modeled after some of the world’s best Spanish-style estates, this 4,652 square foot plan is like something that you’d find in Miami. And just like the Miami homes on television, the 3 bed 4.5 bath design is super luxurious. Take in all that it has to offer! From the expansive main level which features a spiral staircase along with a private study and an open living room, dining room and huge family room with the kitchen nearby, to the master suite with its ample areas for relaxation, this home seems to have it all. The main floor even has a bar along with a home gym and garage parking for up to 3 cars! Finally, the second level houses the other bedroom suites along with a game room and plenty of storage for toys and games.

FEATURES & DETAILS

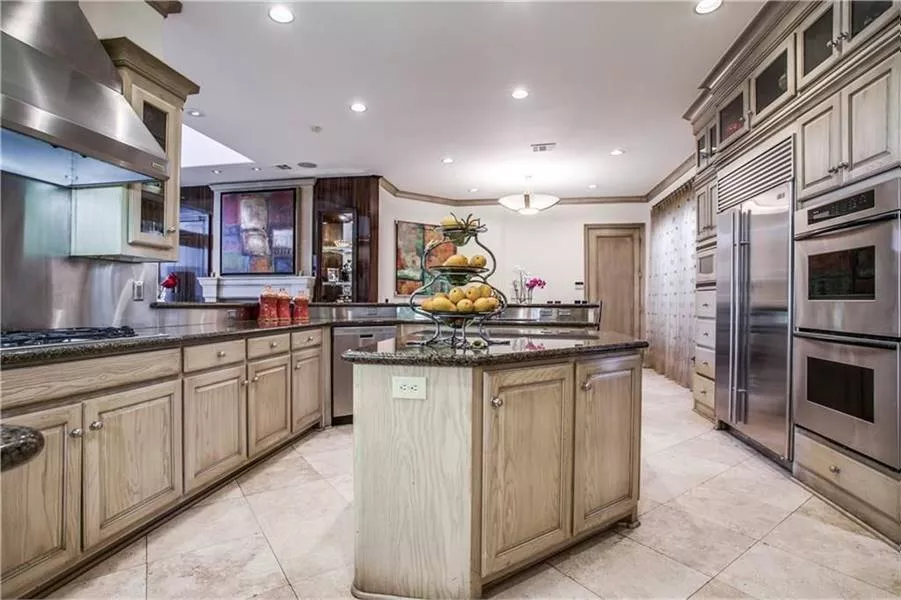

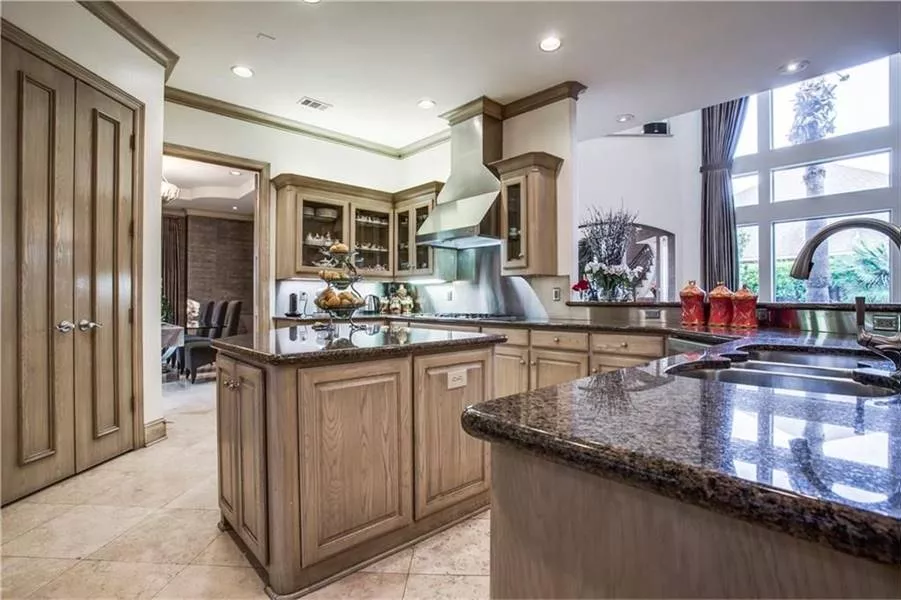

Kitchen features

Kitchen Island
Nook / Breakfast Area
Peninsula / Eating Bar
U-Shaped
Walk-in Pantry

Bedroom features

Double Vanity Sink
Primary Bdrm Main Floor
Separate Tub and Shower
Walk-in Closet

Additional features

2 Story Volume
Dining Room
Family Room
Fireplace
Foyer
Home Office
Laundry 1st Fl
Rec Room
Vaulted Foyer

Garage Location

Rear

Garage Options

Attached
Rear-entry

5,939 Ft

Total Structure

4,652 Ft

Total Heated

3,480 Ft

1st Floor

923 Ft

2nd Floor

Bedrooms

4.5

Bathrooms

Garage

Stories

67'

Width

93'

Depth

35'

Height

10' 0"

Main Floor Ceiling

9' 0"

Upper Floor Ceiling

2x4 or 2x6

Framing

Stick

Roof Framing

Primary Roof Pitch

Single

Dwelling Number

Unheated Living Space

780 Ft

Garage

Exterior Styles

Contemporary

Mediterranean

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$1,485

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,485

$1,665

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,665

$2,230

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$2,230

Need To Reverse Plan? (Optional)

$175

Readable Reverse

Reverse house plans with readable text and dimensions

$175

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
