House Plan 5320: Chilmark

Its never too late to have a happy childhood - or the exact home you want. This one includes many thoughtful elements that add up to comfortable living: formal and informal spaces, an island kitchen with nook, a vaulted den, a three-car garage and bonus space on the upper level.  Read more >

House Plan Details

Sq. Ft.
2,538
Beds
3
Baths
2.1
Stories
2
Garages
3
Width
52' 0"
Depth
45' 0"
1st Floor
1,342
2nd Floor
1,196
Bonus
227
Garage
668
Select Plan Package
PDF Files - Single Build
$1241
Select Foundation Options
$0
Crawlspace
$0
Optional Add-Ons
Subtotal: $1241

PLAN IMAGES

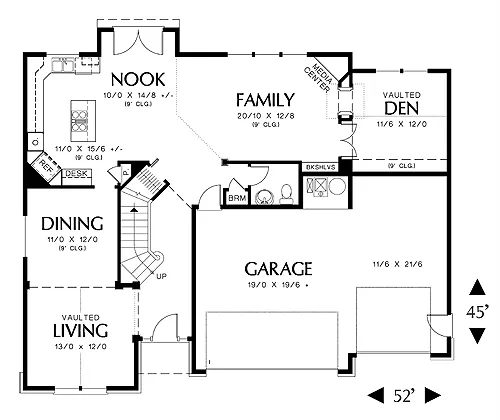

First Floor Plan

First Floor Plan
© copyright by designer

Plan Details

Basic Information
Bedrooms: 3
Bathrooms: 2.1
Garage: 3
Stories: 2
Exterior Style
Craftsman
European
Traditional
Dimensions
Width: 52' 0"
Height: 32' 0"
Depth: 45' 0"
Heated Living Space
Total Sq. Ft: 2,538
1st Floor: 1,342
2nd Floor: 1,196
Bonus: 227
Unheated Living Space
Garage: 668
Ceiling
Upper Ceiling Ft: 9' 1"
Main Ceiling Ft: 9' 1"
Framing Information
Framing: 2x6
Roof Framing: Truss
Bedroom Features
Double Vanity Sink
His and Hers Master Closets
Master Bdrm Upstairs
Separate Tub and Shower
Split Bedrooms
Walk-in Closet
Kitchen Features
Kitchen Island
Nook / Breakfast Area
Additional Room Features
2 Story Volume
Bonus Room
Dining Room
Family Room
Formal LR
Foyer
Home Office
Laundry 2nd Fl
Open Floor Plan
Vaulted Ceilings
Garage Location
Front
Garage Features
Attached
Lot Features
Roof Pitch
Primary: 10/12
