House Plan 5830: Chadwick

A perfect little cottage, but not so little! Welcome home to this spacious living room with built in bookcases beside the fireplace. Enjoy all of the special places to get away, the master bedroom balcony or the study at the top of the stairs or the bed alcove in the guest room.  Read more >

House Plan Details

Sq. Ft.
2,880
Beds
4
Baths
3.1
Stories
2
Garages
2
Width
38' 0"
Depth
76' 0"
Select Plan Package
PDF File
$1150
Select Foundation Options
$0
Walk-Out Basement Standar...
$0
Optional Add-Ons
Subtotal: $0

PLAN IMAGES

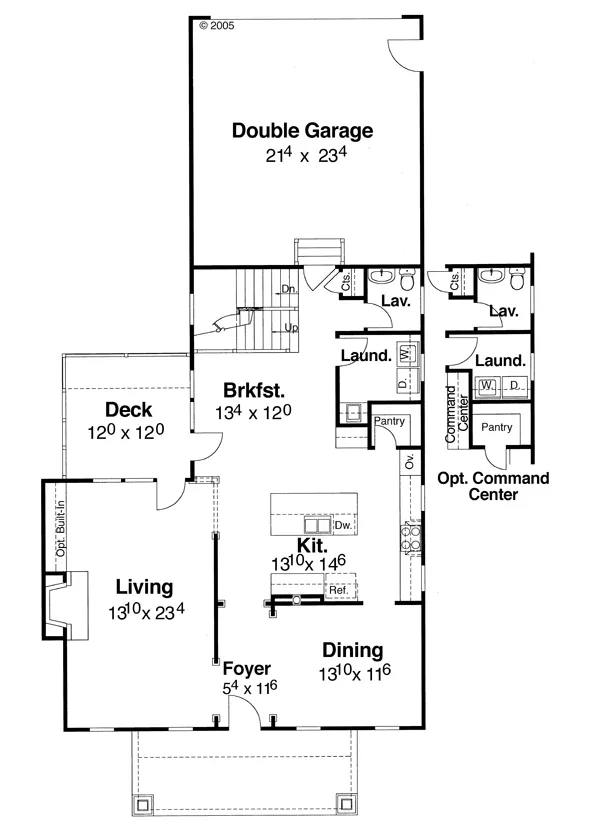

First Floor

First Floor
© copyright by designer
DETAILS
Total SQ. FT.:
2,880
1st Floor SQ. FT.:
1,294
2nd Floor SQ. FT.:
1,220

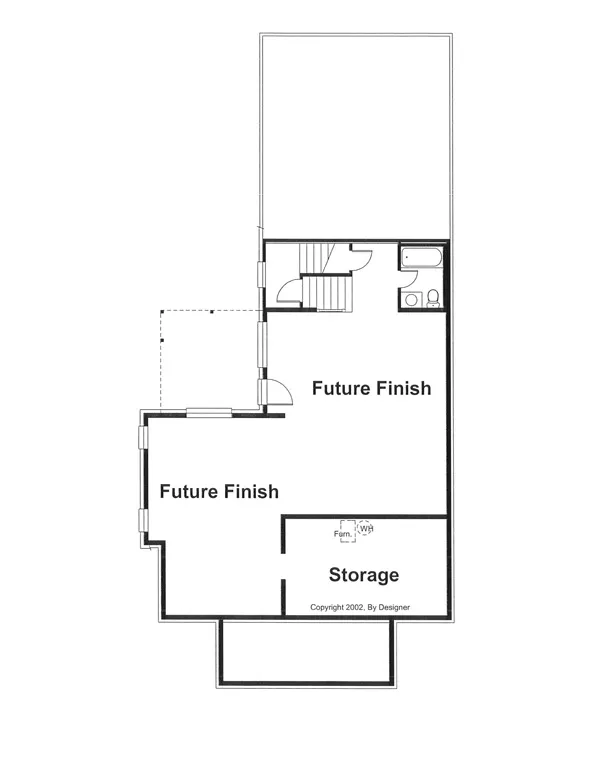

Lower:
1,294
Bonus:
366
Bedrooms:
4
Bathrooms:
3.1
Garage:
2
Stories:
2
Main Ceiling Height:
10'
Upper Ceiling Height:
9'
Framing:
2x4
Roof Framing:
Stick
Roof Pitch:
Primary: 12/12
Secondary: 4/12
Porch: 2/12
Width:
38' 0"
Height:
29' 4"
Depth:
76' 0"
Exterior Styles:
Bungalow
Cottage
Craftsman
Unheated Living Space:
Garage: 528
Porch: 192
Deck: 144
HOME FEATURES
Bedroom Features:
Double Vanity Sink
Guest Suite
Master Bdrm Upstairs
Separate Tub and Shower
Walk-in Closet
Kitchen Features:
Kitchen Island
Nook / Breakfast Area
Walk-in Pantry
Additonal Features:
Bonus Room
Dining Room
Fireplace
Foyer
Great Room
Home Office
Laundry 1st Fl
Open Floor Plan
Vaulted Ceilings
Garage Features:
Attached
Rear-entry
Garage Location:
Rear
Lot Features:
Suited for narrow lot
Suited for sloping lot
