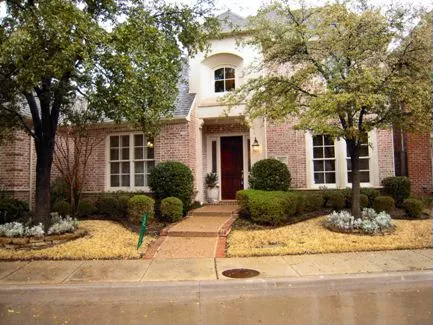

Front 2
Front 3
Stair Well

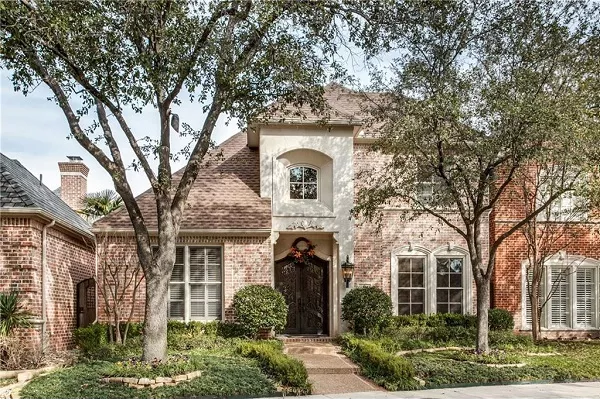

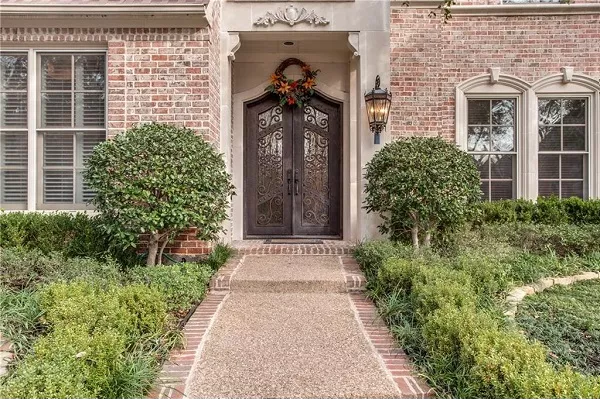

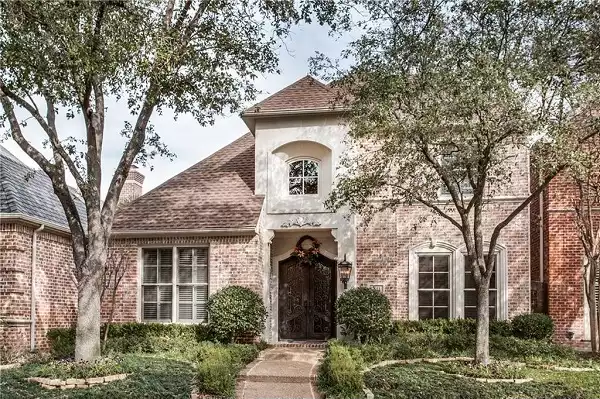

Front

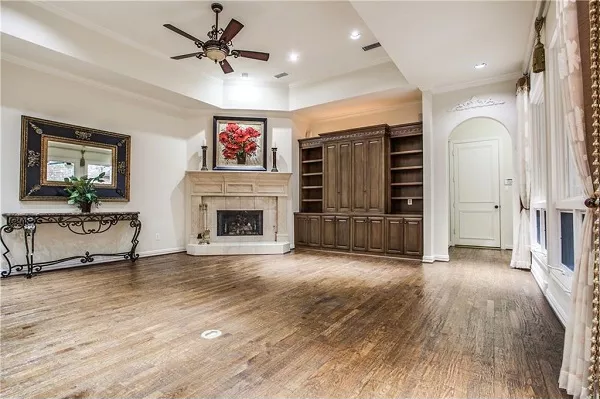

Family 1
Family 3
Family 2

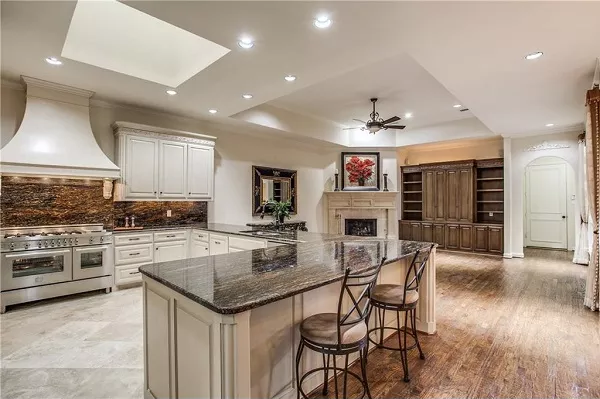

Kitchen
Entry 1

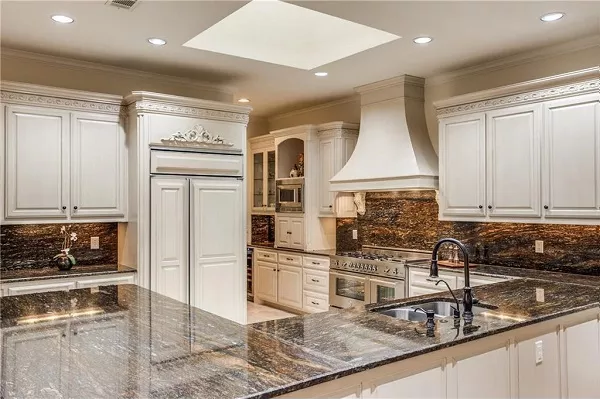

Kitchen 2
Foyer 1
Kitchen 3

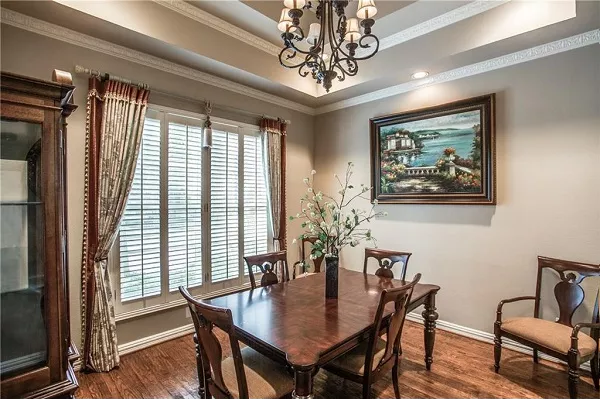

Dining 1
Study 1
Music Room 1

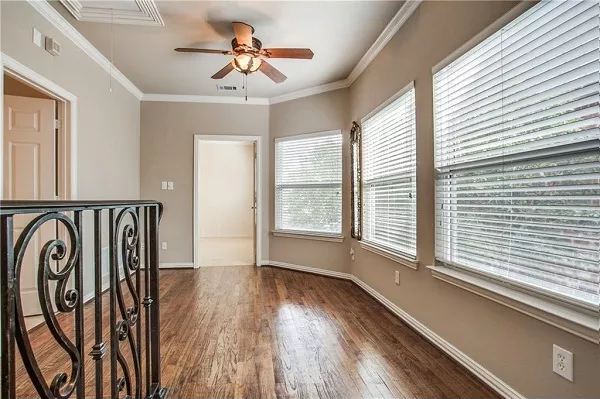

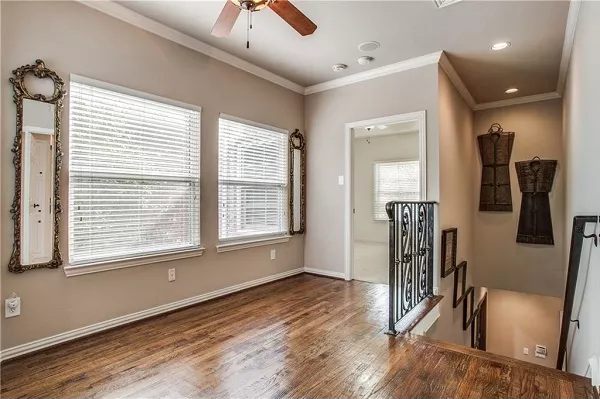

Loft 1
Loft 2

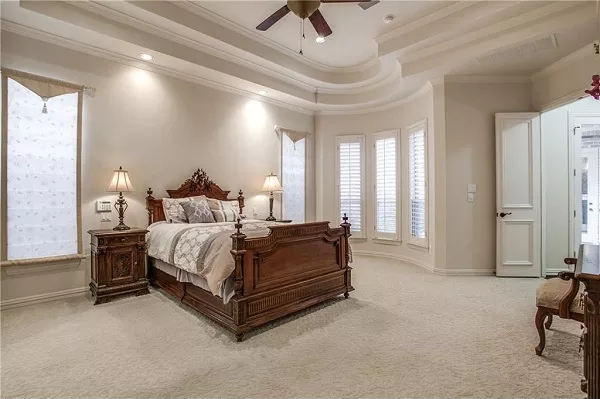

Master Suite 1

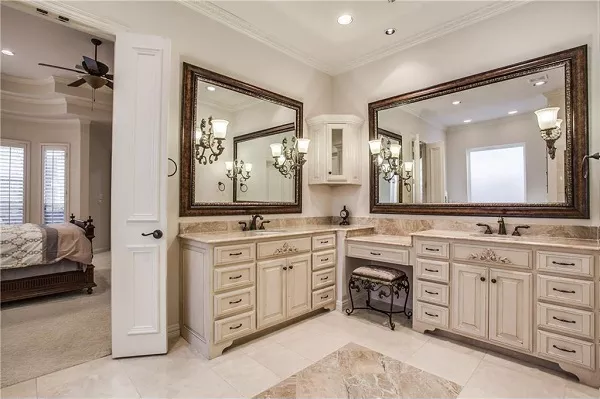

Master Bath 1
Master Bath 2

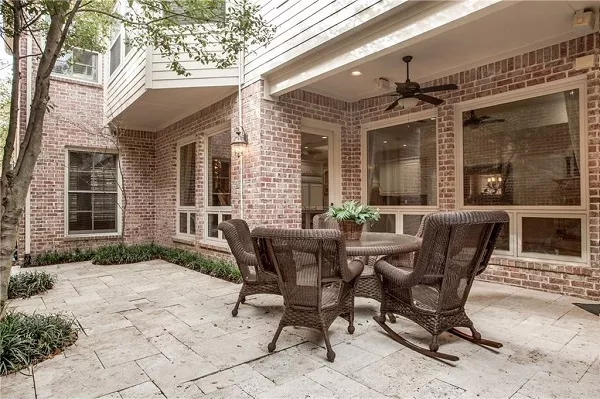

Patio 1
Patio 2
First Floor

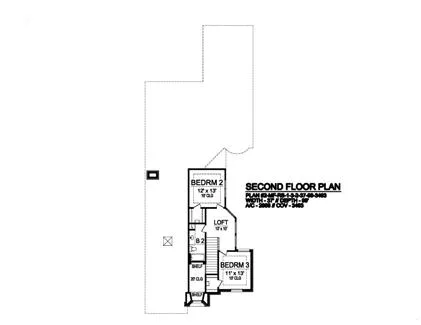

Second Floor
© copyright by designer
Mouse over photo to pause

House Plan 5470: Castle Pines

This Texas-inspired luxury house plan is perfect for a narrow, zero lot line. The front of this luxury home plan is the main family living area. A two story foyer is flanked by the quiet study with built-ins and the trey ceiling elegant dining room.  Read more >

House Plan Details

Sq. Ft.
2,866
Beds
3
Baths
2.5
Stories
2
Garages
2
Width
37' 0"
Depth
99' 0"
Select Plan Package
Plan PDF Package
$1075
Select Foundation Options
$0
Slab
$0
Optional Add-Ons
Subtotal: $0
If a foundation or optional add-on is not listed, please live chat, email or call for availability.

PLAN IMAGES

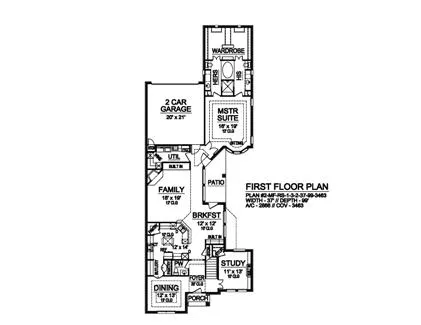

First Floor

First Floor
© copyright by designer
DETAILS
Total SQ. FT.:
2,866
1st Floor SQ. FT.:
2,245
2nd Floor SQ. FT.:
621
Bedrooms:
3
Bathrooms:
2.5
Garage:
2
Stories:
2
Main Ceiling Height:
10'
Upper Ceiling Height:
9'
Framing:
2x4
Roof Framing:
Stick
Roof Pitch:
Primary: 12
Width:
37' 0"
Depth:
99' 0"
Height:
32' 0"
Exterior Styles:
European
Traditional
Unheated Living Space:
Garage: 455
HOME FEATURES
Bedroom Features:
Master Bdrm Main Floor
Sitting Area
Kitchen Features:
Kitchen Island
Nook / Breakfast Area
Additional Features:
Dining Room
Family Room
Fireplace
Foyer
Garage Features:
Attached
Garage Location:
Rear
Lot Features:

Our Guarantee

  • Only the highest quality plans
  • Int’l Residential Code Compliant
  • Full structural details on all plans
  • Best plan price guarantee
  • Free modification Estimates
  • Builder-ready construction drawings
  • Expert advice from leading designers
  • PDFs Now!™ plans delivered in minutes
  • 100% satisfaction guarantee
  • Free Home Building Organizer

Have questions about this plan?
