Sq Ft
1,676 FT²

Beds
3

Baths
2.5

Stories
2

Garage
1

Depth
27' 6"

Width
40'

From
$935.00

Front Photo

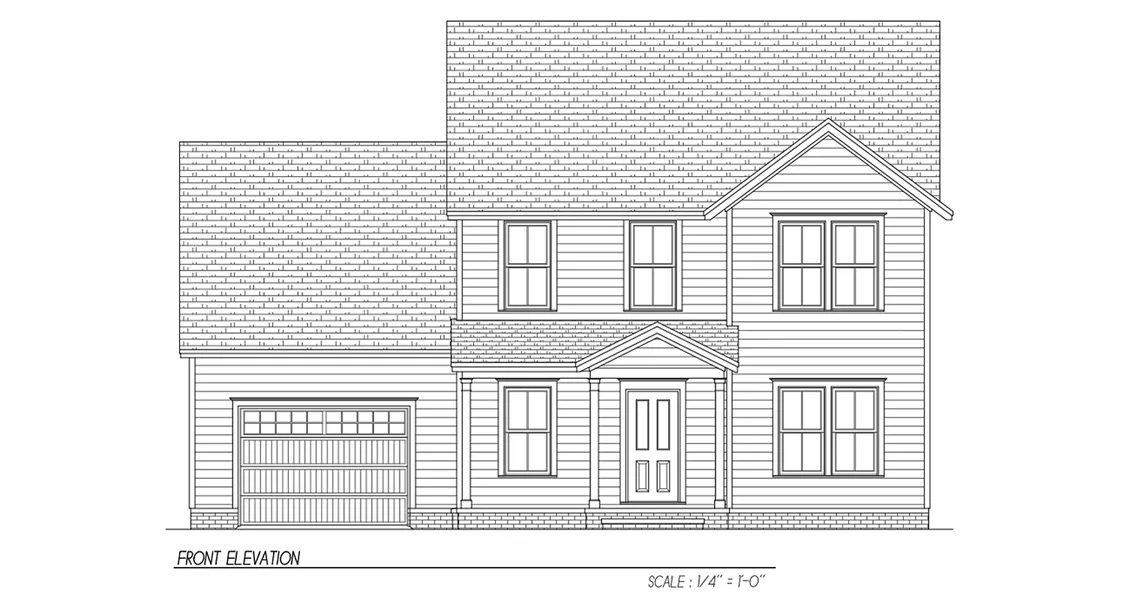

Front Elevation

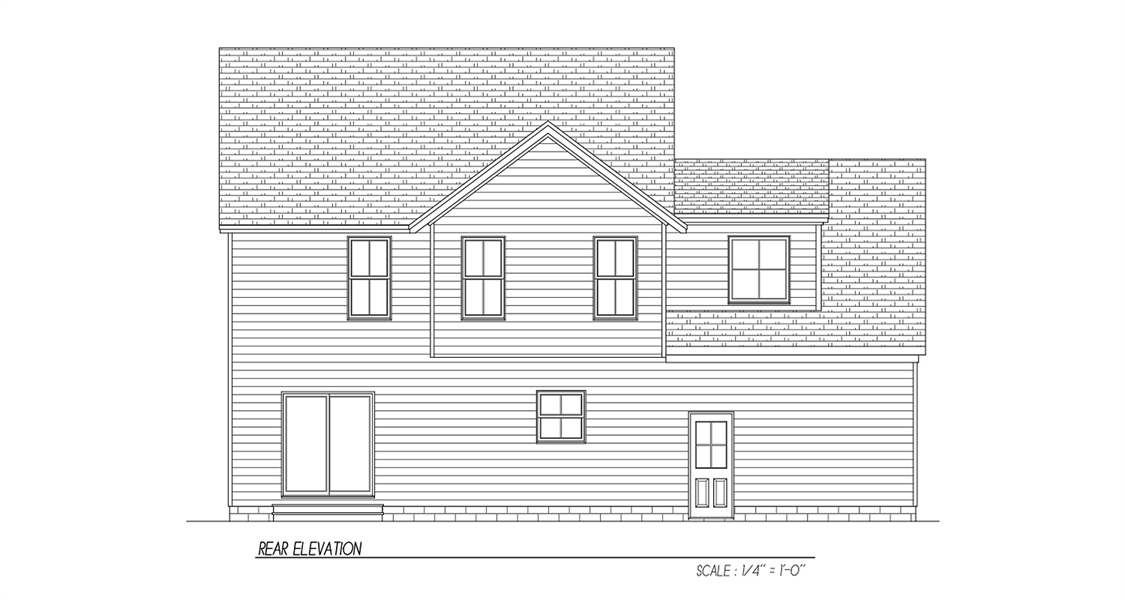

Rear Elevation

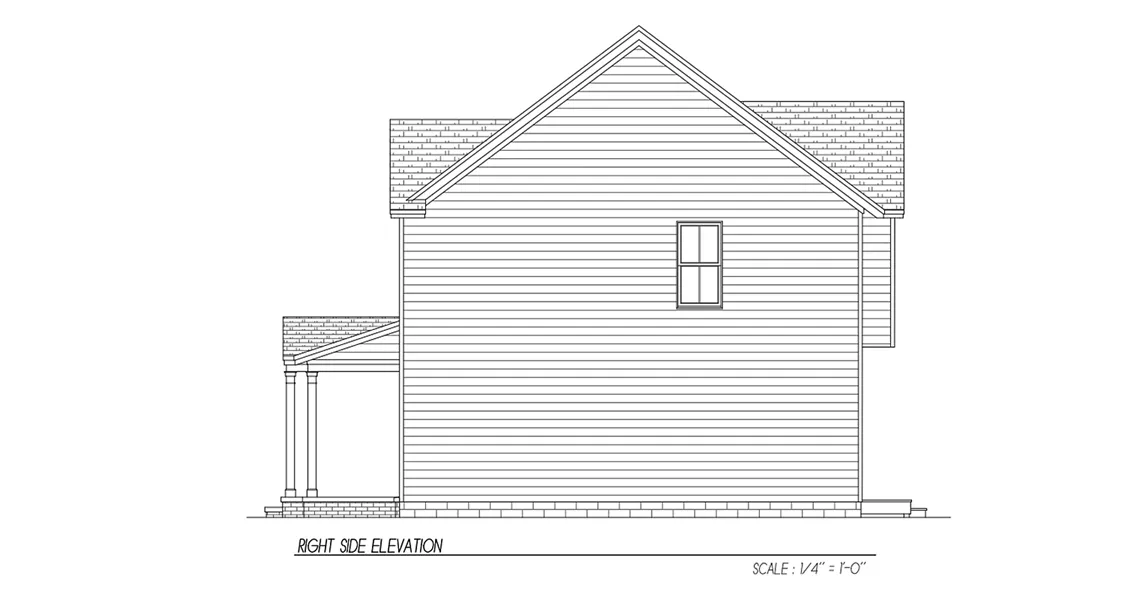

Right Side Elevation

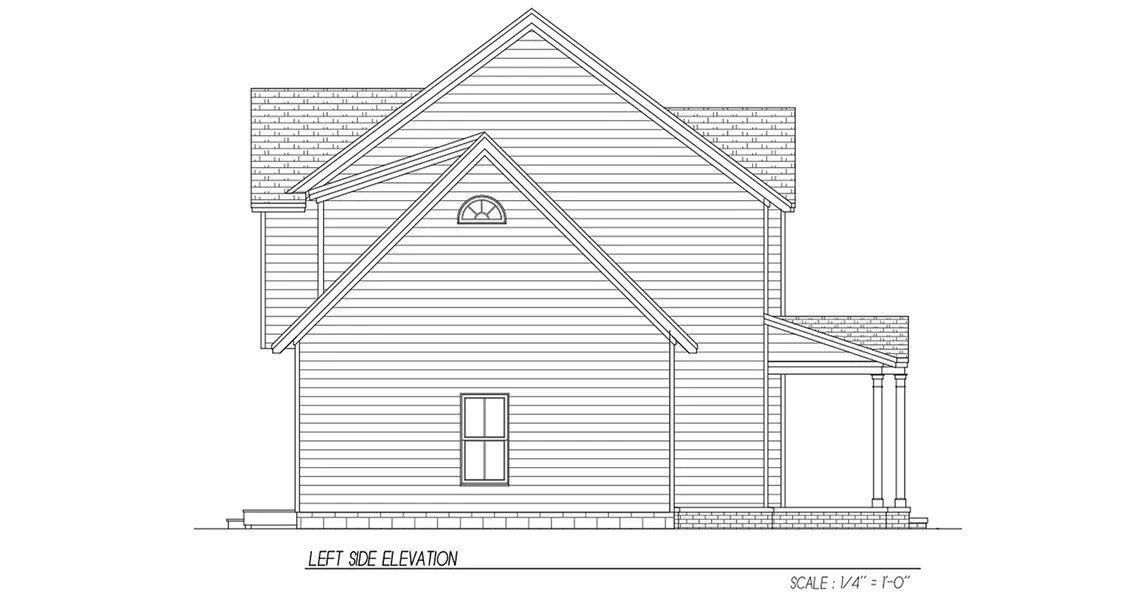

Left Side Elevation

View All 5 Images | Photographs may reflect modified home

Sq Ft

1,676 FT²

From

$935.00

Beds

Baths

2.5

Stories

Garage

Depth

27' 6"

Width

40'

Modify

Cost Estimator

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

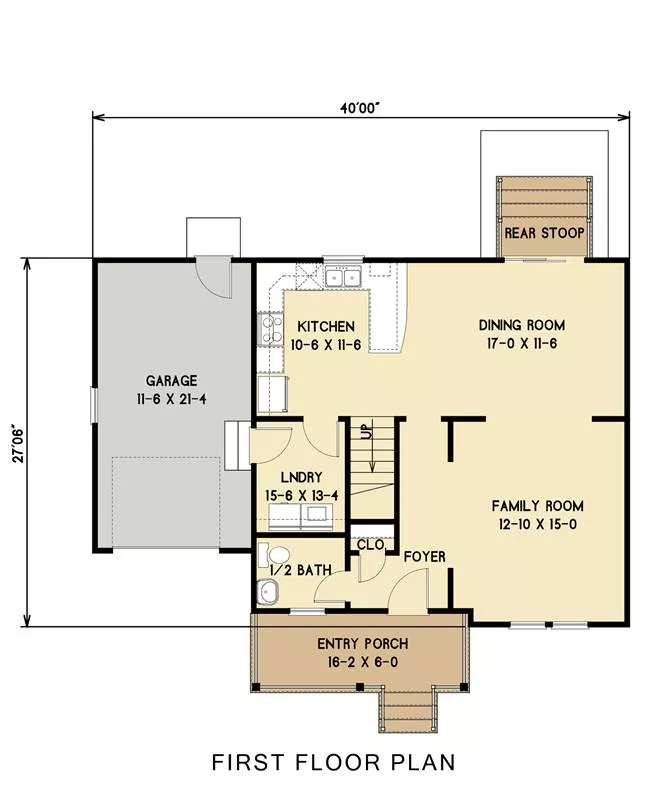

1st Floor

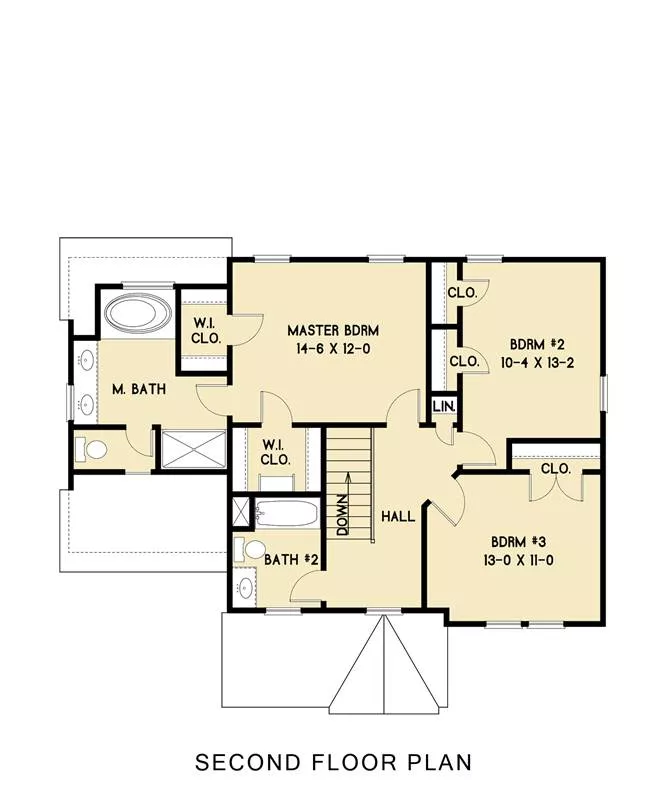

2nd Floor

1st Floor

2nd Floor

About This Plan

Adaptable and completely comfortable, this traditional 2-story home is a beautiful and inexpensive plan, full of great space. 1,676 square feet provides an open layout, including 3 beds and 2.5 baths and even an attached garage with added storage. The first floor is conveniently open, offering you a flexible area to make your own. Here you’ll find the peninsula kitchen alongside the dining room and large living room. A convenient first floor laundry makes for easy chores. Upstairs is where all of the sleeping quarters can be found, including the comfortable master and its impressive en-suite and dual walk-in closets. The other two bedrooms are equally as large and functional, with one having dual closets of its own, a truly convenient design!

FEATURES & DETAILS

Kitchen features

Kitchen Island

Bedroom features

Double Vanity Sink
Primary Bdrm Upstairs
Separate Tub and Shower
Walk-in Closet

Exterior features

Covered Front Porch
Front Porch
Rear Porch

Foundation Options

Crawlspace

Lot Options

Suited for narrow lot

Additional features

Dining Room
Formal LR
Laundry 1st Fl
Open Floor Plan

Garage Options

Attached

1,773 Ft

Total Structure

1,676 Ft

Total Heated

758 Ft

1st Floor

918 Ft

2nd Floor

Bedrooms

2.5

Bathrooms

Garage

Stories

40' 0"

Width

27' 6"

Depth

30' 6"

Height

9' 0"

Main Floor Ceiling

8' 0"

Upper Floor Ceiling

2x4

Framing

Stick

Roof Framing

9/12

Primary Roof Pitch

12/12

Secondary Roof Pitch

4/12

Dormer Roof Pitch

4/12

Porch Roof Pitch

Single

Dwelling Number

Unheated Living Space

260 Ft

Garage

97 Ft

Porch

Exterior Styles

Cape Cod

Craftsman

Farmhouse

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$200

PDF Bid Set

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

$200

$935

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$935

$1,035

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,035

$1,510

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$1,510

Need To Reverse Plan? (Optional)

$150

Readable Reverse

Reverse house plans with readable text and dimensions

$150

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
