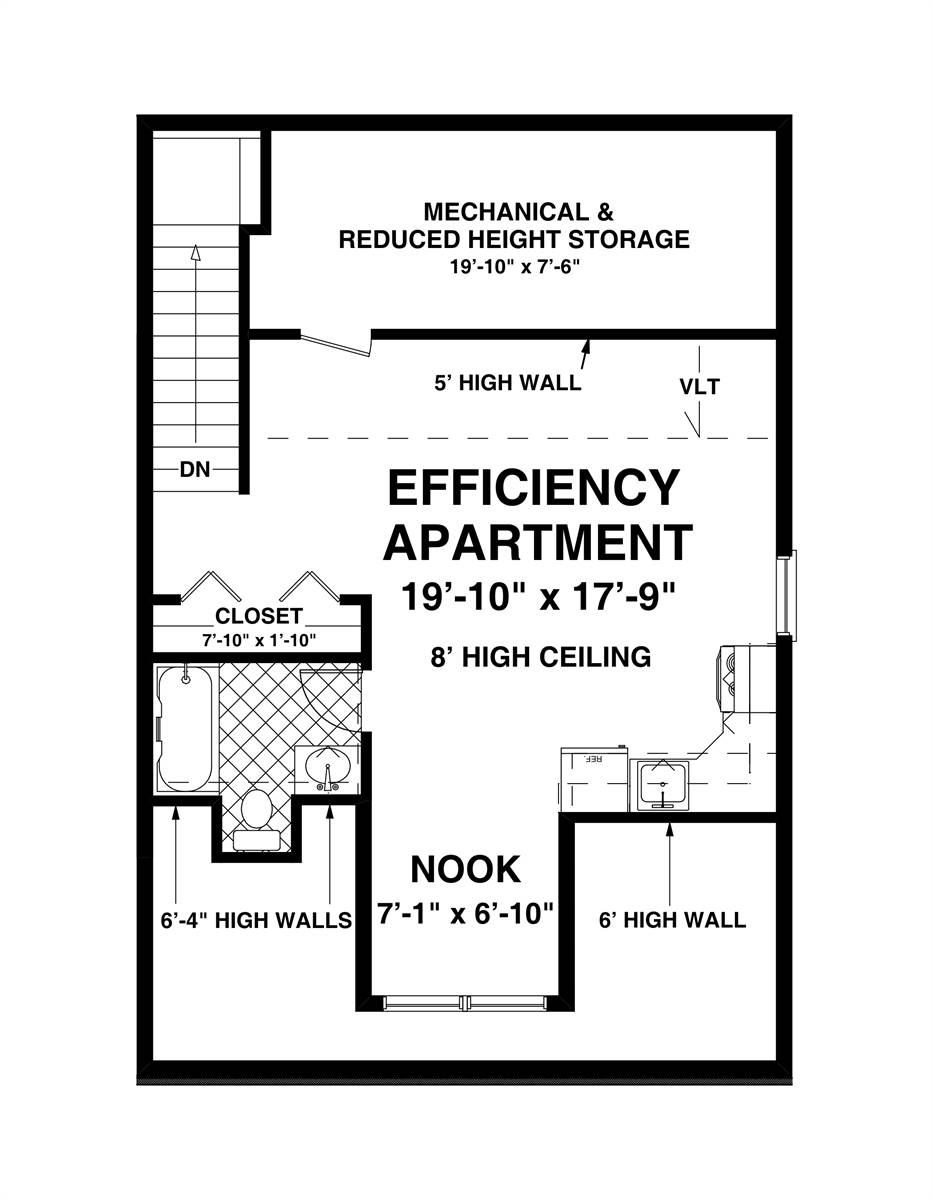

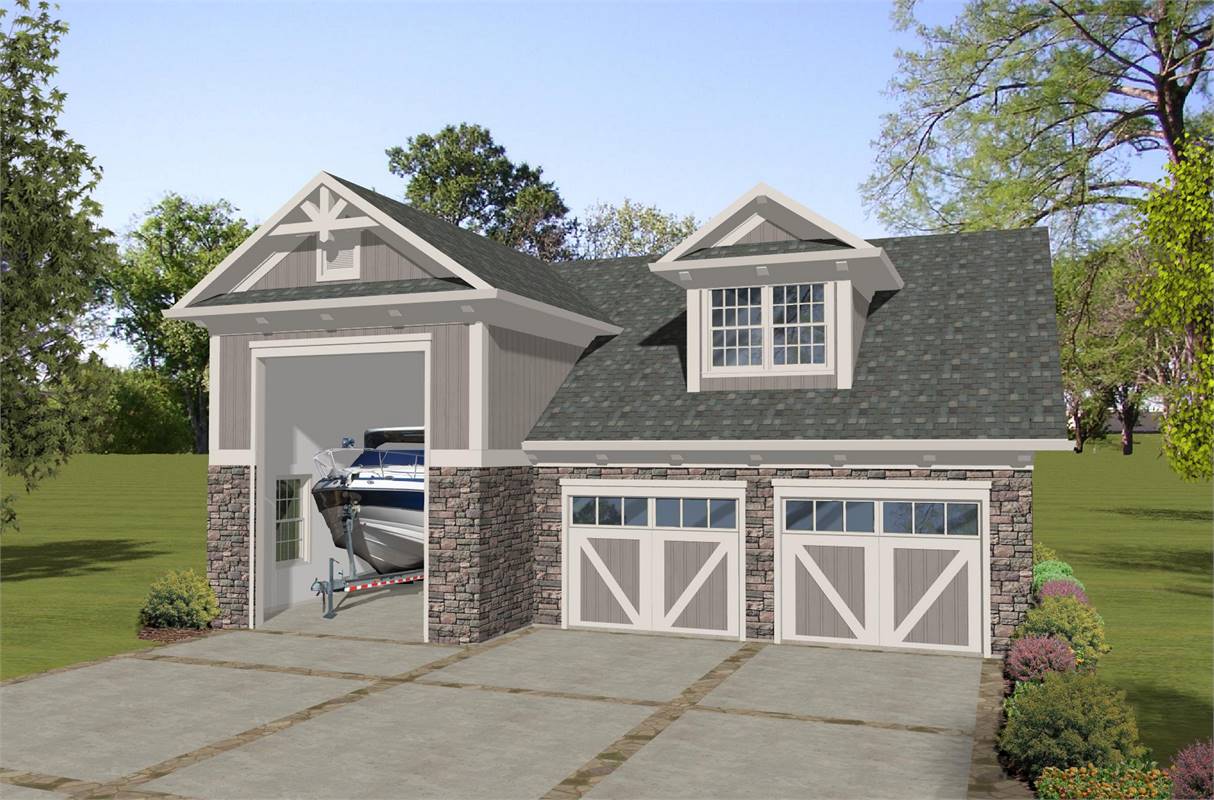

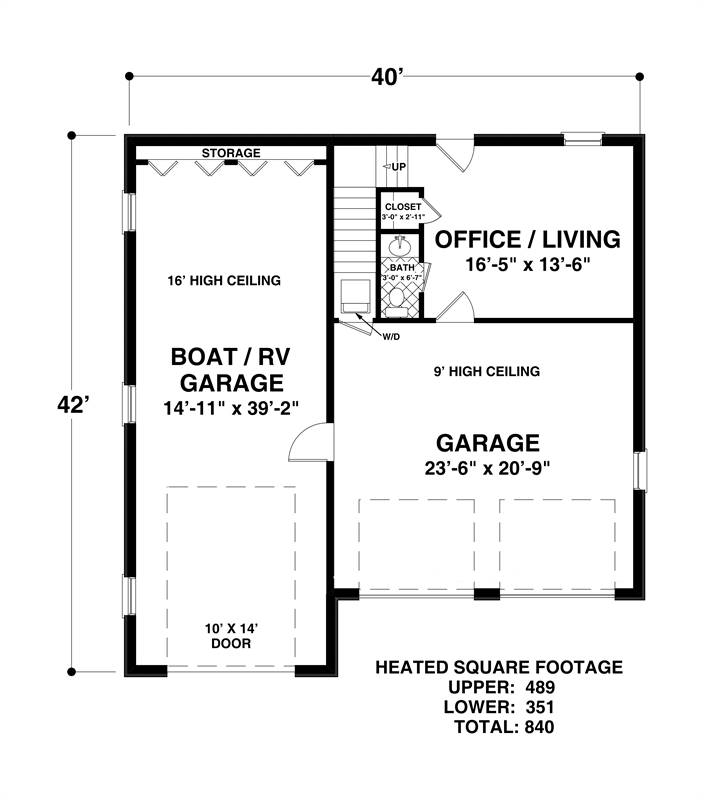

This design offers the best of both worlds! The problem of where to store your RV or boat is solved while providing living space at the same time. This 840 sq.ft. plan features a 16 high ceiling in the Boat/RV garage area and a 10x14 door. Storage space is located in the rear of the garage behind twin bi-fold doors. Garage space is also provided to hold two additional vehicles. Also on this level is a spacious office area with a half bath. This area could also be living space. A laundry closet off the garage holds a stackable washer/dryer. Upstairs is an efficiency apartment with a kitchen area, eating nook, a bathroom and a closet. Mechanical and storage space is also located on this level. The stone and siding Craftsman exterior adds to the charm of this functional space.

FEATURES & DETAILS

Foundation Options

Crawlspace
Slab

Garage Location

Front

Garage Options

Detached
Front-entry
Oversized
RV Garage
With Living Space

840 Ft

Total Heated

351 Ft

1st Floor

489 Ft

2nd Floor

Bedrooms

1.5

Bathrooms

Garage

Stories

40' 0"

Width

42' 0"

Depth

22' 11"

Height

9' 0"

Main Floor Ceiling

8' 0"

Upper Floor Ceiling

2x6

Framing

Stick

Roof Framing

Garage

Dwelling Number

Unheated Living Space

Exterior Styles

Country

Craftsman

Collections

ADU

Exclusive

Plan Package Options

Important info before you buy

Select Plan Package

$745

PDF Bid Set
PDFs NOW!™

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

$745

$1,045

PDF Single Build
PDFs NOW!™

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,045

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,045

$1,195

8 Printed Sets

Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

$1,195

$1,495

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$1,495

Need To Reverse Plan? (Optional)

$295

Readable Reverse

Reverse house plans with readable text and dimensions

$295

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
