Sq Ft
838 FT²

Beds
1

Baths
1

Stories
2

Garage
3

Depth
24'

Width
42'
On Sale
$836.00
$1,045.00
© copyright by designer
View All 2 Images | Photographs may reflect modified home
Sq Ft
838 FT²
Beds
1
Baths
1
Stories
2
Garage
3
Depth
24'
Width
42'

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

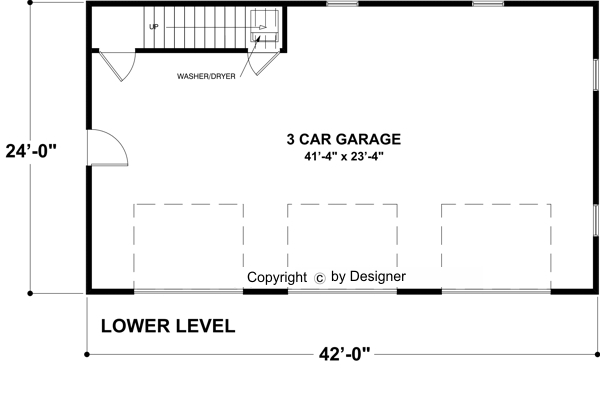

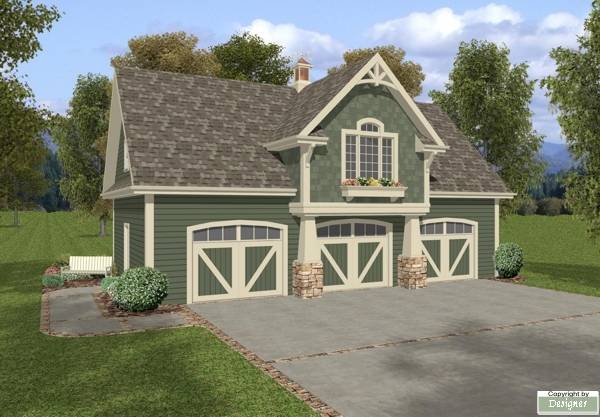

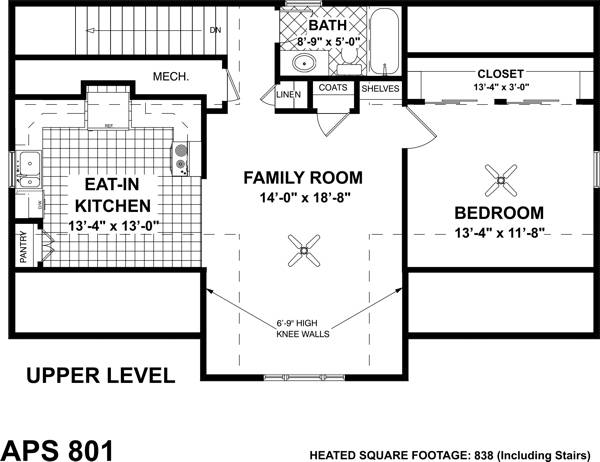

The Belmont Carriage House is a 3 car garage plan featuring 838 sq. ft. of living space above. The craftsman styling is highlighted by stacked stone accents. In the efficient living quarters are a spacious family room, an eat-in kitchen, a bedroom with a wide closet and a bathroom. Extra storage is found in a coat closet, linen closet and kitchen pantry. Laundry appliances are located beneath the stairs on the garage level. This plan would be an ideal temporary residence during construction of your primary home. Or, use it as an apartment for in-laws, a nanny, college students, etc.

See All Plan Options


FEATURES & DETAILS

Exterior features
No Porch
Foundation Options
Slab
Lot Options
Suited for narrow lot
Additional features
Family Room
Garage Location
Front
Garage Options
Attached
Front-entry
1,792 Ft
2
Total Structure
838 Ft
2
Total Heated
838 Ft
2
2nd Floor
1
Bedrooms
1
Bathrooms
3
Garage
2
Stories
42' 0"
Width
24' 0"
Depth
23' 9"
Height
8'-0"' 0"
Main Floor Ceiling
9'-0"' 0"
Upper Floor Ceiling
2x4
Framing
Stick
Roof Framing
12/12
Primary Roof Pitch
12/12
Gable Roof Pitch
Garage
Dwelling Number
None
Bonus Access

Unheated Living Space
954 Ft
2
Garage
Exterior Styles
Collections


Plan Package Options

 Select Plan Package
Sale: $596
PDF Bid Set
$745

PDFs NOW!™

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

Sale: $596
Sale: $836
PDF Single Build
$1,045

PDFs NOW!™

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

Sale: $836
Sale: $836
5 Printed Sets
$1,045

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

Sale: $836
Sale: $956
8 Printed Sets
$1,195

Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

Sale: $956
Sale: $1,196
CAD Single Build
$1,495

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

Sale: $1,196
 Need To Reverse Plan? (Optional)
$295
Readable Reverse

Reverse house plans with readable text and dimensions

$295
  Select Foundation Option
  Add-Ons (Optional)
INCLUDED WITH YOUR PURCHASE

Free Ground shipping in the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your plan

Home Building & Product Ideas Organizer

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.

BEST PRICE GUARANTEE

find the same house plan (modifications included!) and package for less on another site, show us the URL and we'll give you the difference plus an additional 5% back.

100% SATISFACTION GUARANTEE

We offer a one-time, 14-day exchange policy for unused, non-electronic plan packages in the event you aren't satisfied with your first selection.

Customer Reviews of House Plan 7125
10/5/2012
Thomas of Pennsauken, NJ
Customer Review:
The house plans were drawn very well and provided additional information that made it easy to make minor changes to the floor plan. Customer service was very good!
