Builder Preferred 3 Bedroom Duplex House Plan 7862

Simple designs sometimes make for the most memorable homes, as is seen with this contemporary Craftsman duplex. Both units of this plan have their own 1,199 square feet, which offers 3 bedrooms and 1.5 bathrooms. Separate private entryways both give way to reveal identical layouts, including a spaciously joined living room, dining  room, and peninsula kitchen.  Read more >

House Plan Details

Total
Sq. Ft.
2,398
Per Unit
Sq. Ft.
1,199
Beds
3
Baths
1.5
Stories
2
Garages
0
Width
40' 0"
Depth
29' 8"
Select Plan Package
5 sets
$1119
Select Foundation Options
$0
Full Unfinished Basement ...
$0
Optional Add-Ons
Subtotal: $0
Please allow a 5-8 day for delivery of this plan. Please check our PDFs NOW collection for plans that can be downloaded and received immediately or live chat us to help you find a similar plan available now.
If a foundation or optional add-on is not listed, please live chat, email or call for availability.

PLAN IMAGES

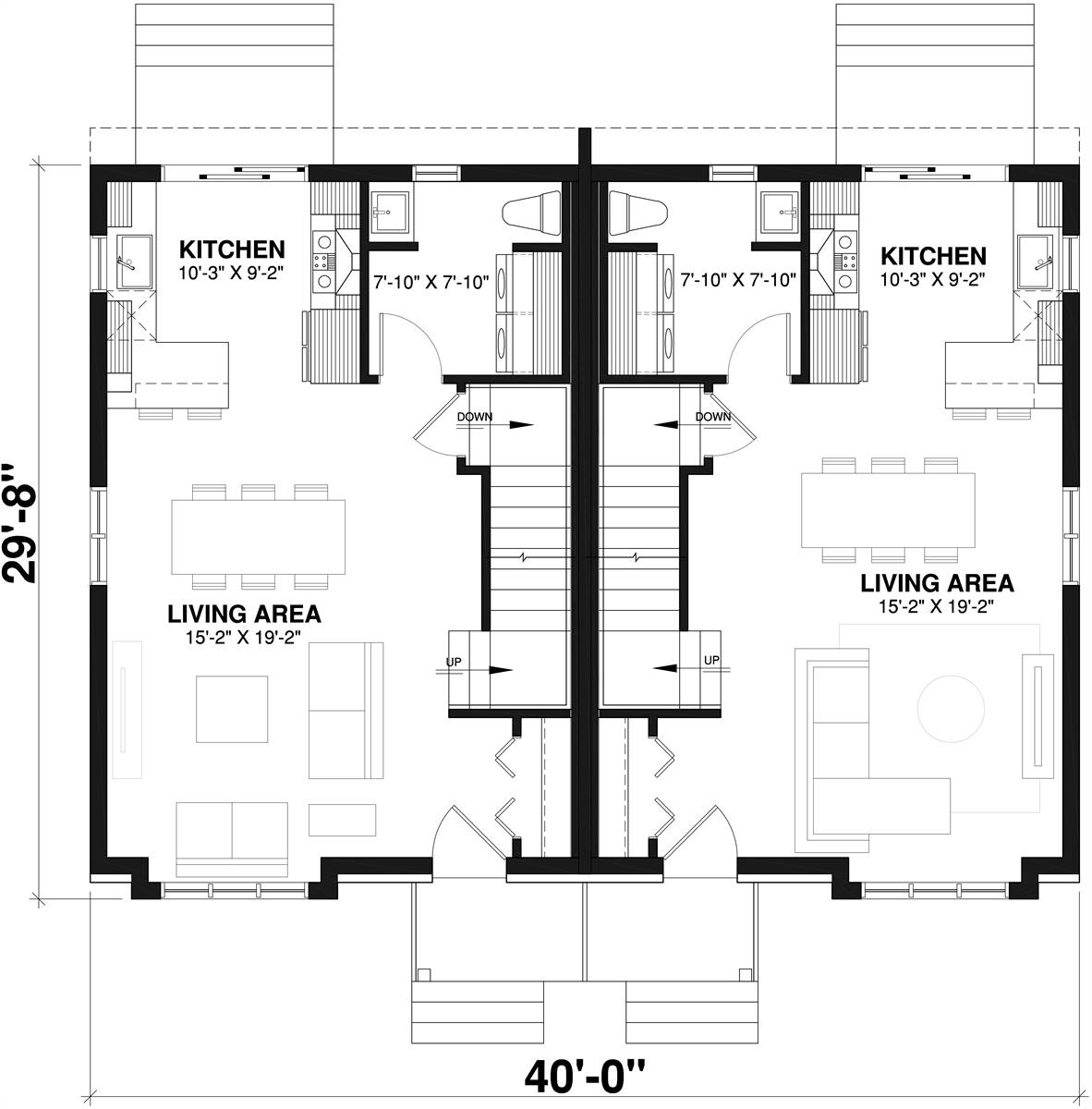

1st Floor Plan

1st Floor Plan
© copyright by designer
DETAILS
Total Structure SQ. FT.:
2,398
Unit Total SQ. FT.:
1,199
1st Floor SQ. FT.:
1,172
2nd Floor SQ. FT.:
1,226
Lower:
1,172
Bedrooms:
3
Bathrooms:
1.5
Garage:
0
Stories:
2
Main Ceiling Height:
8'
Upper Ceiling Height:
8'
Framing:
2x6
Roof Framing:
Truss
Roof Pitch:
Primary: 6/12
Secondary: 6/12
Width:
40' 0"
Depth:
29' 8"
Height:
27' 8"
Exterior Styles:
Contemporary
Craftsman
Lake
Unheated Living Space:
HOME FEATURES
Bedroom Features:
His and Hers Master Closets
Master Bdrm Upstairs
Sitting Area
Walk-in Closet
Kitchen Features:
Peninsula / Eating Bar
Additional Features:
Family Room
Laundry 1st Fl
Open Floor Plan
Storage Space
Unfinished Space
Garage Features:
None
Garage Location:
None
Lot Features:
