House Plan 8890:

The double door entry invites buyers into this split plan ranch. The living areas are separated allowing for privacy. The kitchen and its breakfast bar spill into the bright and airy family room making this area the hub of the house.  Read more >
See Architect Preferred Products For This Plan >

House Plan Details

Sq. Ft.
1,560
Beds
3
Baths
2.0
Stories
1
Garages
2
Width
48' 8"
Depth
45' 0"
1st Floor
1,560
Garage
375
Patio
100
Customize this Home Plan
Estimate Cost to Build
Free Cost Estimator >
For assistance, email, live chat, or call us at 866-214-2242
Select Plan Package
FIVE SETS OF BONDPRINTS
$770
Select Foundation Options
$0
Slab
$0
Optional Add-Ons
Subtotal: $600
SEE DETAILED PLAN OPTIONS
What You Should Know Before Buying! >

PLAN IMAGES

Add to Favorites   Save

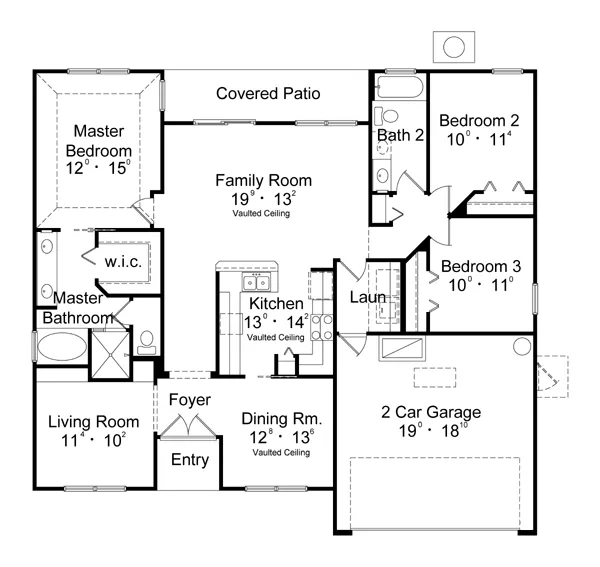

First Floor Plan

First Floor Plan
© copyright by designer

Plan Details

Basic Information
Bedrooms: 3
Bathrooms: 2.0
Garage: 2
Stories: 1
Exterior Style
Mediterranean
Modern
Traditional
Dimensions
Width: 48' 8"
Height: 18' 5"
Depth: 45' 0"
Heated Living Space
Total Sq. Ft: 1,560
1st Floor: 1,560
Unheated Living Space
Garage: 375
Patio: 100
Ceiling
Upper Ceiling Ft:
Main Ceiling Ft:
Framing Information
Framing: 2x4
Roof Framing: Truss
Bedroom Features
Kitchen Features
Additional Room Features
Garage Location
Front
Garage Features
Attached
Lot Features
Suited for narrow lot
Roof Pitch
Primary: 6:12

Our Guarantee

  • Only the highest quality plans
  • Int’l Residential Code Compliant
  • Full structural details on all plans
  • Best plan price guarantee
  • Free modification Estimates
  • Builder-ready construction drawings
  • Expert advice from leading designers
  • PDFs NOW!™ plans delivered in minutes
  • 100% satisfaction guarantee
  • Free Home Building Organizer
