House Plan 5045:

House Plan Details

Sq. Ft.
4,807
Beds
5
Baths
4.1
Stories
2
Garages
3
Width
89' 4"
Depth
87' 0"
Select Plan Package
FIVE SETS OF BONDPRINTS
$1600
Select Foundation Options
$0
Slab (Standard)
$0
Optional Add-Ons
Subtotal: $0
If a foundation or optional add-on is not listed, please live chat, email or call for availability.

PLAN IMAGES

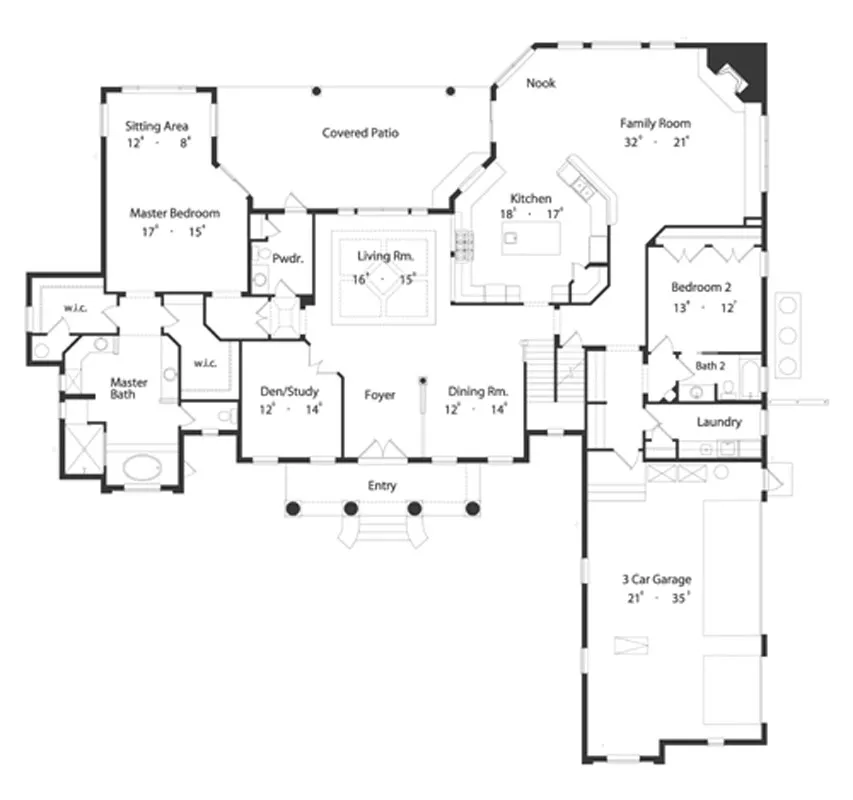

First Floor Plan

First Floor Plan
© copyright by designer
DETAILS
Total SQ. FT.:
4,807
1st Floor SQ. FT.:
3,505
2nd Floor SQ. FT.:
1,302
Bedrooms:
5
Bathrooms:
4.1
Garage:
3
Stories:
2
Main Ceiling Height:
0'
Upper Ceiling Height:
0'
Framing:
8" Block
Roof Framing:
Truss
Roof Pitch:
Width:
89' 4"
Depth:
87' 0"
Height:
0' 0"
Exterior Styles:
Beach
Southern
Traditional
Unheated Living Space:
Garage: 791
HOME FEATURES
Bedroom Features:
Kitchen Features:
Additonal Features:
Garage Features:
Attached
Garage Location:
Side
Lot Features:
