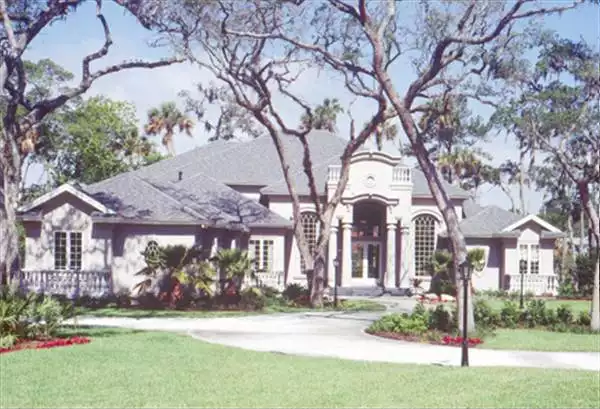

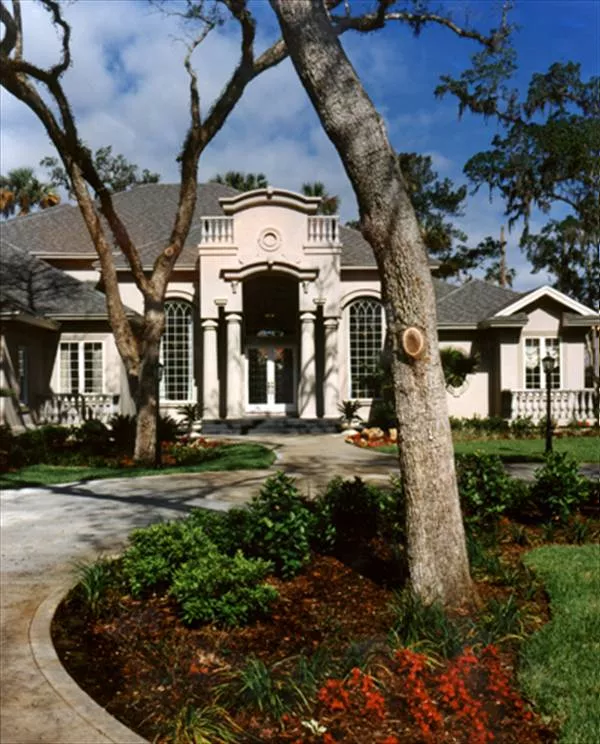

Front Exterior
Front Exterior
Front Rendering

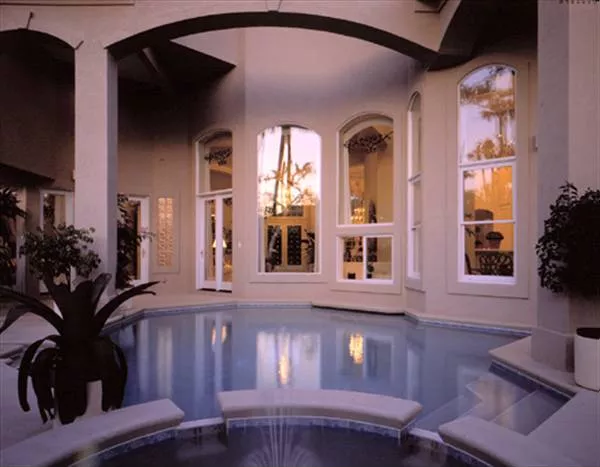

Rear Exterior

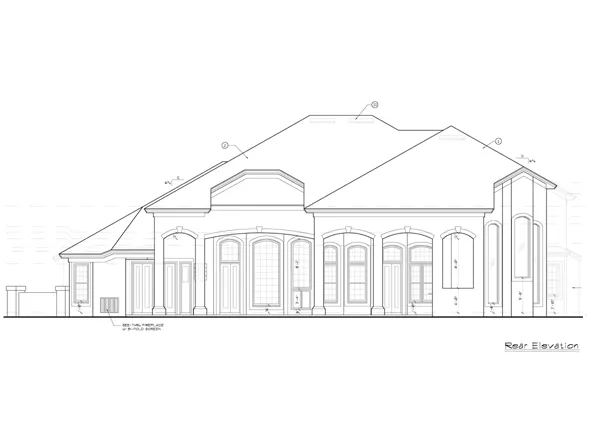

Rear Elevation

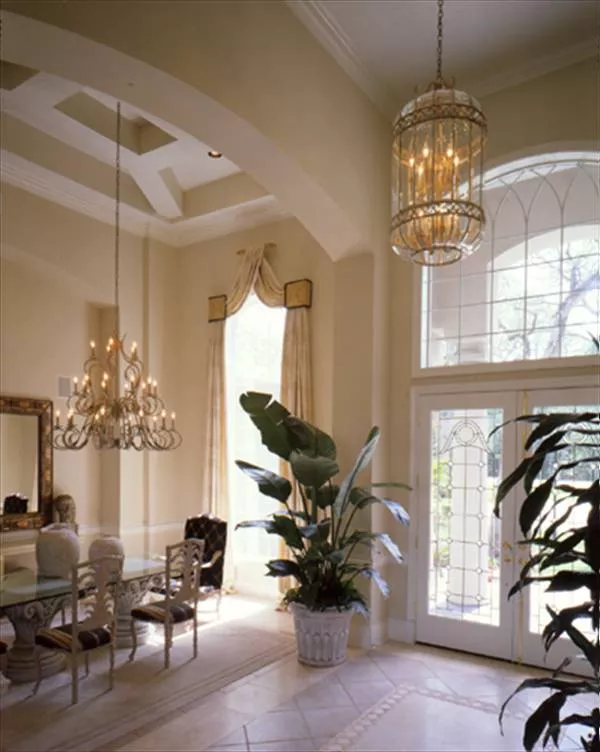

Foyer

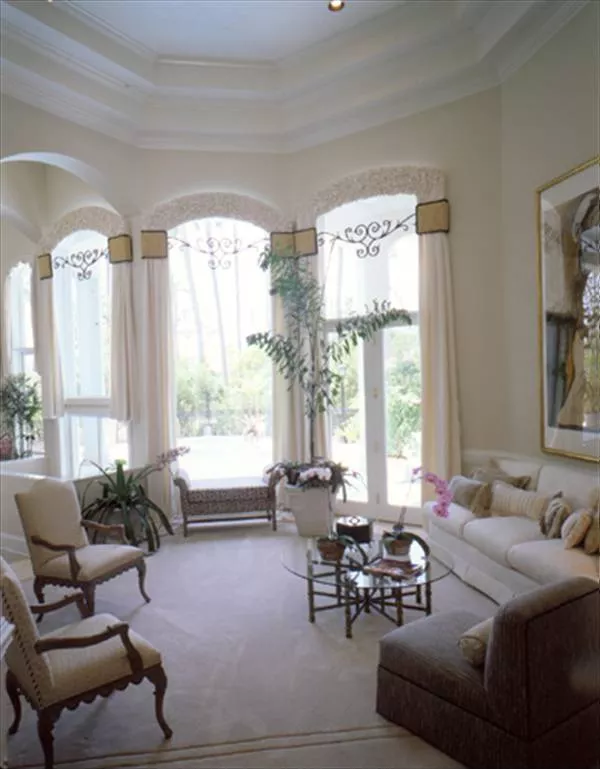

Living Room

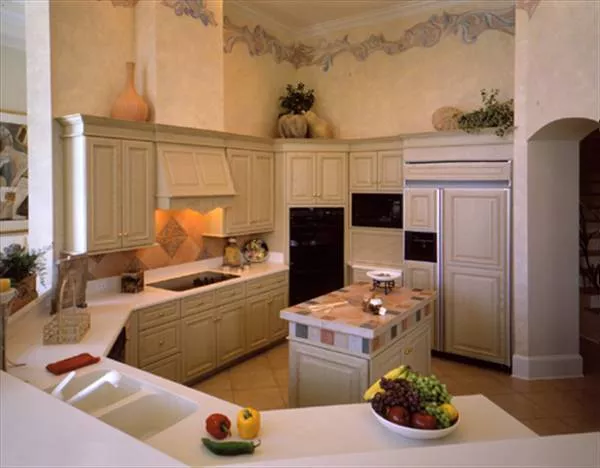

Kitchen
Kitchen
Great Room
Master Bedroom

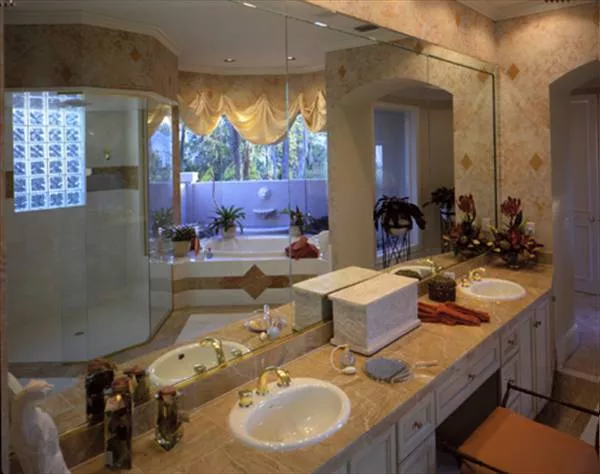

Master Bath

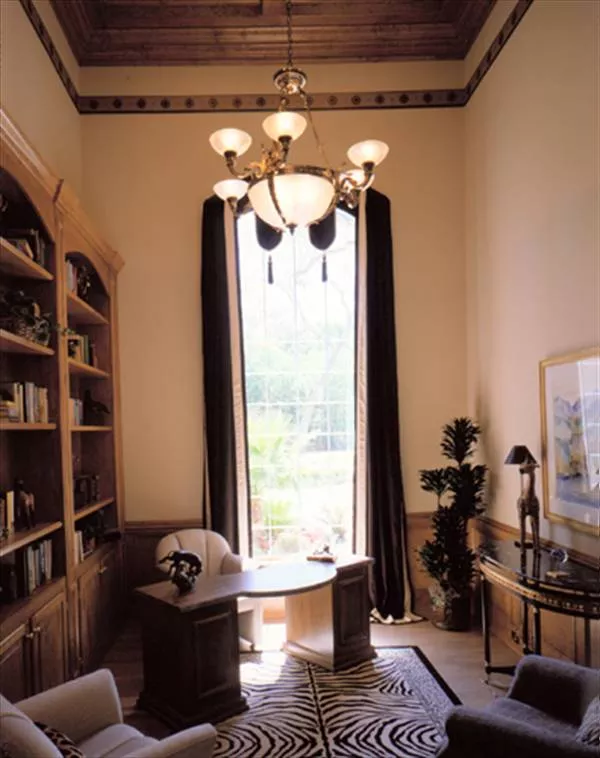

Bedroom/Study
Interior Photo
First Floor Plan

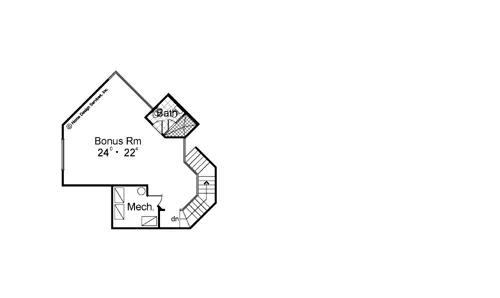

Bonus Room
© copyright by designer
Mouse over photo to pause

House Plan 4156: William Henry

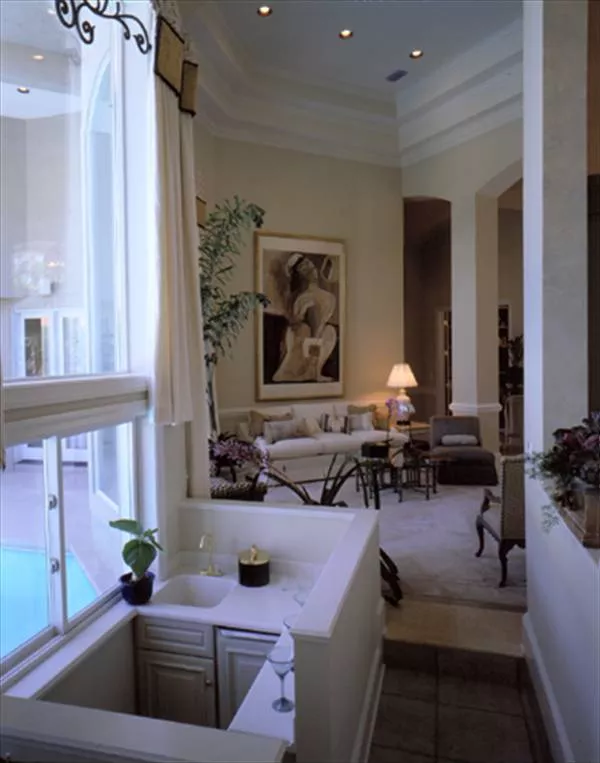

Driving up to this gran home is just the beginning of the excitement you will encounter in this design. Upon entering the foyer this house explodes in all directions. Once passed the columned gallery you enter the formal living room with a unique bayed wall which allows views of the pool which laps up against the walls of this home, and the sunken wet bar which serves the living room, pool, and family living spaces.  Read more >

House Plan Details

Sq. Ft.
4,812
Beds
4
Baths
6.0
Stories
1
Garages
3
Width
82' 10"
Depth
112' 0"
Select Plan Package
PDF File Package
$1800
Select Foundation Options
$0
*Slab (Standard)
$0
Optional Add-Ons
Subtotal: $0
If a foundation or optional add-on is not listed, please live chat, email or call for availability.

PLAN IMAGES

First Floor Plan

First Floor Plan
© copyright by designer
DETAILS
Total SQ. FT.:
4,812
1st Floor SQ. FT.:
4,222
2nd Floor SQ. FT.:
590
Bedrooms:
4
Bathrooms:
6.0
Garage:
3
Stories:
1
Main Ceiling Height:
Varies'
Upper Ceiling Height:
8'
Framing:
2x6
Roof Framing:
Truss
Roof Pitch:
Primary: 6-3/4 : 12
Width:
82' 10"
Depth:
112' 0"
Height:
32' 2"
Exterior Styles:
Beach
Contemporary
European
Mediterranean
Unheated Living Space:
Garage: 869
Porch: 126
Patio: 1,274
HOME FEATURES
Bedroom Features:
Double Vanity Sink
His and Hers Master Closets
Master Bdrm Main Floor
Separate Tub and Shower
Split Bedrooms
Walk-in Closet
Kitchen Features:
Kitchen Island

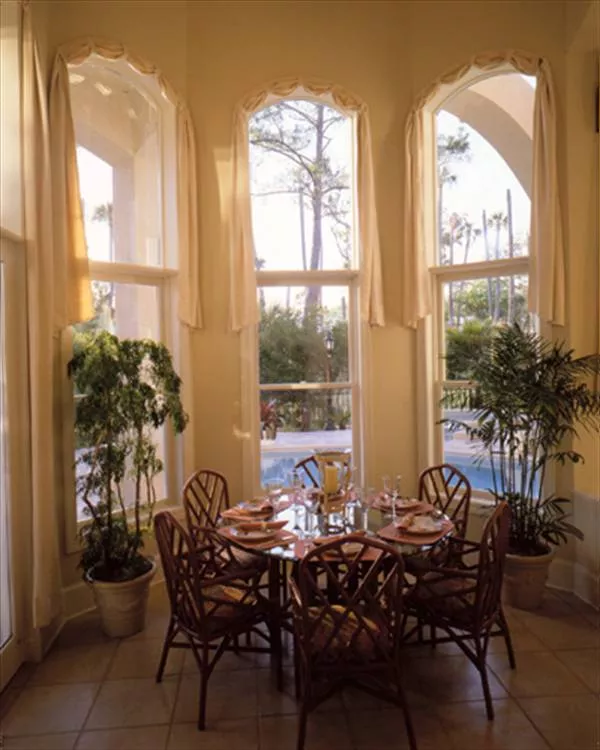

Nook / Breakfast Area
Peninsula / Eating Bar
Walk-in Pantry
Additional Features:
2 Story Volume
Arches
Bonus Room
Dining Room
Family Room
Fireplace
Formal LR
Foyer
Home Office
Laundry 1st Fl
Library/Media Rm
Loft / Balcony
Open Floor Plan
Storage Space
Wine Cellar
Garage Features:
Attached
Side-entry
Garage Location:
Side
Lot Features:
Suited for view lot
