House Plan 5042:

House Plan Details

Sq. Ft.
4,109
Beds
5
Baths
5.0
Stories
3
Garages
2
Width
50' 0"
Depth
49' 4"
1st Floor
1,640

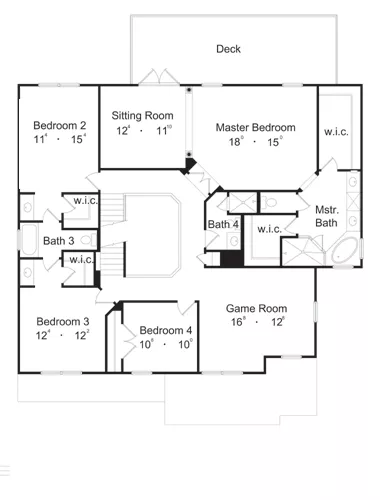

2nd Floor
1,841

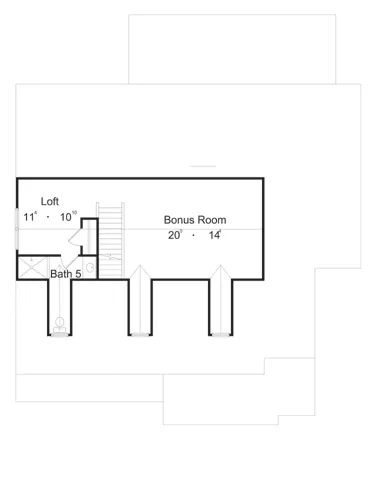

Bonus
628
Garage
485
Select Plan Package
FIVE SETS OF BONDPRINTS
$1190
Select Foundation Options
$0
Slab
$0
Optional Add-Ons
Subtotal: $0

PLAN IMAGES

First Floor Plan

First Floor Plan
© copyright by designer

Plan Details

Basic Information
Bedrooms: 5
Bathrooms: 5.0
Garage: 2
Stories: 3
Exterior Style
Beach
Farm House
Traditional
Dimensions
Width: 50' 0"
Height: 0' 0"
Depth: 49' 4"
Heated Living Space
Total Sq. Ft: 4,109
1st Floor: 1,640
2nd Floor: 1,841
Bonus: 628
Unheated Living Space
Garage: 485
Ceiling
Upper Ceiling Ft: 0
Main Ceiling Ft: 0
Framing Information
Framing: 8" Block
Roof Framing: Truss
Bedroom Features
Kitchen Features
Additional Room Features
Garage Location
Side
Garage Features
Attached
Lot Features
Roof Pitch
