House Plan 5027:

House Plan Details

Sq. Ft.
996
Beds
3
Baths
1.0
Stories
1
Garages
0
Width
24' 4"
Depth
43' 8"
1st Floor
996
Porch
65
Select Plan Package
FIVE SETS OF BONDPRINTS
$630
Select Foundation Options
$0
Crawl Space
$0
Optional Add-Ons
Subtotal: $600

PLAN IMAGES

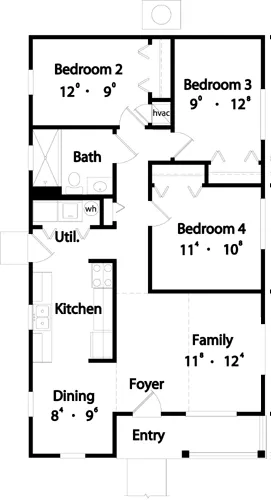

First Floor Plan

First Floor Plan
© copyright by designer

Plan Details

Basic Information
Bedrooms: 3
Bathrooms: 1.0
Garage: 0
Stories: 1
Exterior Style
Cottage
Country
Traditional
Dimensions
Width: 24' 4"
Height: 0' 0"
Depth: 43' 8"
Heated Living Space
Total Sq. Ft: 996
1st Floor: 996
Unheated Living Space
Porch: 65
Ceiling
Upper Ceiling Ft: 0
Main Ceiling Ft: 8
Framing Information
Framing: 2x4
Roof Framing: Truss
Bedroom Features
Kitchen Features
Additional Room Features
Dining Room
Dining Room
Garage Location
Garage Features
None
None
Lot Features
Suited for narrow lot
Suited for narrow lot
Roof Pitch
Primary: 6/12
Porch: 6/12

Our Guarantee

  • Only the highest quality plans
  • International Residential Code compliant
  • Complete structural details on all plans
  • Best plan and modification price guaranteed
  • Builder-ready construction drawings
  • Expert advice from leading designers
  • House plans delivered in minutes
  • 100% satisfaction guarantee
