Sq Ft
2,646 FT²

Beds
4

Baths
3.5

Stories
2

Garage
2

Depth
68' 4"

Width
40'

On Sale
$954.50
$1,150.00

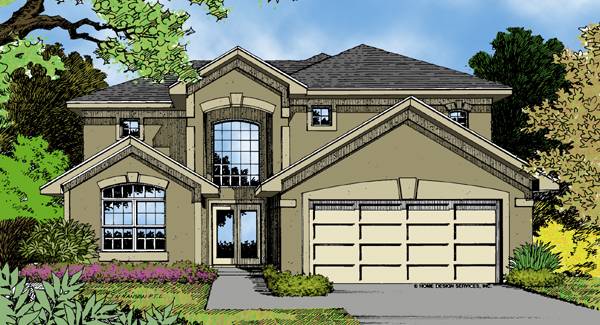

Front Rendering

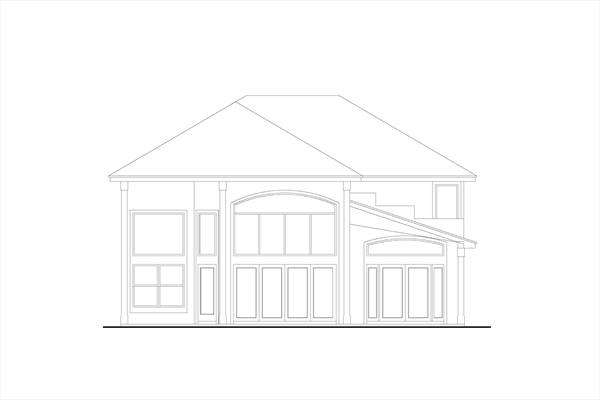

Rear Elevation

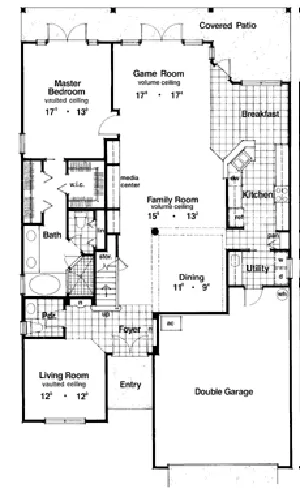

First Floor Plan

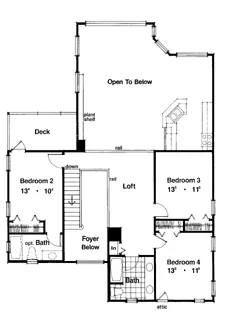

Second Floor Plan

View All 4 Images | Photographs may reflect modified home

Sq Ft

2,646 FT²

From

$954.50

Beds

Baths

3.5

Stories

Garage

Depth

68' 4"

Width

40'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

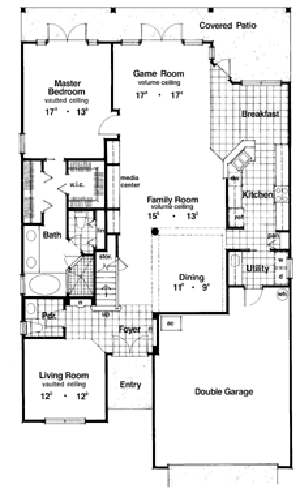

First Floor Plan

Second Floor Plan

First Floor Plan

Second Floor Plan

About This Plan

Versatility is the operative word for this plan with large spaces for a variety of uses. Master suite has French doors out to patio. Master bath features his and her closets, soaking tub and large shower. Three bedrooms on the 2nd floor share loft space perfect for the kids. Striking use of key stone banding creates majestic elevation.

See All Plan Options

FEATURES & DETAILS

Kitchen features

Nook / Breakfast Area
Walk-in Pantry

Bedroom features

His and Hers Primary Closets
Separate Tub and Shower

Exterior features

Deck
Rear Porch

Foundation Options

Basement
Crawlspace
Slab

Lot Options

Suited for narrow lot

Additional features

Dining Room
Formal LR
Library/Media Rm
Loft / Balcony
Vaulted Ceilings

Garage Location

Front

Garage Options

Attached
Front-entry

2,646 Ft

Total Heated

1,766 Ft

1st Floor

880 Ft

2nd Floor

Bedrooms

3.5

Bathrooms

Garage

Stories

40' 0"

Width

68' 4"

Depth

26' 7"

Height

8' 0"

Main Floor Ceiling

2x4

Framing

Truss

Roof Framing

7/12

Primary Roof Pitch

Single

Dwelling Number

None

Bonus Access

Unheated Living Space

504 Ft

Garage

54 Ft

Porch

98 Ft

Deck

264 Ft

Patio

Exterior Styles

Contemporary

Mediterranean

Modern

Collections

Plan Package Options

Important info before you buy

Select Plan Package

Sale: $581

PDF Bid Set

~~$700~~

PDFs NOW!™

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

Sale: $581

Sale: $954

PDF Single Build

~~$1,150~~

PDFs NOW!™

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

Sale: $954

Sale: $1,120

5 Printed Sets

~~$1,350~~

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

Sale: $1,120

Sale: $1,245

5 Printed Sets + PDF

~~$1,500~~

PDFs NOW!™

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

Sale: $1,245

Sale: $1,909

CAD Single Build

~~$2,300~~

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

Sale: $1,909

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
