Sq Ft
1,768 FT²

Beds
3

Baths
2

Stories
1

Garage
2

Depth
60'

Width
40'

From
$950.00

Front Rendering

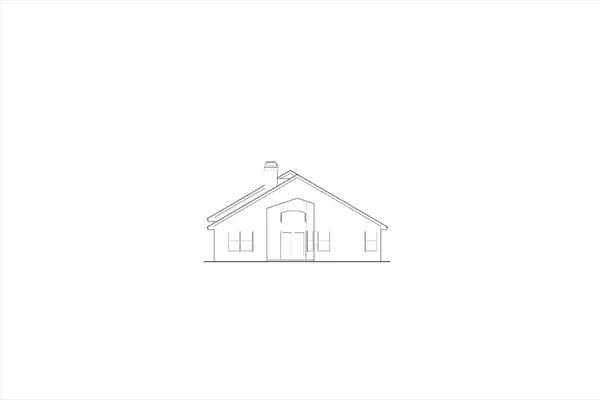

Rear Elevation

View All 2 Images | Photographs may reflect modified home

Sq Ft

1,768 FT²

From

$950.00

Beds

Baths

Stories

Garage

Depth

60'

Width

40'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

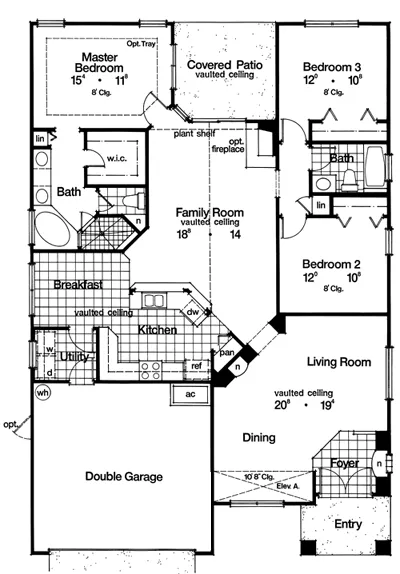

First Floor Plan

About This Plan

All of the negatives of a narrow house have been overcome in this ingenious design. All entrances to major spaces of this home are at an angle to give a feeling of spaciousness.

-A distinct foyer, complete with decorative niche and low walls, which define but do not restrict, enters the living/dining room.

- An angled archway next to another niche brings you into the family center. This space brings family room, kitchen, and nook together in a new way, by allowing for a naturally lighted nook to the side of the kitchen.

-The master suite with panoramic views boasts a generous bath with corner soaking tub, large shower, private toilet chamber with bookshelf and walk in closet.

-The Master Suite and one of the two large secondary bedrooms share the covered patio.

FEATURES & DETAILS

Kitchen features

Nook / Breakfast Area
Walk-in Pantry

Bedroom features

Separate Tub and Shower
Walk-in Closet

Exterior features

Rear Porch

Foundation Options

Basement
Crawlspace
Slab

Lot Options

Suited for narrow lot

Additional features

2 Story Volume
Arches
Formal LR
Foyer
Vaulted Ceilings

Garage Location

Front

Garage Options

Attached
Front-entry

1,768 Ft

Total Heated

Bedrooms

Bathrooms

Garage

Stories

40' 0"

Width

60' 0"

Depth

21' 4"

Height

8' 0"

Main Floor Ceiling

2x4

Framing

Truss

Roof Framing

7/12

Primary Roof Pitch

Single

Dwelling Number

None

Bonus Access

Unheated Living Space

374 Ft

Garage

65 Ft

Porch

123 Ft

Patio

Exterior Styles

Contemporary

Cottage

Mediterranean

Collections

Florida

Plan Package Options

Important info before you buy

Select Plan Package

$600

PDF Bid Set

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

$600

$950

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$950

$1,150

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,150

$1,300

5 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

$1,300

$1,900

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$1,900

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.

BEST PRICE GUARANTEE

find the same house plan (modifications included!) and package for less on another site, show us the URL and we'll give you the difference plus an additional 5% back.

100% SATISFACTION GUARANTEE

We offer a one-time, 14-day exchange policy for unused, non-electronic plan packages in the event you aren't satisfied with your first selection.
