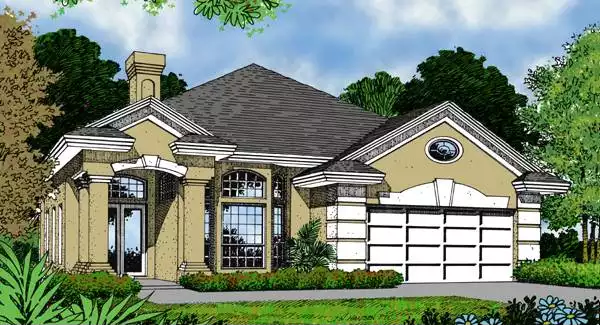

See all 1 photos (photographs may reflect modified homes)
© copyright by designer

Mouse over photo to pause

House Plan 3949:

Only 41 feet wide, this plan's exploding floor plan layout makes this house feel huge. Angled foyer entry opens onto formal dining area, and then onto gathering space, which opens onto the large patio. The island kitchen and bayed breakfast area creates a country kitchen design that's irresistable.  Read more >
See Architect Preferred Products For This Plan >

House Plan Details

Sq. Ft.
1,758
Beds
3
Baths
2.0
Stories
1
Garages
2
Width
40' 0"
Depth
65' 0"
1st Floor
1,758
Garage
439
Porch
45
Patio
168
Customize this Home Plan
Estimate Cost to Build
Free Cost Estimator >
For assistance, email, live chat, or call us at 866-214-2242
Select Plan Package
FIVE SETS OF BONDPRINTS
$770
Select Foundation Options
$0
Slab
$0
Optional Add-Ons
Subtotal: $770
SEE DETAILED PLAN OPTIONS
What You Should Know Before Buying! >

PLAN IMAGES

Add to Favorites   Save

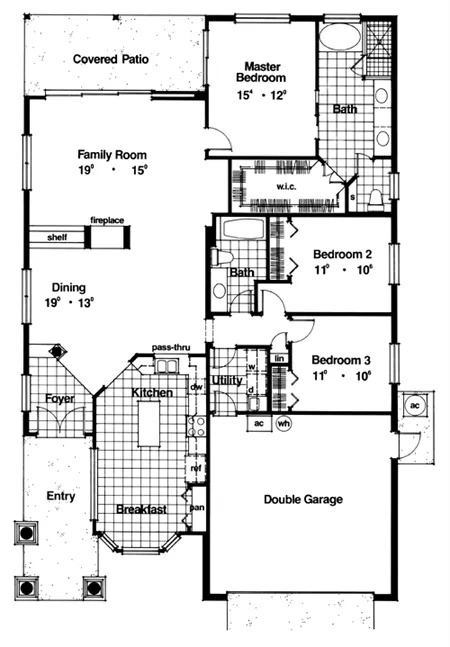

First Floor Plan

First Floor Plan
© copyright by designer

Plan Details

Basic Information
Bedrooms: 3
Bathrooms: 2.0
Garage: 2
Stories: 1
Exterior Style
Contemporary
Cottage
Mediterranean
Dimensions
Width: 40' 0"
Height: 21' 2"
Depth: 65' 0"
Heated Living Space
Total Sq. Ft: 1,758
1st Floor: 1,758
Unheated Living Space
Garage: 439
Porch: 45
Patio: 168
Ceiling
Upper Ceiling Ft: 0
Main Ceiling Ft: 10
Framing Information
Framing: Block
Roof Framing: Truss
Bedroom Features
Separate Tub and Shower
Separate Tub and Shower
Walk-in Closet
Walk-in Closet
Kitchen Features
Kitchen Island
Kitchen Island
Nook / Breakfast Area
Nook / Breakfast Area
Additional Room Features
2 Story Volume
2 Story Volume
Arches
Arches
Vaulted Ceilings
Vaulted Ceilings
Garage Location
Front
Garage Features
Attached
Attached
Lot Features
Suited for narrow lot
Suited for narrow lot
Roof Pitch
Primary: 6:12

Our Guarantee

  • Only the highest quality plans
  • Int’l Residential Code Compliant
  • Full structural details on all plans
  • Best plan price guarantee
  • Free modification Estimates
  • Builder-ready construction drawings
  • Expert advice from leading designers
  • PDFs NOW!™ plans delivered in minutes
  • 100% satisfaction guarantee
  • Free Home Building Organizer
