House Plan 3924:

Living/dining space combined allows for flexibility. Kitchen is the frugal gourmet's dream. Master opens onto the patio and includes a lavish bath with huge walk in closet. Space saving "Jack & Jill" laundry room is in A/C space.  Read more >
See Architect Preferred Products For This Plan >

House Plan Details

Sq. Ft.
1,433
Beds
3
Baths
2.0
Stories
1
Garages
2
Width
40' 0"
Depth
55' 0"
1st Floor
1,433
Garage
393
Porch
28
Patio
182
Customize this Home Plan
Estimate Cost to Build
Free Cost Estimator >
For assistance, email, live chat, or call us at 866-214-2242
Select Plan Package
FIVE SETS OF BONDPRINTS
$690
Select Foundation Options
$0
Slab
$0
Optional Add-Ons
Subtotal: $690
SEE DETAILED PLAN OPTIONS
What You Should Know Before Buying! >

PLAN IMAGES

Add to Favorites   Save

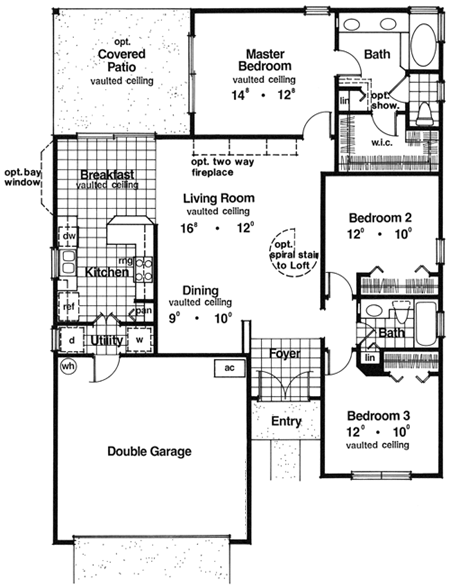

First Floor Plan

First Floor Plan
© copyright by designer

Plan Details

Basic Information
Bedrooms: 3
Bathrooms: 2.0
Garage: 2
Stories: 1
Exterior Style
Contemporary
Cottage
Mediterranean
Dimensions
Width: 40' 0"
Height: 20' 0"
Depth: 55' 0"
Heated Living Space
Total Sq. Ft: 1,433
1st Floor: 1,433
Unheated Living Space
Garage: 393
Porch: 28
Patio: 182
Ceiling
Upper Ceiling Ft: 0
Main Ceiling Ft: 8
Framing Information
Framing: 2x4
Roof Framing: Truss
Bedroom Features
Separate Tub and Shower
Separate Tub and Shower
Walk-in Closet
Walk-in Closet
Kitchen Features
Additional Room Features
Arches
Arches
Formal LR
Formal LR
Vaulted Ceilings
Vaulted Ceilings
Garage Location
Front
Garage Features
Attached
Attached
Lot Features
Suited for narrow lot
Suited for narrow lot
Roof Pitch
Primary: 7:12
