Recently Viewed Plans | Advanced Plan Search

Sq Ft
3,448 FT²

Beds
3

Baths
3

Stories
2

Garage
3

Depth
75' 8"

Width
90' 10"

On Sale
$936.00
$1,200.00

Front View

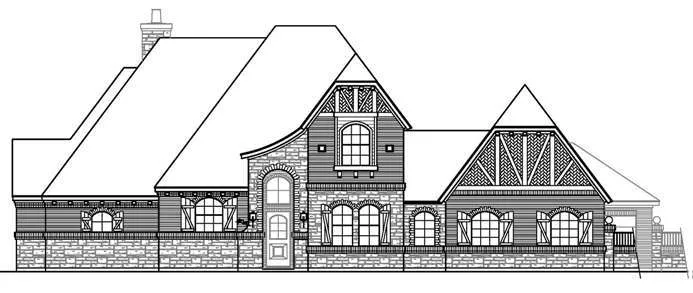

Front Elevation

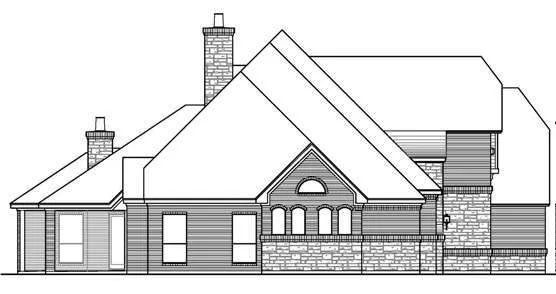

Left Elevation

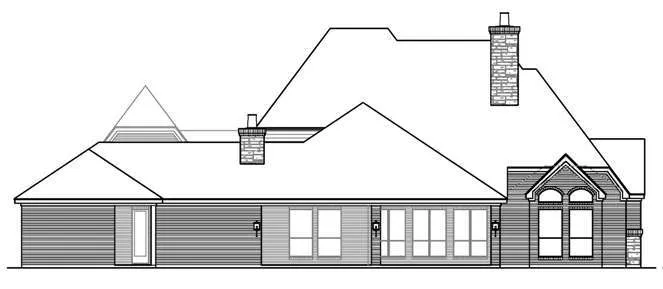

Rear Elevation

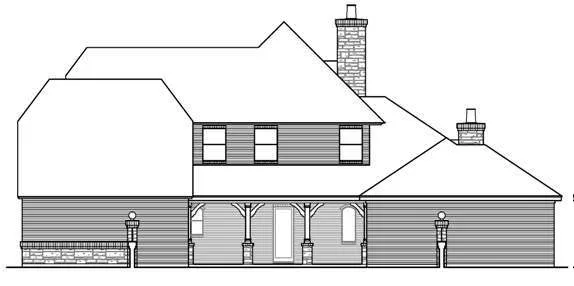

Right Elevation

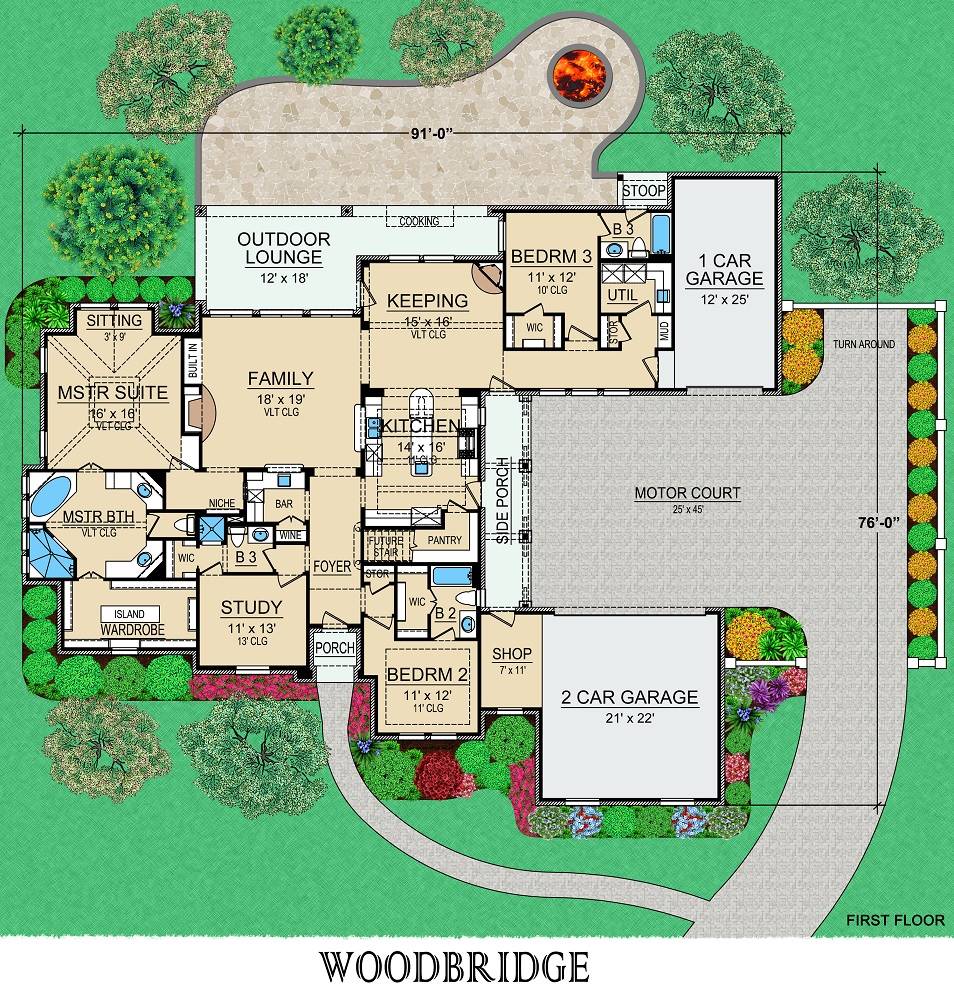

First Floor

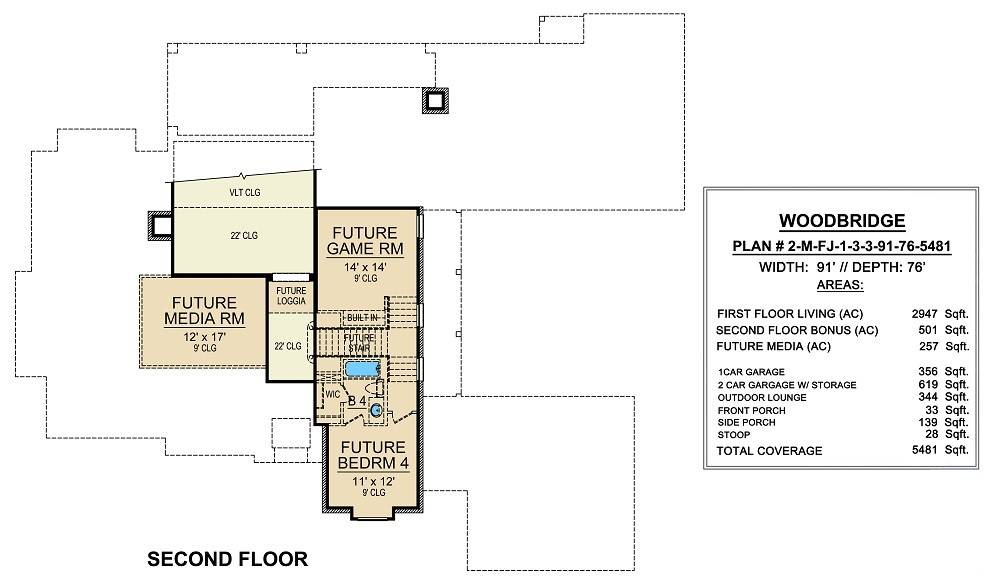

Second Floor

View All 7 Images | Photographs may reflect modified home

Sq Ft

3,448 FT²

From

$936.00

Beds

Baths

Stories

Garage

Depth

75' 8"

Width

90' 10"

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

First Floor

Second Floor

First Floor

Second Floor

About This Plan

This simple yet spacious Tudor design has it all. As you enter the two story foyer, to the right is a cozy bedroom with walk-in closet and private bath. To the left is a study with coffered ceiling and full bath access, which allows it to double as an additional bedroom if needed. Also off the foyer is a space allowed for future stairs that would ascend to the second floor expansion of a game room, a media room, and a bedroom with a private bath. The family room, keeping room, and island kitchen give plenty of room to entertain. A large outdoor lounge invites guests to relax. An in-law suite/maid's quarters with private bath and walk-in closet is tucked away at the rear for privacy. Last but not least, the amazing master suite flaunts every amenity you desire for rest and comfort.

See All Plan Options

FEATURES & DETAILS

Kitchen features

Country Kitchen
Kitchen Island
Nook / Breakfast Area
Walk-in Pantry

Bedroom features

Double Vanity Sink
Guest Suite
Primary Bdrm Main Floor
Separate Tub and Shower
Sitting Area
Split Bedrooms
Walk-in Closet

Exterior features

Covered Front Porch
Covered Rear Porch
Front Porch
Outdoor Kitchen
Outdoor Living Space
Rear Porch

Foundation Options

Slab

Additional features

2 Story Volume
Arches
Bonus Room
Family Room
Fireplace
Foyer
Home Office
In-law Suite
Laundry 1st Fl
Library/Media Rm
Open Floor Plan
Rec Room
Unfinished Space
Vaulted Ceilings
Vaulted Primary
Workshop

Garage Location

Side

Garage Options

Attached
Front-entry
Rear-entry

5,481 Ft

Total Structure

3,448 Ft

Total Heated

2,947 Ft

1st Floor

501 Ft

2nd Floor

Bedrooms

Bathrooms

Garage

Stories

90' 10"

Width

75' 8"

Depth

35' 0"

Height

10' 0"

Main Floor Ceiling

9' 0"

Upper Floor Ceiling

2x4

Framing

Stick

Roof Framing

Primary Roof Pitch

Secondary Roof Pitch

Single

Dwelling Number

Unheated Living Space

975 Ft

Garage

200 Ft

Porch

344 Ft

Patio

1,015 Ft

Bonus Room

Exterior Styles

European

Traditional

Collections

Plan Package Options

Important info before you buy

Select Plan Package

Sale: $936

PDF Single Build

~~$1,200~~

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

Sale: $936

Sale: $1,404

CAD + PDF Single Build

~~$1,800~~

CAD files are a complete set of construction drawings delivered electronically. They can be used for any type of modification—including major design changes and engineering—and include a release granting permission to modify the plan. Most CAD plan orders are emailed the same or next business day.

This package also comes with a PDF set of plans and a copyright release for making modifications and printing unlimited copies.

CAD files are provided in .dwg format. For details on the specific CAD program used, please refer to the PLAN DETAILS section located above the floor plan on each plan’s page.

Sale: $1,404

5 Printed Sets

~~$1,800~~

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

Sale: $1,404

Need To Reverse Plan? (Optional)

$200

Readable Reverse

Reverse house plans with readable text and dimensions

$200

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractors, and/or local engineers.

BEST PRICE GUARANTEE

find the same house plan (modifications included!) and package for less on another site, show us the URL and we'll give you the difference plus an additional 5% back.

100% SATISFACTION GUARANTEE

We offer a one-time, 30-day exchange policy for unused, non-electronic plan packages in the event you aren't satisfied with your first selection.
