House Plan 7765: WINSTON 2

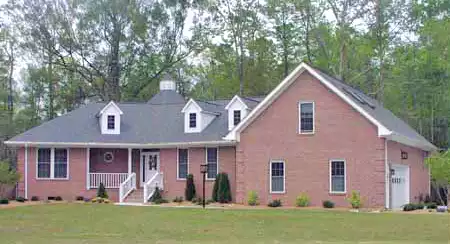

This photographed version of the dramatic angled plan 3705 is testament to the flexibility of our plans. It was built in brick rather than the siding of the original and the owners added a bonus room over the garage. Otherwise the dramatic octagonal great room and all the interior drama is retained.  Read more >
See Architect Preferred Products For This Plan >

House Plan Details

Sq. Ft.
2,243
Beds
3
Baths
2.1
Stories
1
Garages
2
Width
83' 6"
Depth
53' 4"

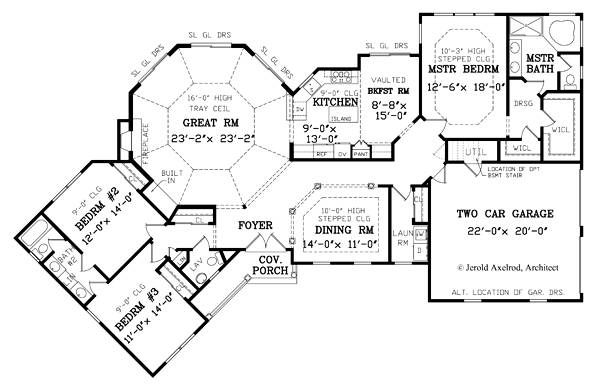

1st Floor
2,243
Garage
453
Porch
67
Customize this Home Plan
Estimate Cost to Build
Free Cost Estimator >
For assistance, email, live chat, or call us at 866-214-2242
Select Plan Package
PDF Construction Set - Si
$975
Select Foundation Options
$0
Crawl Space
$0
Optional Add-Ons
Subtotal: $745
SEE DETAILED PLAN OPTIONS
What You Should Know Before Buying! >

PLAN IMAGES

Add to Favorites   Save

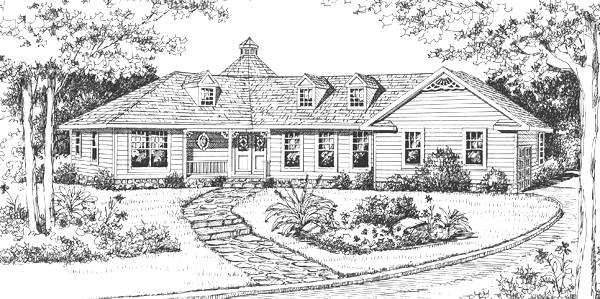

Front Rendering

Front Rendering
© copyright by designer

Plan Details

Basic Information
Bedrooms: 3
Bathrooms: 2.1
Garage: 2
Stories: 1
Exterior Style
Country
Farm House
Modern
Ranch
Dimensions
Width: 83' 6"
Height: 28' 0"
Depth: 53' 4"
Heated Living Space
Total Sq. Ft: 2,243
1st Floor: 2,243
Unheated Living Space
Garage: 453
Porch: 67
Ceiling
Upper Ceiling Ft:
Main Ceiling Ft: 9
Framing Information
Framing: 2x4
Roof Framing: Stick
Bedroom Features
Kitchen Features
Additional Room Features
Garage Location
Side
Garage Features
Attached
Lot Features
Roof Pitch
Primary: 8:12
Secondary: 12:12
