Search Plans

Sq Ft
2,502 FT²
Bed
3
Bath
2.5
Stories
2
Garage
2
Depth
63'
Width
35'
From
$1,833.00
© copyright by designer

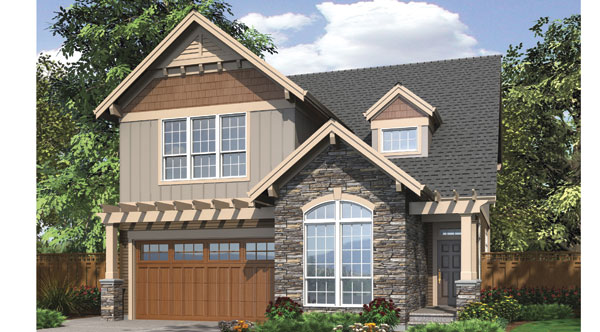

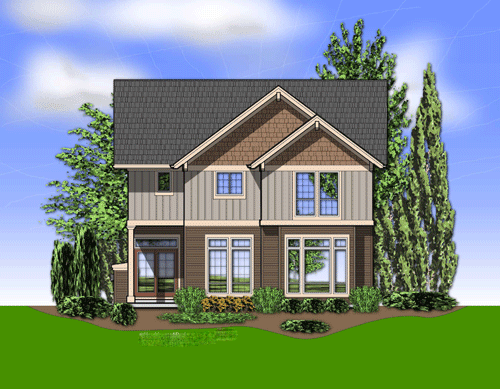

View All 2 Images | Photographs may reflect modified home
Sq Ft
2,502 FT²
From
$1,833.00
Bed
3
Bath
2.5
Stories
2
Garage
2
Depth
63'
Width
35'

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

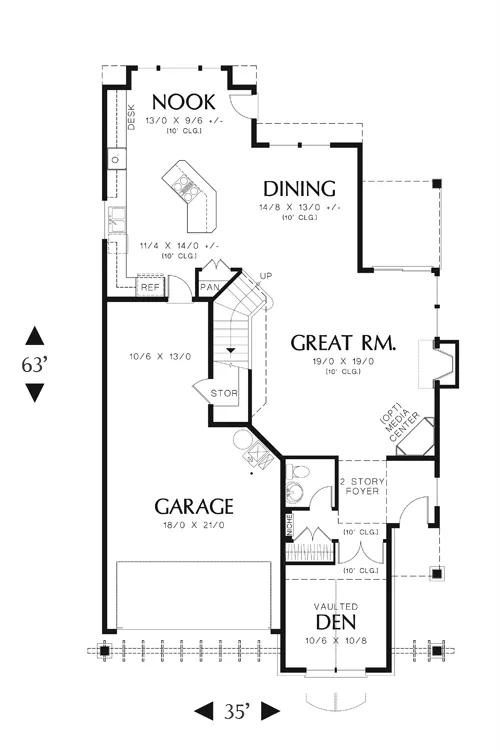

Are you under the impression that a home designed for a narrow lot cant feel as open as a standard-width home? The cleverly arranged angle design of the living spaces in this narrow home will challenge the spaciousness and convenience of any standard-width floor plan. Stacked in a stair-step fashion, the great room, dining room, and kitchen flow at a diagonal, granting the ease of an open floor plan, while honoring the size restrictions of a narrow home site. Those in the kitchenwhether sitting at the angled snack bar or in the breakfast nookcan enjoy views of the television in the great rooms angled media center. A patio is nestled in the ell formed by the dining room and great room. Not all of the main level is enveloped in such openness. Appropriately, a hallway sandwiched between the powder room and the foyer leads to a den, which is enclosed behind double doors.

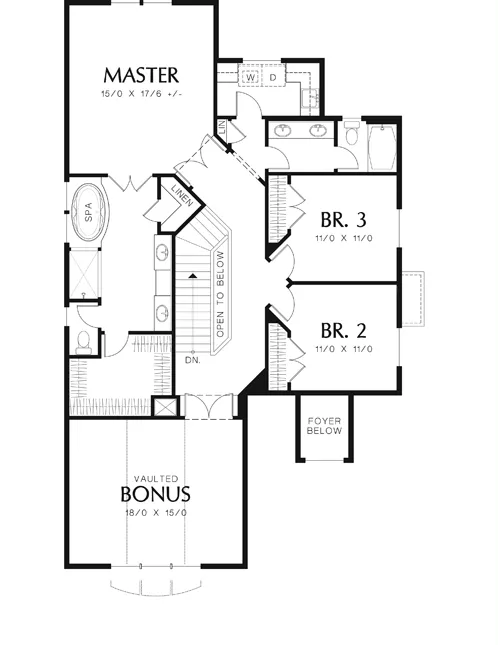

An angled staircase leads to the upper level, where the homes three bedrooms provide a reprieve from everyday hustle and bustle. A bath with tub and shower compartment accompanies two of the bedrooms. Next to the bath is the laundry room with counter space and a sink. The master suite is more luxurious: it includes a spa tub, a large shower, and a linen closet. The bonus room can be used as a fourth bedroom, or playroom, if desired.




FEATURES & DETAILS

Kitchen features
Kitchen Island
Nook / Breakfast Area
Walk-in Pantry
Bedroom features
Double Vanity Sink
Primary Bdrm Upstairs
Separate Tub and Shower
Walk-in Closet
Exterior features
Covered Rear Porch
Rear Porch
Foundation Options
Basement
Crawlspace
Slab
Lot Options
Suited for narrow lot
Additional features
2 Story Volume
Bonus Room
Dining Room
Fireplace
Foyer
Great Room
Home Office
Laundry 2nd Fl
Open Floor Plan
Vaulted Ceilings
Garage Location
Front
Garage Options
Attached
Front-entry
Tandem
2,502 Ft
2
Total Heated
1,255 Ft
2
1st Floor
1,247 Ft
2
2nd Floor
3
Bedrooms
2.5
Bathrooms
2
Garage
2
Stories
35' 0"
Width
63' 0"
Depth
30' 9"
Height
Varies' 0"
Main Floor Ceiling
2x6
Framing
Truss
Roof Framing
9/12
Primary Roof Pitch
Single
Dwelling Number
2nd Floor
Bonus Access

Unheated Living Space
535 Ft
2
Garage
72 Ft
2
Porch
295 Ft
2
Bonus Room


Plan Package Options

 Select Plan Package
$1,833
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,833
$2,033
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$2,033
$2,083
5 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

$2,083
$3,666
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$3,666
 Need To Reverse Plan? (Optional)
$225
Readable Reverse

Reverse house plans with readable text and dimensions

$225
  Select Foundation Option
  Add-Ons (Optional)

Free Ground shipping within the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your plan

Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
