HOUSE PLANS SALE
START AT $1,220.60
SQ FT
1,689
BEDS
3
BATHS
2.5
STORIES
2
CARS
2
WIDTH
30'
DEPTH
42' 6"
© copyright by designer
Photographs may reflect modified home | View all 2 images
SQ FT
1,689
BEDS
3
BATHS
2.5
STORIES
2
CARS
2

House Plan 2545: Winchester

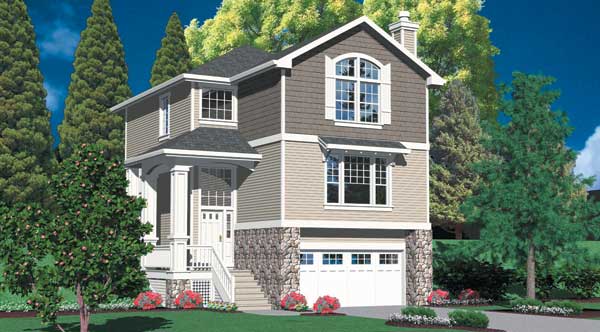

An abundance of multipane windows and a wrap-around porch infuse this hillside home with an air of hospitality. Shutters accent the arched window on the top floor. A window hood shades the trio of windows in the living room. Although moderately sized, this house lives big. That's because there's a perfect balance between luxurious amenities and everyday practicalities. Luxury is immediately apparent in the formal foyer, which soars to the roofline, and is capped by a square window. An open staircase carries you up to the living and dining rooms. A closed staircase leads to the two-car garage. In the living room, a fireplace is flanked by built-ins, offering both a handsome focal point and convenient storage space.

The family cooks will love the expansive kitchen, which revolves around an island, equipped with a sink and dishwasher. There's also room at the island for kibitzers to sit and chat. A beautiful bay window brings light and the view into the kitchen, and creates a delightful alcove for casual dining.

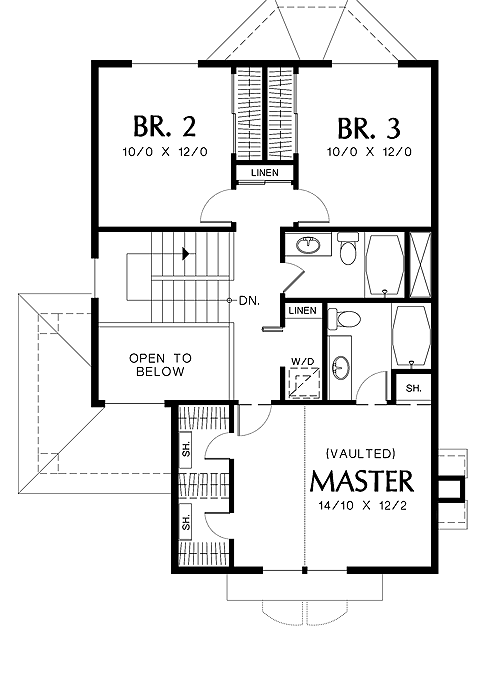

The upper floor accommodates a master suite retreat, complete with double closets, built-in shelves in the bedroom, and an adjacent bath. Laundry facilities also are on this floor, a practical location because most laundry is generated in bedrooms and bathrooms.

Click to Zoom In on Floor Plan

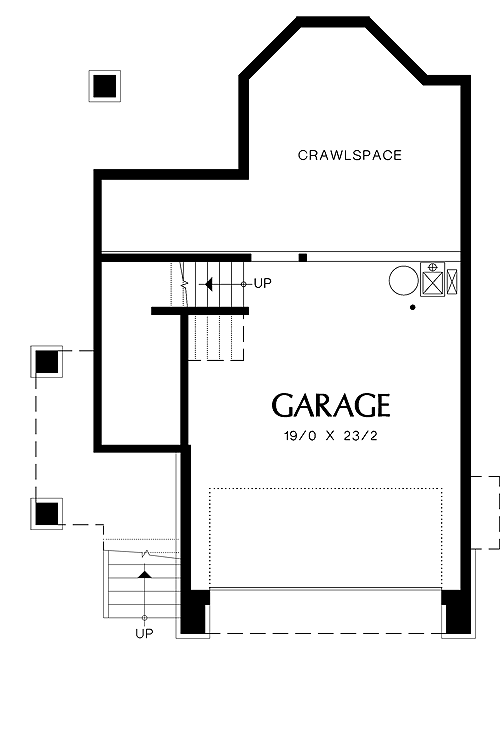

Floor Plans
© copyright by designer
Plan Packages
 Select Plan Package
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build
Most recommended package
$1,436
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets
Five printed sets of house plans
$1,636
5 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

5 Printed Sets + PDF
Digital plans plus 5 printed sets
$1,686
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Build
2D electronic editable computer files
$2,872
 Need To Reverse Plan? (Optional)

Readable Reverse


Reverse house plans with readable text and dimensions

Readable Reverse
Reverses house plans with readable text and dimensions
$225
 Select Foundation Option
 Add-Ons (Optional)
Subtotal:
$0
Free Shipping
Features:
View All Plan Features
Kitchen features
Kitchen Island
Nook / Breakfast Area
Bedroom features
His and Hers Master Closets
Master Bdrm Upstairs
Walk-in Closet
Additional features
2 Story Volume
Fireplace
Foyer
Great Room
Laundry 2nd Fl
Vaulted Ceilings
Exterior features
Covered Front Porch
Covered Rear Porch
Rear Porch
Wraparound Porch
Garage Location
Under
Garage Options
Attached
Drive-under
Foundation Options
Slab
Lot Options
Suited for narrow lot
Suited for sloping lot

Hide Plan Features
Details:
View All Plan Details
1,689 Ft
2
Total Heated:
897 Ft
2
1st Floor:
792 Ft
2
2nd Floor:
3
Bedrooms:
2.5
Bathrooms:
2
Garage:
2
Stories:
30' 0"
Width:
42' 6"
Depth:
36' 0"
Height:
9' 0"
Main Floor Ceiling:
Varies' 0"
Upper Floor Ceiling:
2x6
Framing:
Truss
Roof Framing:
7/12
Primary Roof Pitch:
Single
Dwelling Number:
None
Bonus Access:
Unheated Living Space
454 Ft
2
Garage:
144 Ft
2
Porch:
Exterior Styles
Country
Craftsman
Traditional
Collections
Affordable
First Home
North Carolina
Old House Classics
Vacation

Hide Plan Details
Reviews for Plan 2545
6/4/2013
Thomas of Baldwin, NY
Customer Review:
Plans have been updated to local building code and are into the Building Department for approval. Your plans are an excellent value.
