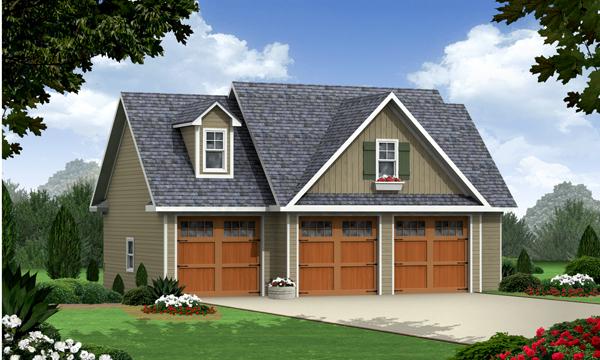

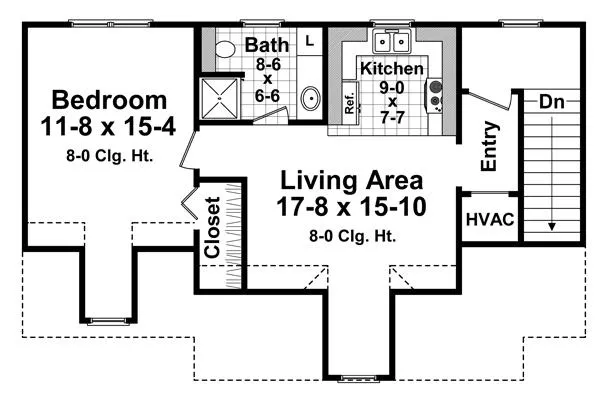

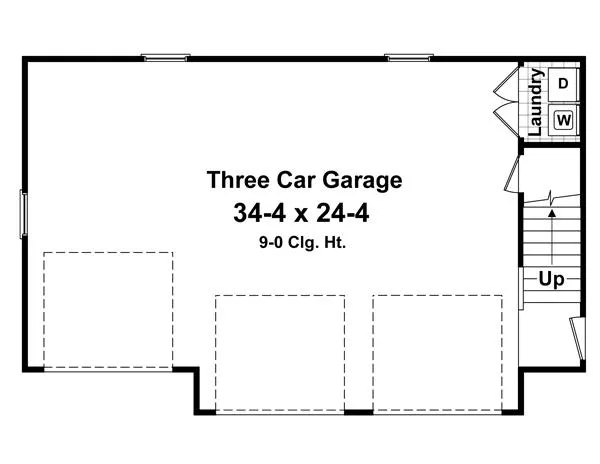

This three-car garage plan can be an excellent addition to your existing home or built all by itself. The first floor garage plan has plenty of space including a first floor laundry room! The private second floor includes a large bedroom with a living area. The sloped ceiling along with the front dormer located in the living area adds an unexpected architectural element to the second floor.

FEATURES & DETAILS

Bedroom features

Walk-in Closet

Foundation Options

Slab

Lot Options

Suited for corner lot
Suited for narrow lot
Suited for sloping lot
Suited for view lot

Additional features

Laundry 1st Fl
Open Floor Plan

Garage Location

Front

Garage Options

Attached
Drive-under
Front-entry
Oversized

1,578 Ft

Total Heated

644 Ft

2nd Floor

Bedrooms

Bathrooms

Garage

Stories

39' 4"

Width

25' 0"

Depth

23' 0"

Height

9' 0"

Main Floor Ceiling

8' 0"

Upper Floor Ceiling

2x4

Framing

Stick

Roof Framing

12/12

Primary Roof Pitch

Garage

Dwelling Number

None

Bonus Access

Unheated Living Space

934 Ft

Garage

Exterior Styles

Country

Craftsman

Traditional

Collections

ADU

Affordable

Vacation

Plan Package Options

Important info before you buy

Select Plan Package

$595

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$595

$710

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$710

$820

5 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

$820

$1,100

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$1,100

Need To Reverse Plan? (Optional)

$100

Readable Reverse

Reverse house plans with readable text and dimensions

$100

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
