Sq Ft
1,569 FT²
Bed
3
Bath
2
Stories
1
Garage
1
Depth
52'
Width
40'
On Sale
$1,106.70
$1,106.70
© copyright by designer

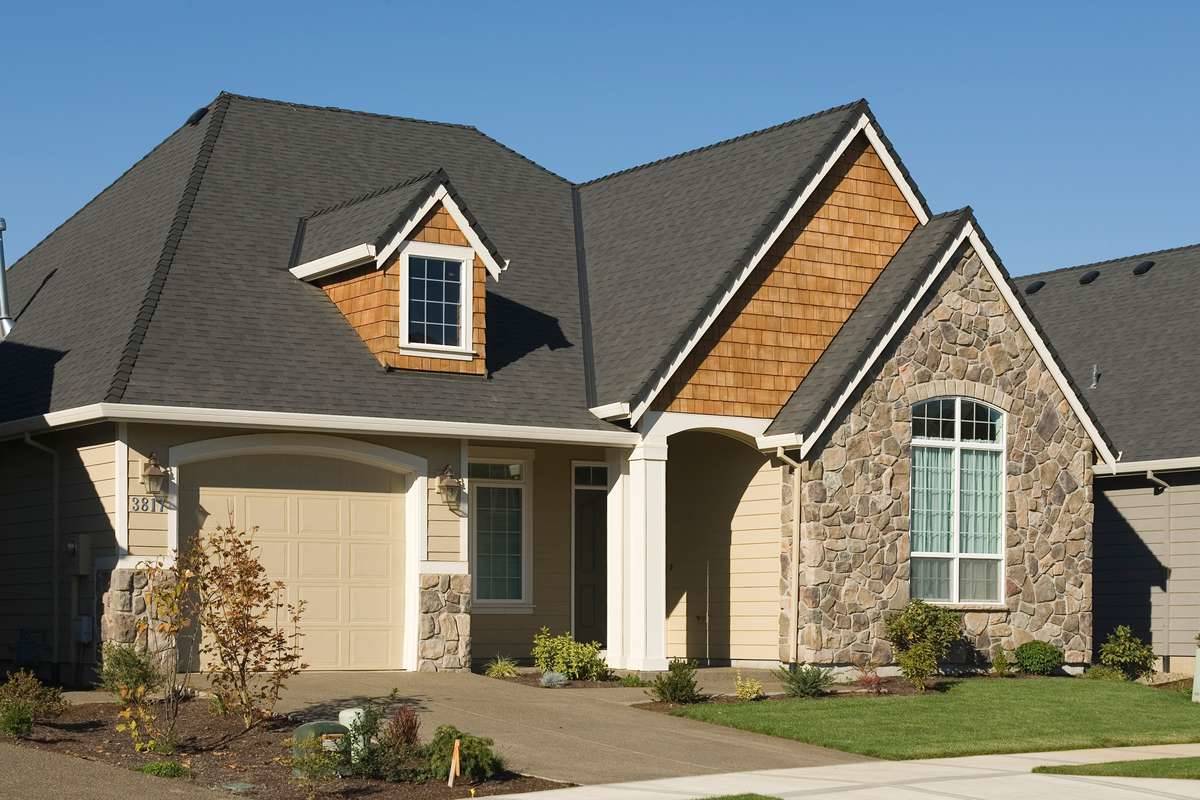

View All 3 Images | Photographs may reflect modified home
Sq Ft
1,569 FT²
From
$1,106.70
Bed
3
Bath
2
Stories
1
Garage
1
Depth
52'
Width
40'

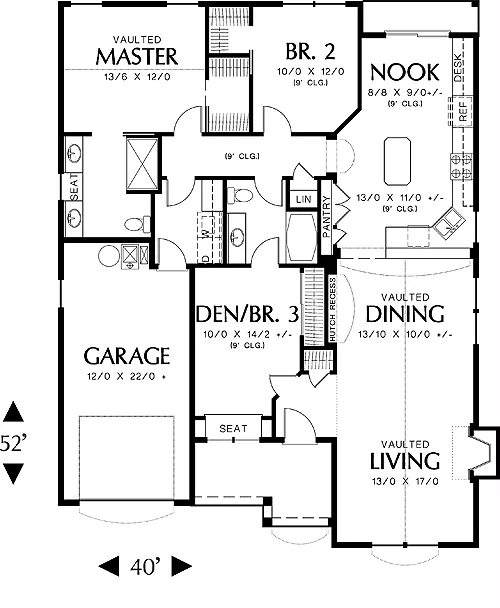

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

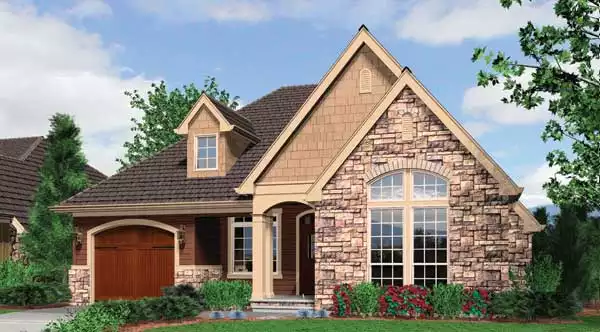

Surprises wait on the inside of this charming plantheres much more living space than may be immediately apparent. The magic is due, in part, to a hipped roof that allows room for vaulted living and dining rooms and nine-foot ceilings in the den and the bedrooms. Some exceptional details you wont want to miss include: a fireplace in the living room, a hutch recess in the dining room, an arched 42 counter separating the dining room from the kitchen, a large island in the kitchen, a built-in desk in the nook and sliding doors in the nook to a rear patio.

The master suite and Bedroom 2 are at the rear of the planeach has a private bath. If you choose, the den can become an additional bedroom, sharing the use of the hall bath. The master bedroom is graced by a tray ceiling and has a bath with window seat and dual lavatories. Both the master bedroom and Bedroom 2 have walk-in closets. A laundry alcove sits in the service hall to the garage.



FEATURES & DETAILS

Kitchen features
Kitchen Island
Nook / Breakfast Area
Bedroom features
Double Vanity Sink
Master Bdrm Main Floor
Walk-in Closet
Exterior features
Covered Front Porch
Front Porch
Foundation Options

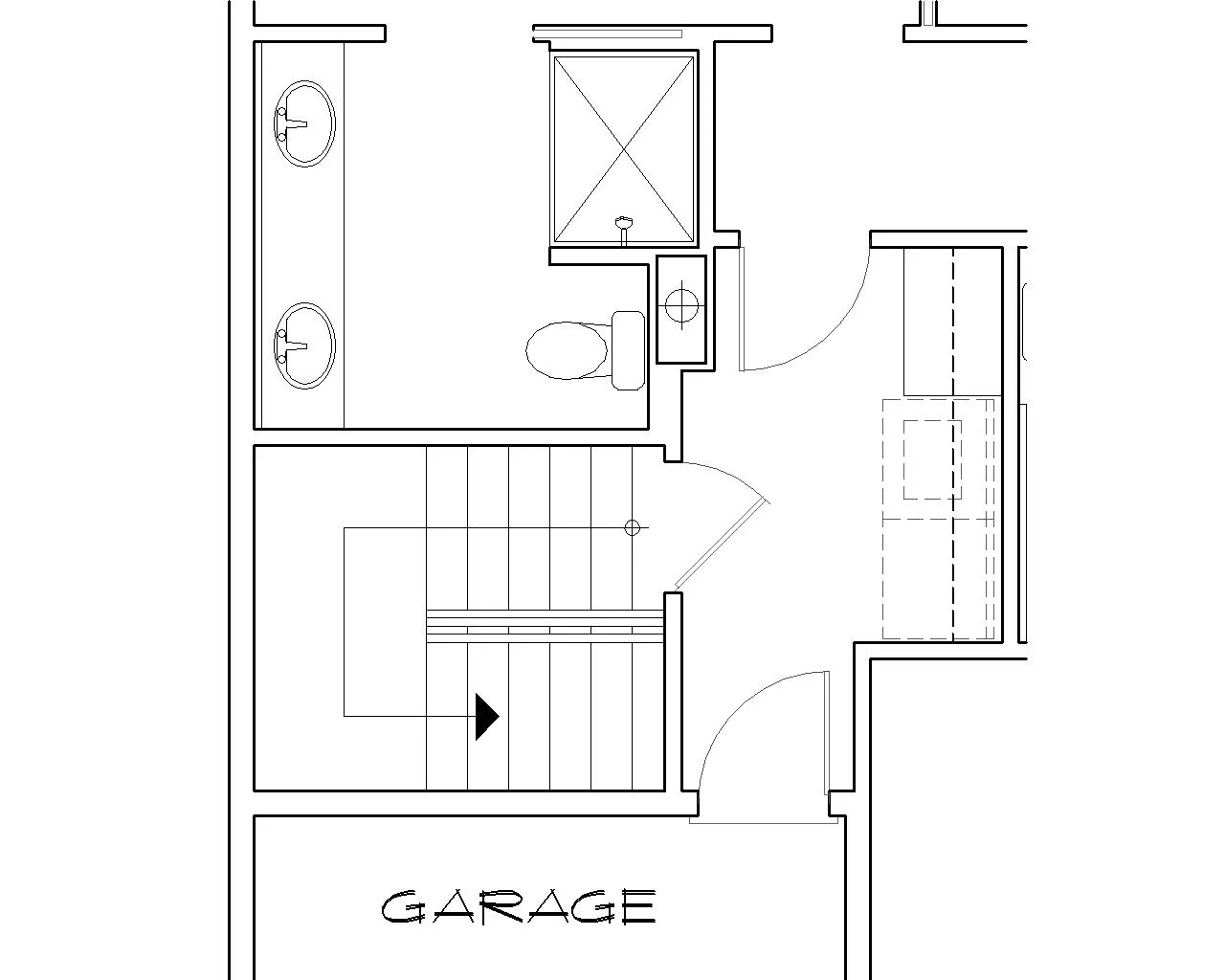

Basement
Crawlspace
Slab
Lot Options
Suited for narrow lot
Additional features
Dining Room
Fireplace
Foyer
Great Room
Laundry 1st Fl
Open Floor Plan
Vaulted Ceilings
Garage Location
Front
Garage Options
Attached
Front-entry
1,569 Ft
2
Total Heated
3
Bedrooms
2
Bathrooms
1
Garage
1
Stories
40' 0"
Width
52' 0"
Depth
25' 8"
Height
9' 0"
Main Floor Ceiling
2x6
Framing
Truss
Roof Framing
14/12
Primary Roof Pitch
8/12
Secondary Roof Pitch
Single
Dwelling Number
None
Bonus Access

Unheated Living Space
306 Ft
2
Garage
104 Ft
2
Porch


Plan Package Options

 Select Plan Package
$1,302
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,302
$1,502
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,502
$1,552
5 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

$1,552
$2,604
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$2,604
 Need To Reverse Plan? (Optional)
$225
Readable Reverse

Reverse house plans with readable text and dimensions

$225
  Select Foundation Option
  Add-Ons (Optional)

Ground shipping within the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your house plan

Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.

BEST PRICE GUARANTEE

find the same house plan (modifications included!) and package for less on another site, show us the URL and we'll give you the difference plus an additional 5% back.

100% SATISFACTION GUARANTEE

We offer a one-time, 14-day exchange policy for unused, non-electronic plan packages in the event you aren't satisfied with your first selection.
