Search Plans

Sq Ft
1,569 FT²
Bed
3
Bath
2
Stories
1
Garage
1
Depth
52'
Width
40'
From
$1,307.00
© copyright by designer

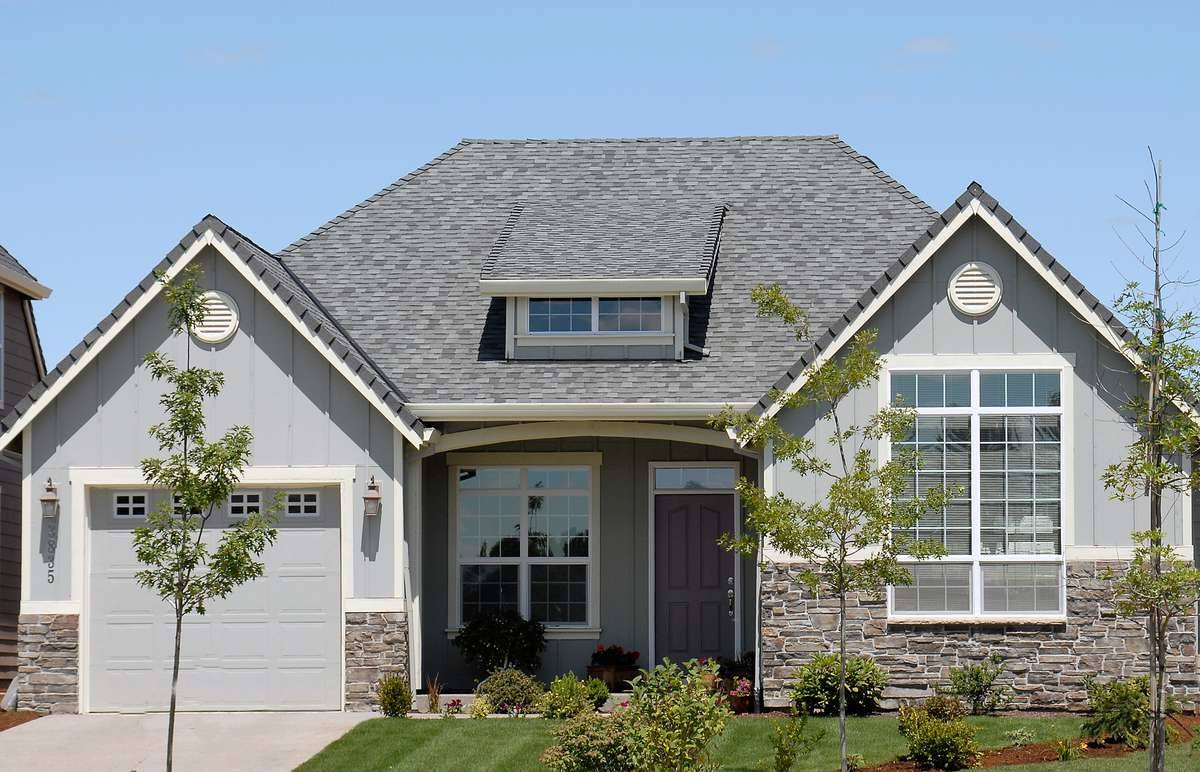

View All 3 Images | Photographs may reflect modified home
Sq Ft
1,569 FT²
From
$1,307.00
Bed
3
Bath
2
Stories
1
Garage
1
Depth
52'
Width
40'

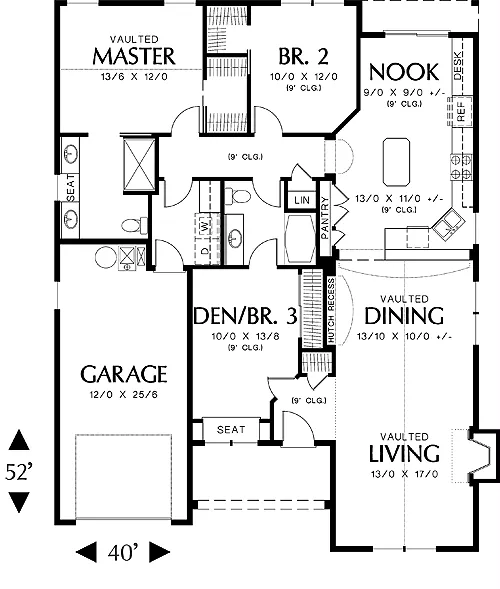

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

Wonderfully symmetric, this plan is smaller in size but huge in its appeal. Board-and-batten siding with stone accents at the foundation join an arched and columned entry with dormer window for a superb visual effect. The floor plan makes the most of a narrow footprint, putting living areas to the front and bedrooms to the back. Both the living and dining rooms are vaulted. The living room features a warming fireplace; the dining room has a recessed niche to hold a hutch and is separated from the kitchen by a 42 arched counter. Extras in the kitchen include a built-in desk, an island and a large pantry. The den (or make it a family bedroom) has a window seat with flanking built-in shelves overlooking the front porch. A walk-through hall bath serves Bedroom 2, which has a walk-in closet. The master suite contains a vaulted salon and a bath with window seat and dual lavatories. A service alcove opening to the garage has space for a washer and dryer.



FEATURES & DETAILS

Kitchen features
Kitchen Island
Nook / Breakfast Area
Bedroom features
Double Vanity Sink
Primary Bdrm Main Floor
Walk-in Closet
Exterior features
Covered Front Porch
Front Porch
Foundation Options
Basement
Crawlspace
Slab
Lot Options
Suited for narrow lot
Additional features
Dining Room
Fireplace
Foyer
Great Room
Laundry 1st Fl
Open Floor Plan
Vaulted Ceilings
Garage Location
Front
Garage Options
Attached
Front-entry
1,569 Ft
2
Total Heated
3
Bedrooms
2
Bathrooms
1
Garage
1
Stories
40' 0"
Width
52' 0"
Depth
22' 0"
Height
VARIES' 0"
Main Floor Ceiling
2x6
Framing
Truss
Roof Framing
12/12
Primary Roof Pitch
6/12
Secondary Roof Pitch
Single
Dwelling Number
None
Bonus Access

Unheated Living Space
325 Ft
2
Garage
91 Ft
2
Porch


Plan Package Options

 Select Plan Package
$1,307
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,307
$1,507
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,507
$1,557
5 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

$1,557
$2,614
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$2,614
 Need To Reverse Plan? (Optional)
$225
Readable Reverse

Reverse house plans with readable text and dimensions

$225
  Select Foundation Option
  Add-Ons (Optional)

Free Ground shipping within the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your plan

Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
