HOUSE PLANS
START AT $1,680
SQ FT
5,257
BEDS
5
BATHS
5.5
STORIES
2
CARS
3
WIDTH
88' 2"
DEPTH
103' 6"

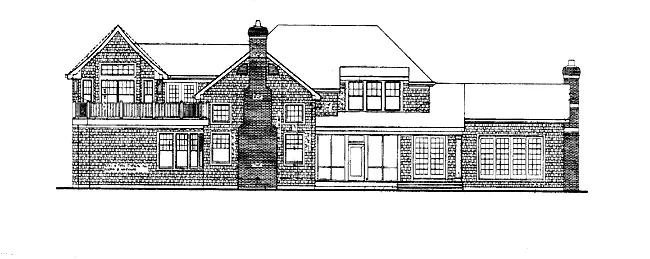

Front Rendering Rear Elevation
© copyright by designer
Photographs may reflect modified home | View all 2 images
SQ FT
5,257
BEDS
5
BATHS
5.5
STORIES
2
CARS
3

Details & Features
Reverse Plan
View All 2 Images
Print Plan
Recent Plans
Advanced Search
Explore Architect Preferred Products For This Plan >



House Plan 5569: WESTHAMPTON I

This two story craftsman inspired traditional home is luxuriant throughout, from it's appealing exterior to it's stunning interior. It features two master suites, one on each floor, the upper one with a deck to capture a view. Both feature spacious, compartmented baths and dual walk-in closets. The...  Read more >
Modify This Home Plan
Cost To Build Estimate
Preferred Products
View Plan Package Options
HOUSE PLANS
START AT $1,680
Modify This Plan
Cost To Build
Details & Features
Reverse Plan
View All 2 Images
Print Plan
Recent Plans
Advanced Search
Explore Architect Preferred Products For This Plan >
Click to Zoom In on Floor Plan
Floor Plans

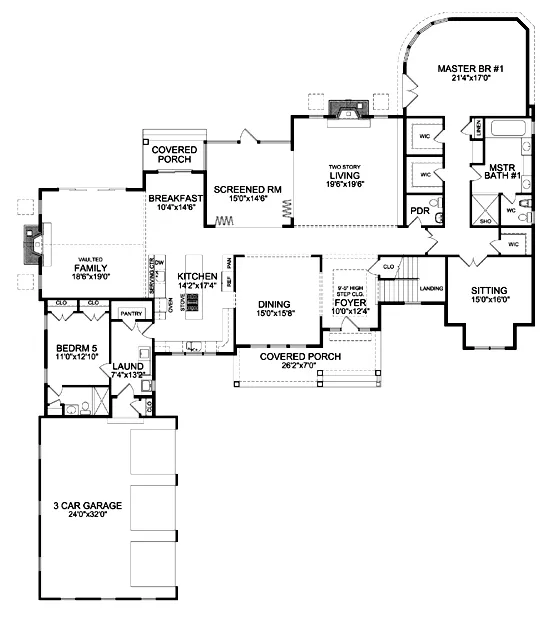

First Floor Plan

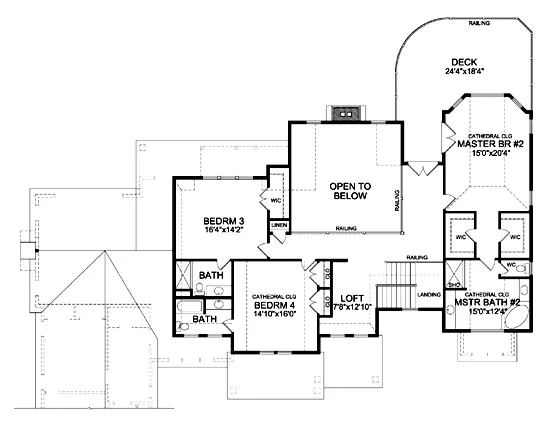

Second Floor Plan
© copyright by designer
Plan Packages
 Select Plan Package
PDF Bid Set

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

PDF Bid Set
PDFs NOW!™
Digital set of plans for bidding purposes only
 $1,325
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build
PDFs NOW!™
Most recommended package
 $1,680
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets
Five printed sets of house plans
 $1,800
8 Printed Sets

Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

8 Printed Sets
Eight printed sets of house plans
 $1,910
Reproducible Vellum Set
Although most changes can be made directly on the blueprints by "red-lining", if the proposed changes are significant, i.e.large additions, structural changes, major roofline or facade changes, this set may be used to make changes via a local professional, or your builder. Although the PDF Construction Set can accomplish the same purpose, some may prefer to make changes by hand drawing, which the Reproducible is suited for. After changes are made you may print up to 10 sets, for the construction of one home only. An online license will be completed during checkout.
Reproducible Vellum Set
A modifiable set for large changes.
 $1,940
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Build
2D electronic editable computer files
 $2,795
 Need To Reverse This Plan? (Optional)

Readable Reverse

Reverse house plans with readable text and dimensions

Readable Reverse
Reverses house plans with readable text and dimensions
 $350
 Select Foundation Option
 Add-Ons (Optional)
Subtotal:
$0
Free Shipping
IMPORTANT INFO BEFORE YOU BUY
Features:
View All Plan Features
Kitchen features
Country Kitchen
Kitchen Island
Nook / Breakfast Area
Peninsula / Eating Bar
Walk-in Pantry
Bedroom features
2 Master Suites
Double Vanity Sink
Guest Suite
His and Hers Master Closets
Master Bdrm Main Floor
Master Bdrm Upstairs
Separate Tub and Shower
Sitting Area
Split Bedrooms
Additional features
Dining Room
Family Room
Fireplace
Formal LR
Foyer
Great Room
Laundry 1st Fl
Loft / Balcony
Open Floor Plan
Vaulted Ceilings
Exterior features
Covered Front Porch
Covered Rear Porch
Front Porch
Rear Porch
Screened Porch/Sunroom
Garage Location
Front
Garage Options
Attached
Side-entry
Foundation Options
Crawlspace
Lot Options
Suited for view lot

Hide Plan Features
Details:
View All Plan Details
5,257 Ft
2
Total Heated:
3,490 Ft
2
1st Floor:
1,767 Ft
2
2nd Floor:
5
Bedrooms:
5.5
Bathrooms:
3
Garage:
2
Stories:
88' 2"
Width:
103' 6"
Depth:
29' 4"
Height:
9.5
Main Floor Ceiling:
8.1
Upper Floor Ceiling:
2x6
Framing:
Stick
Roof Framing:
12
Primary Roof Pitch:
9
Secondary Roof Pitch:
6
Teritary Roof Pitch:
Single
Dwelling Number:
Unheated Living Space
800 Ft
2
Garage:
251 Ft
2
Porch:
410 Ft
2
Deck:
Exterior Styles
Beach
Craftsman
Traditional
Collections
Empty Nester
In-Law Suite
Luxury
Old House Classics
Open Floor Plan
Outdoor Living
Split Bedroom

Hide Plan Details
Best Price Guarantee

If you find the same house plan (modifications included!) and package for less on another site, show us the URL and we'll give you the difference plus an additional 5% back.

100% Satisfaction Guarantee

We offer a one-time, 14-day exchange policy for unused, non-electronic plan packages in the event you aren't satisfied with your first selection.
