House Plan 5125: WESTCHESTER

This luxury chateau home plan brings your dreams to your door step. The two-story foyer offers plenty of open views. The curved staircase winds up to the second story. The living and dining rooms offer large decorative pillars to divide them from the foyer.  Read more >

House Plan Details

Sq. Ft.
5,518
Beds
5
Baths
5.0
Stories
2
Garages
3
Width
107' 0"
Depth
90' 0"
1st Floor
3,770
2nd Floor
1,748
Garage
1,073
Porch
97
Select Plan Package
Plan PDF Package
$2420
Select Foundation Options
$0
Slab
$0
Optional Add-Ons
Subtotal: $2420

PLAN IMAGES

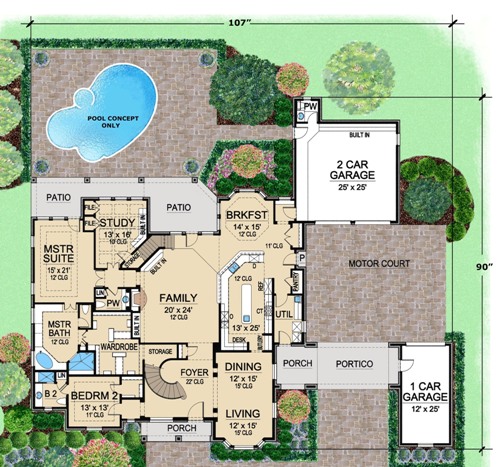

First Floor

First Floor
© copyright by designer

Plan Details

Basic Information
Bedrooms: 5
Bathrooms: 5.0
Garage: 3
Stories: 2
Exterior Style
Traditional
Dimensions
Width: 107' 0"
Height: 35' 0"
Depth: 90' 0"
Heated Living Space
Total Sq. Ft: 5,518
1st Floor: 3,770
2nd Floor: 1,748
Unheated Living Space
Garage: 1,073
Porch: 97
Deck: 150
Patio: 436
Ceiling
Upper Ceiling Ft: 9
Main Ceiling Ft: 10
Framing Information
Framing: 2x4
Roof Framing: Stick
Bedroom Features
Master Bdrm Main Floor
Separate Tub and Shower
Kitchen Features
Kitchen Island
Nook / Breakfast Area
Additional Room Features
2 Story Volume
Arches
Dining Room
Family Room
Fireplace
Formal LR
Foyer
Home Office
Laundry 1st Fl
Library/Media Rm
Open Floor Plan
Vaulted Ceilings
Garage Location
Side
Garage Features
Attached
Side-entry
Lot Features
Roof Pitch
Primary: 12
Secondary: 7
Dormer: 12
