House Plan 5239: West Bridgewater

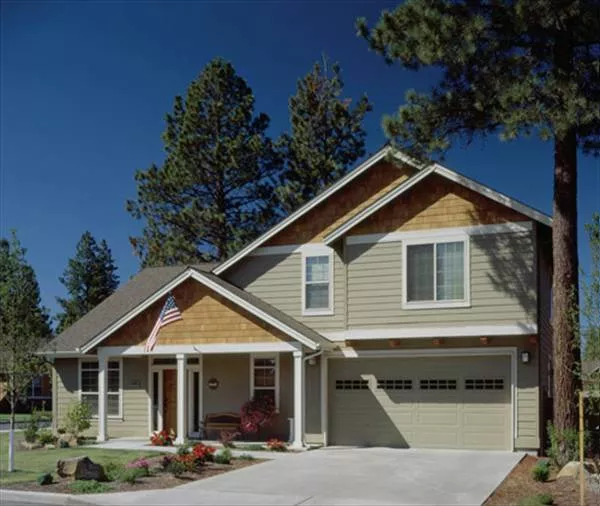

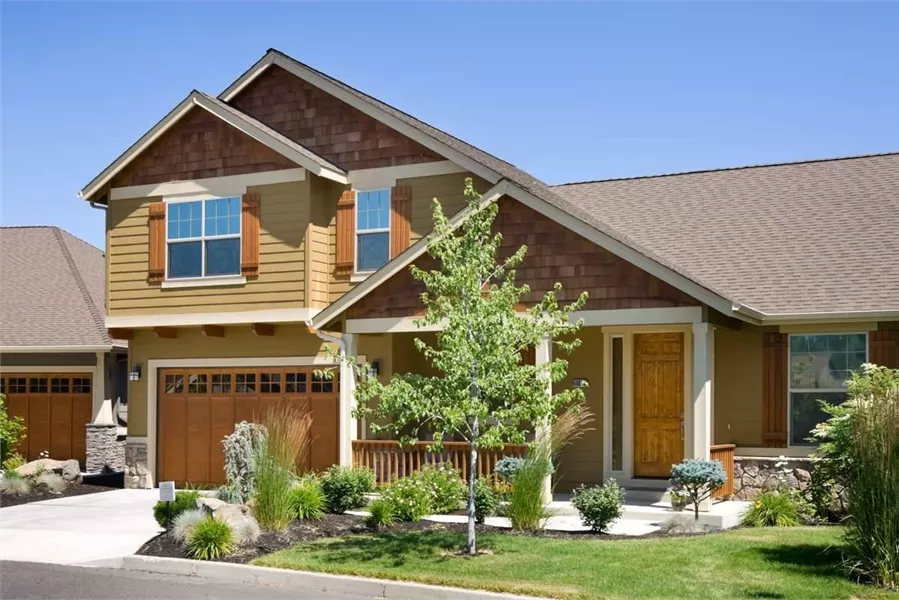

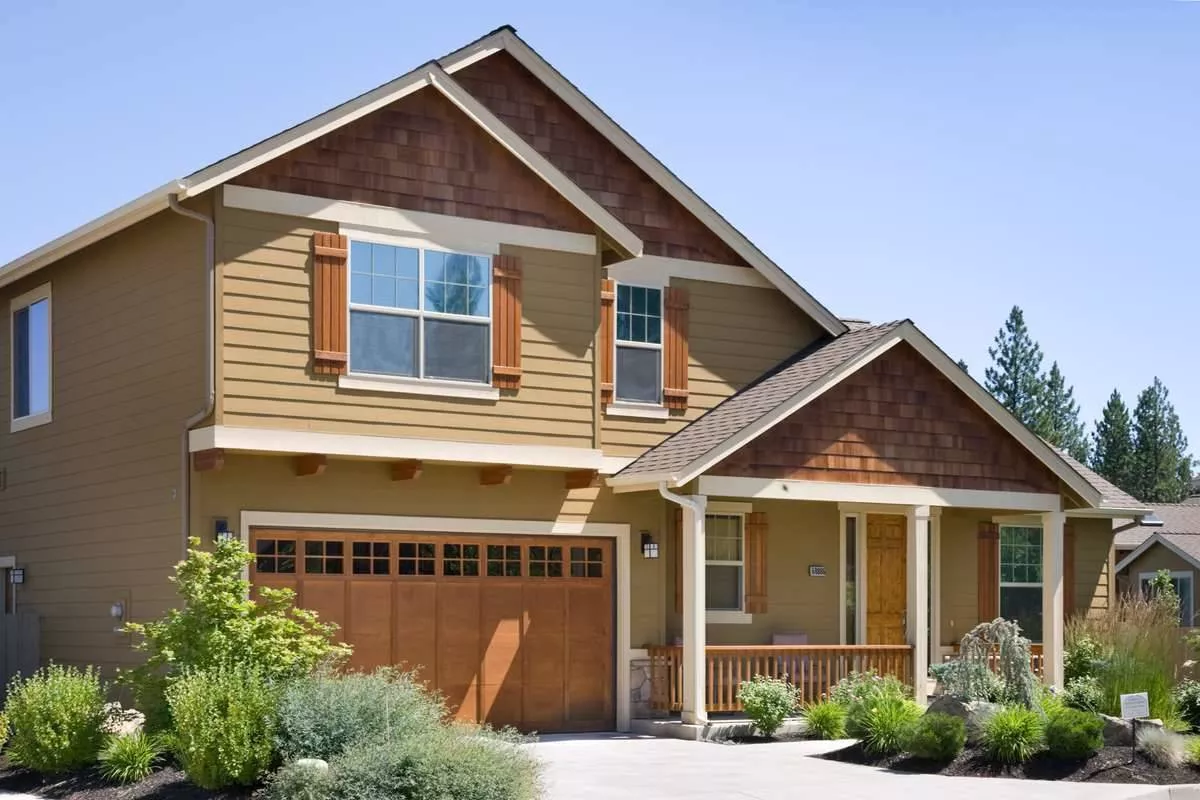

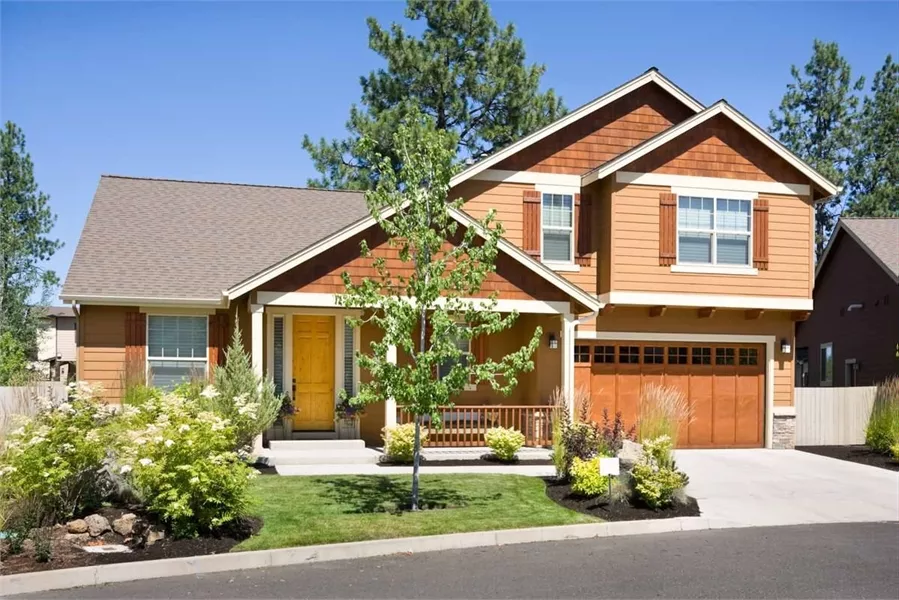

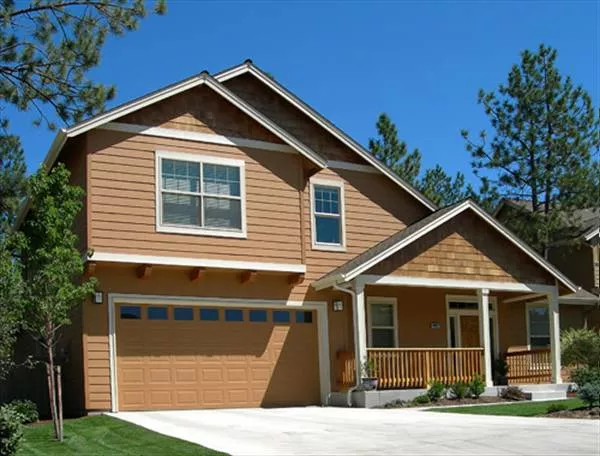

Start with Craftsman basics, add an upper level and mix in up-to-date floor planning and youll have a plan as exciting as this one. Lap siding and cedar shingles dress the exterior. The interior is bright with windows and open, with sloped and vaulted ceilings.  Read more >

House Plan Details

Sq. Ft.
2,296
Beds
3
Baths
2.1
Stories
2
Garages
3
Width
50' 0"
Depth
52' 6"
1st Floor
1,464
2nd Floor
832
Bonus
285
Garage
620
Select Plan Package
PDF Files - Single Build
$1124
Select Foundation Options
$0
Crawlspace
$0
Optional Add-Ons
Subtotal: $0

PLAN IMAGES

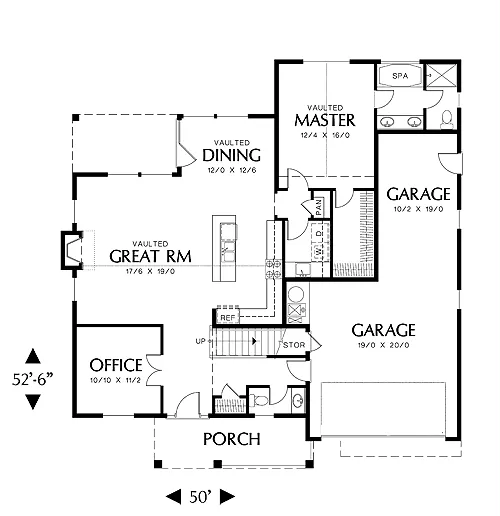

First Floor Plan

First Floor Plan
© copyright by designer

Plan Details

Basic Information
Bedrooms: 3
Bathrooms: 2.1
Garage: 3
Stories: 2
Exterior Style
Cottage
Country
Craftsman
Dimensions
Width: 50' 0"
Height: 27' 0"
Depth: 52' 6"
Heated Living Space
Total Sq. Ft: 2,296
1st Floor: 1,464
2nd Floor: 832
Bonus: 285
Unheated Living Space
Garage: 620
Porch: 111
Ceiling
Upper Ceiling Ft: Varies
Main Ceiling Ft: Varies
Framing Information
Framing: 2x6
Roof Framing: Truss
Bedroom Features
Double Vanity Sink
Master Bdrm Main Floor
Separate Tub and Shower
Walk-in Closet
Kitchen Features
Country Kitchen
Kitchen Island
Walk-in Pantry
Additional Room Features
Bonus Room
Fireplace
Foyer
Great Room
Home Office
Laundry 1st Fl
Open Floor Plan
Vaulted Ceilings
Workshop
Garage Location
Front
Garage Features
Oversized
Tandem
Lot Features
Suited for narrow lot
Roof Pitch
Primary: 7/12
