HOUSE PLANS
START AT $1,515
SQ FT
4,045
BEDS
4
BATHS
4.5
STORIES
1
CARS
3
WIDTH
91'
DEPTH
77' 10"
© copyright by designer
Photographs may reflect modified homes.
SQ FT
4,045
BEDS
4
BATHS
4.5
STORIES
1
CARS
3



House Plan 4475: Wellington Manor

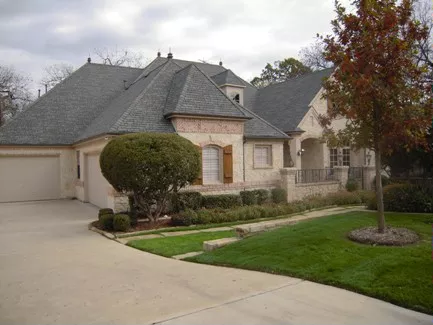

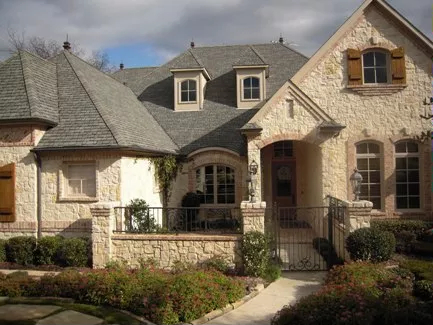

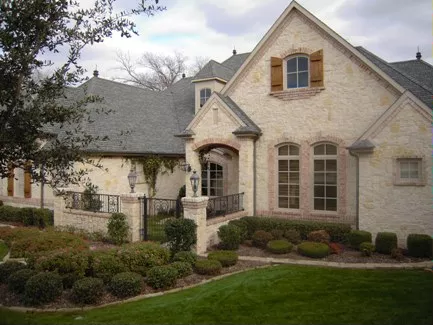

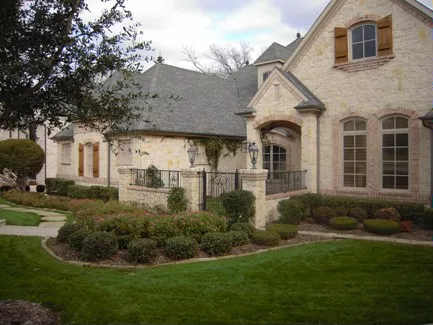

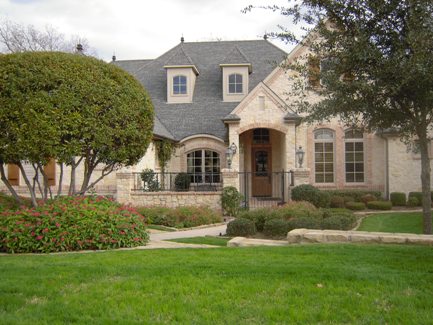

A courtyard and fountain adorn the front of this elegant luxury home, while the private porch leads to the vaulted foyer. The stunning foyer is flanked by the quiet study with coffered ceiling and storage closet, and the formal dining room with tray ceiling and butlery for ease in serving. The family room offers built-ins and a corner warming fireplace which will help keep this area cozy. Access t...  Read more >

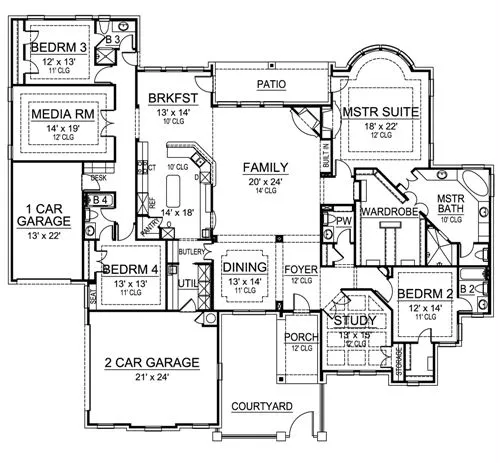

Click to Zoom In on Floor Plan

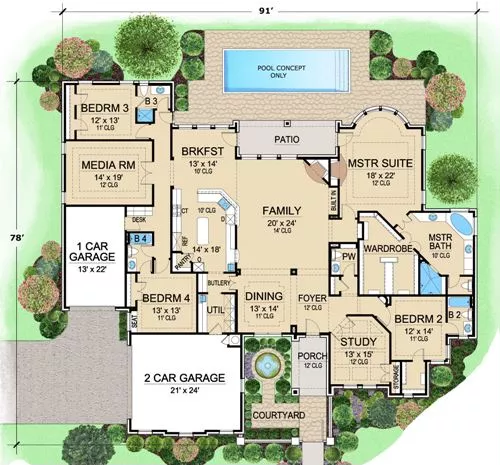

Floor Plans
© copyright by designer
Plan Packages
 Select Plan Package

PDF Single Build


Digital plans emailed to you in PDF format allowing minor changes, printing copies, and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build
Most recommended package
$1,515

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets
Five printed sets of house plans
$1,715

CAD Single Use


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Use
2D electronic editable computer files
$2,275
 Need To Reverse This Plan? (Optional)

Readable Reverse


Reverse house plans with readable text and dimensions

Readable Reverse
Reverses house plans with readable text and dimensions
$175
 Select Foundation Option
 Add-Ons (Optional)
Subtotal:
$0
Free Shipping
Features:
View All Plan Features
Kitchen features
Butler's Pantry
Country Kitchen
Kitchen Island
Nook / Breakfast Area
Peninsula / Eating Bar
Walk-in Pantry
Bedroom features
Double Vanity Sink
Master Bdrm Main Floor
Separate Tub and Shower
Sitting Area
Walk-in Closet
Lot features
Suited for view lot
Additional features
2 Story Volume
Arches
Dining Room
Family Room
Fireplace
Foyer
Home Office
Laundry 1st Fl
Library/Media Rm
Mud Room
Open Floor Plan
Vaulted Ceilings
Garage Location
Front
Garage Features
Attached
Front-entry
Side-entry

Hide Plan Features
Details:
View All Plan Details
5,187 Ft
2
Total Structure:
4,045 Ft
2
Total Heated:
4
Bedrooms:
4.5
Bathrooms:
3
Garage:
1
Stories:
91' 0"
Width:
77' 10"
Depth:
34' 1"
Height:
10
Main Floor Ceiling:
2x4
Framing:
Stick
Roof Framing:
12
Primary Roof Pitch:
18
Dormer Roof Pitch:
Single
Dwelling Number:
Unheated Living Space
881 Ft
2
Garage:
101 Ft
2
Porch:
160 Ft
2
Patio:
Exterior Styles
European
Traditional

Hide Plan Details
