HOUSE PLANS
START AT $575
SQ FT
4,960
BEDS
4
BATHS
4.5
STORIES
2
CARS
3
WIDTH
77' 6"
DEPTH
92'
© copyright by designer
Photographs may reflect modified homes.
SQ FT
4,960
BEDS
4
BATHS
4.5
STORIES
2
CARS
3



House Plan 3150: Waterton

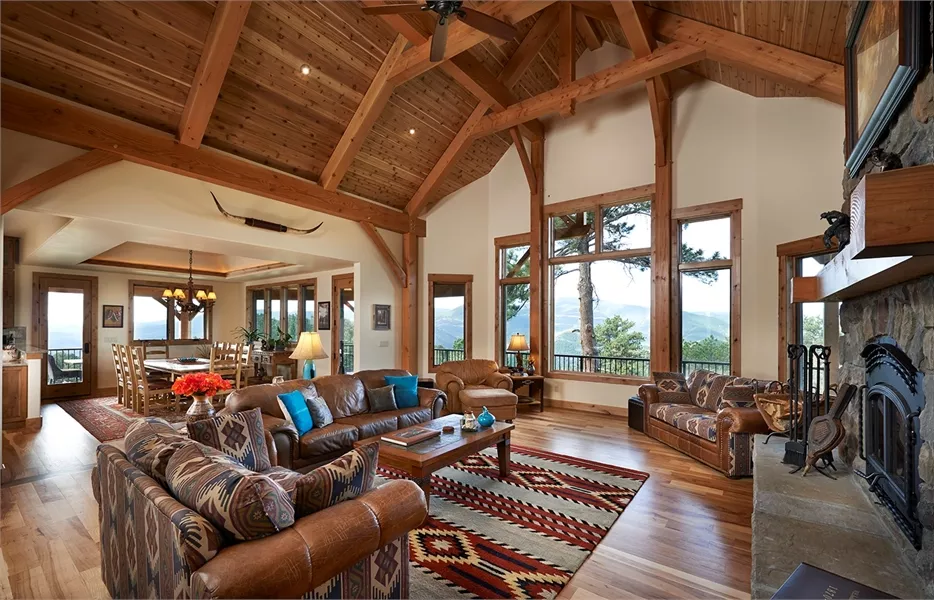

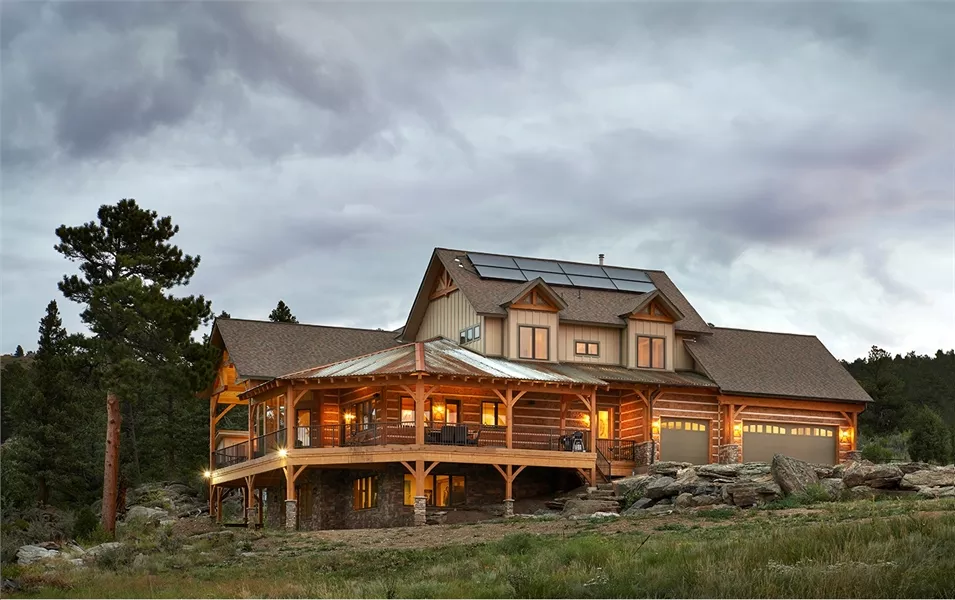

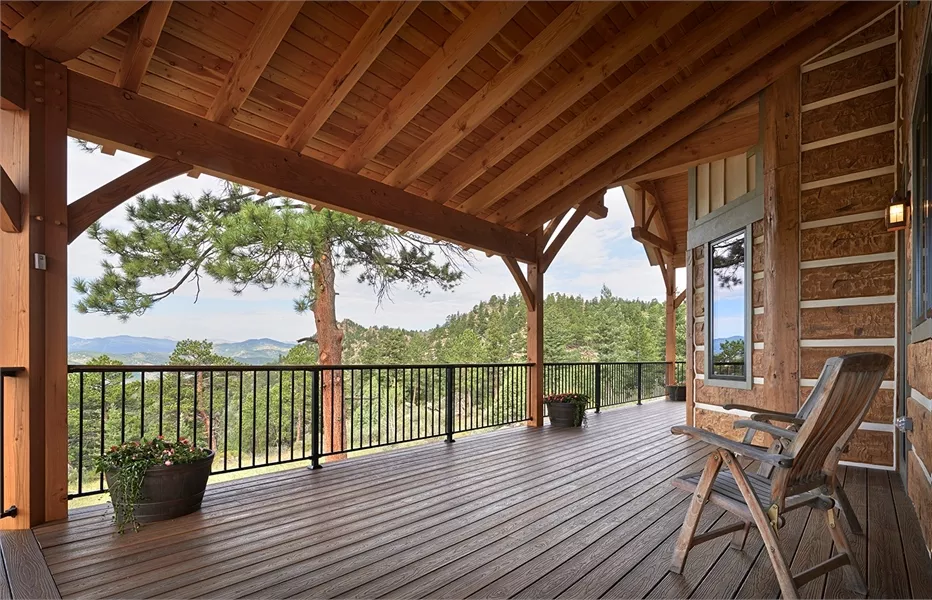

Gable details lend a Craftsman feel to this four-bedroom, 4.5 bath house plan, with a luxurious total of 4,960 square feet of living space. A fireplace warms the central great room in this home plan, which flows into the dining room and the island kitchen for easy entertaining. Expand any party to the wraparound porch. In the posh master bedroom, you'll appreciate the fireplace and the porch acces...  Read more >
Click to Zoom In on Floor Plan

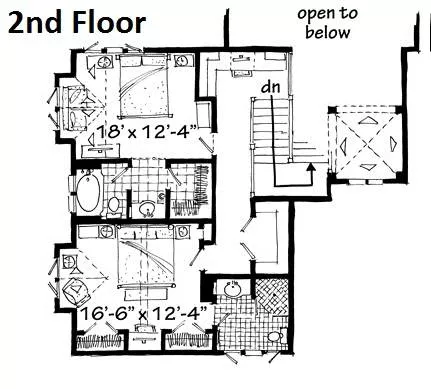

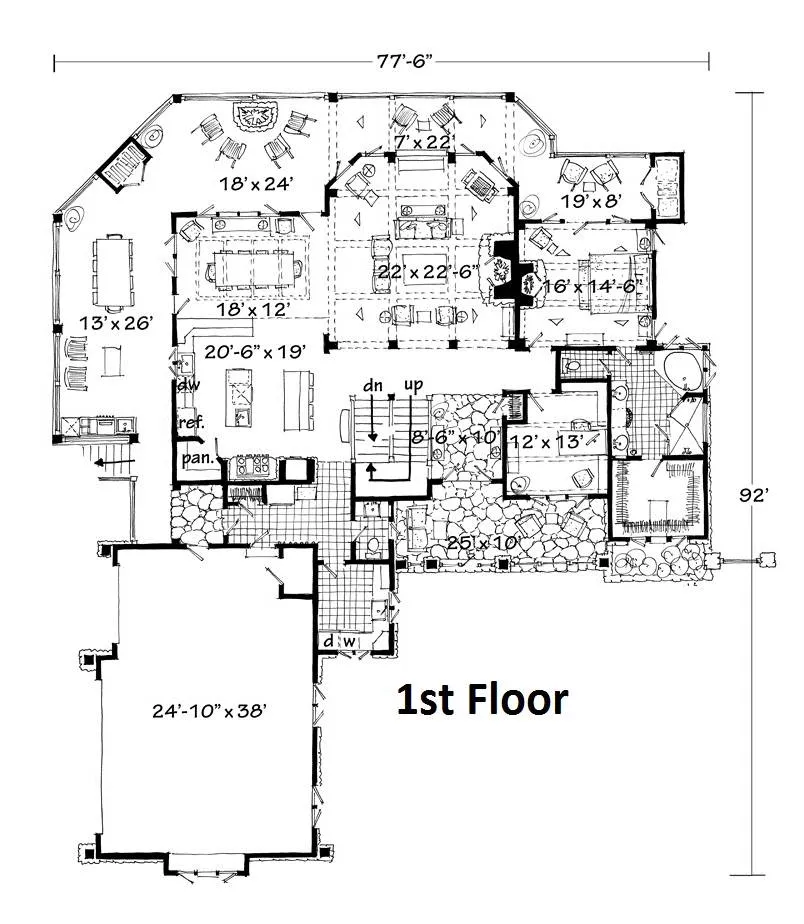

Floor Plans
© copyright by designer
Plan Packages
 Select Plan Package

PDF Bid Set


Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

PDF Bid Set
Digital set of plans for bidding purposes only
$1,500

PDF Single Build


Digital plans emailed to you in PDF format allowing minor changes, printing copies, and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build
Most recommended package
$3,000

CAD Single Use


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Use
2D electronic editable computer files
$4,000
 Need To Reverse This Plan? (Optional)

Readable Reverse


Reverse house plans with readable text and dimensions

Readable Reverse
Reverses house plans with readable text and dimensions
$975
 Select Foundation Option
 Add-Ons (Optional)
Subtotal:
$0
Free Shipping
If a foundation or optional add-on is not listed, please live chat, email or call for availability.
Features:
View All Plan Features
Kitchen features
Country Kitchen
Kitchen Island
Walk-in Pantry
Bedroom features
Double Vanity Sink
Separate Tub and Shower
Walk-in Closet
Additional features
Dining Room
Exercise Room
Family Room
Fireplace
Great Room
Laundry 1st Fl
Library/Media Rm
Mud Room
Open Floor Plan
Storage Space
Vaulted Ceilings
Garage Features
Attached
Side-entry

Hide Plan Features
Details:
View All Plan Details
8,060 Ft
2
Total Structure:
4,960 Ft
2
Total Heated:
2,450 Ft
2
1st Floor:
915 Ft
2
2nd Floor:
1,595 Ft
2
Lower Floor:
4
Bedrooms:
4.5
Bathrooms:
3
Garage:
2
Stories:
77' 6"
Width:
92' 0"
Depth:
32' 2"
Height:
10
Main Floor Ceiling:
9
Upper Floor Ceiling:
2x6
Framing:
Combination
Roof Framing:
10/12
Primary Roof Pitch:
4/12
Secondary Roof Pitch:
Single
Dwelling Number:
Unheated Living Space
970 Ft
2
Garage:
200 Ft
2
Porch:
91 Ft
2
Deck:
385 Ft
2
Patio:
Exterior Styles
Craftsman
Lake
Traditional

Hide Plan Details
