Search Plans


Sq Ft
12,720 FT²

Beds
6

Baths
6.5

Stories
2

Garage
5

Depth
105'

Width
152'
From
$7,995.00
© copyright by designer
View All 38 Images | Photographs may reflect modified home
Sq Ft
12,720 FT²
From
$7,995.00
Beds
6
Baths
6.5
Stories
2
Garage
5
Depth
105'
Width
152'

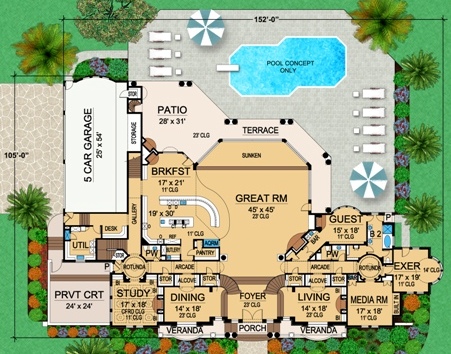

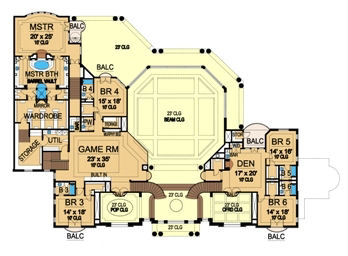

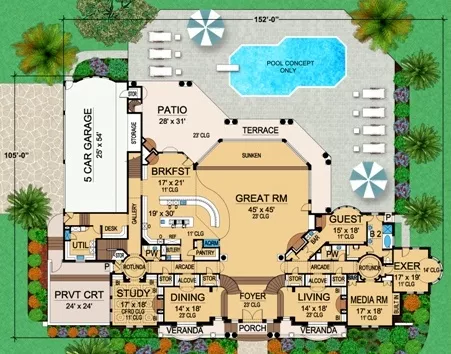

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

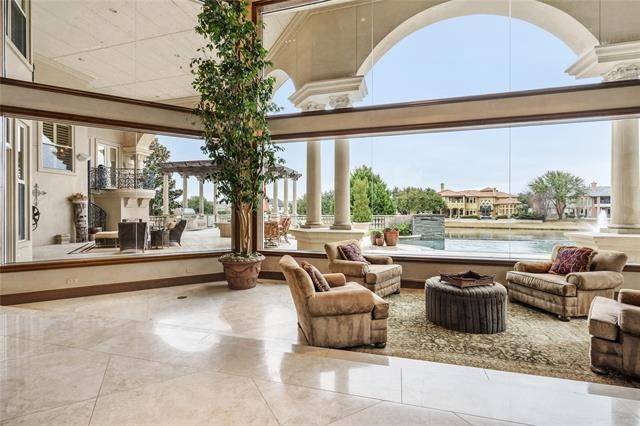

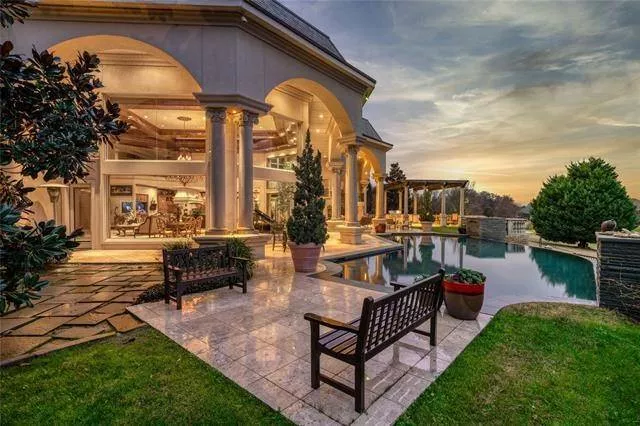

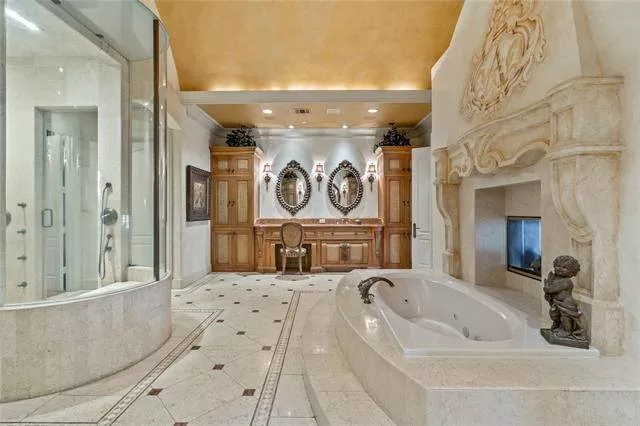

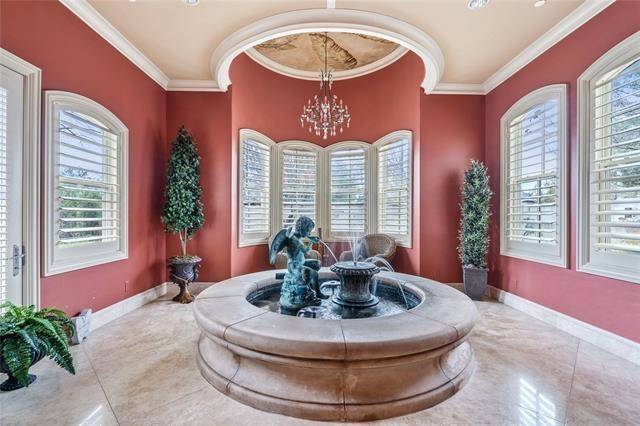

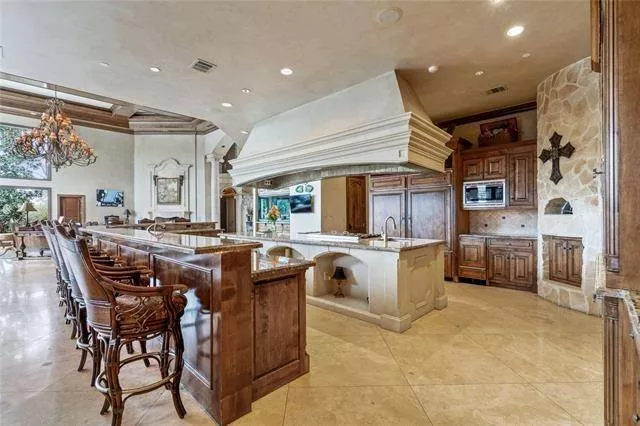

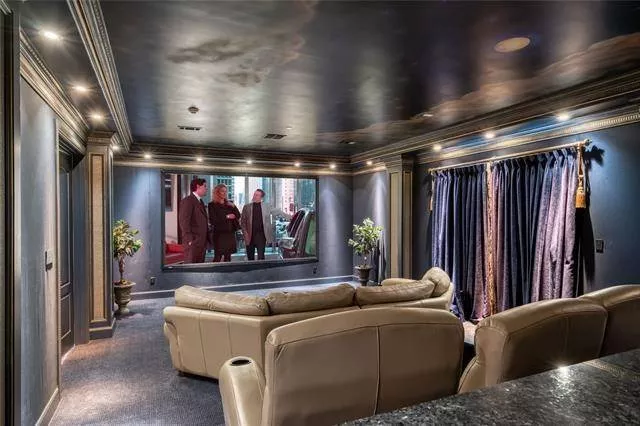

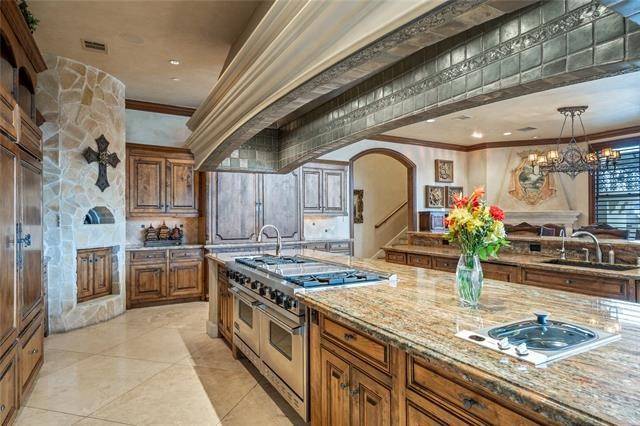

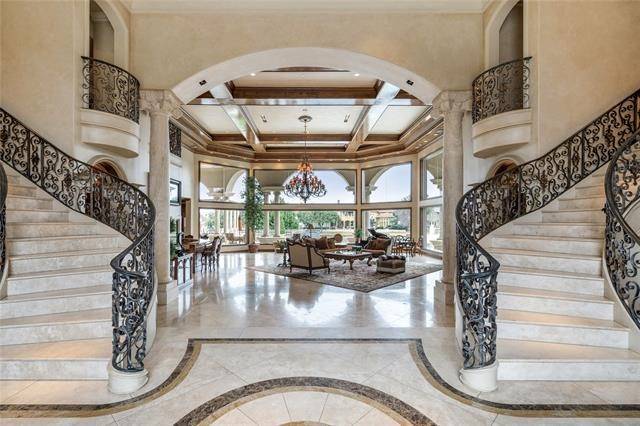

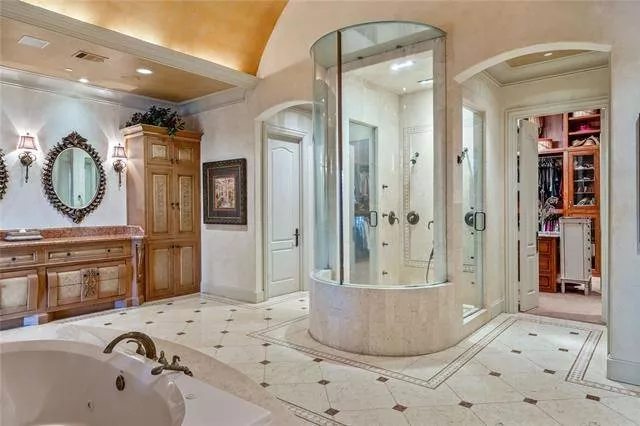

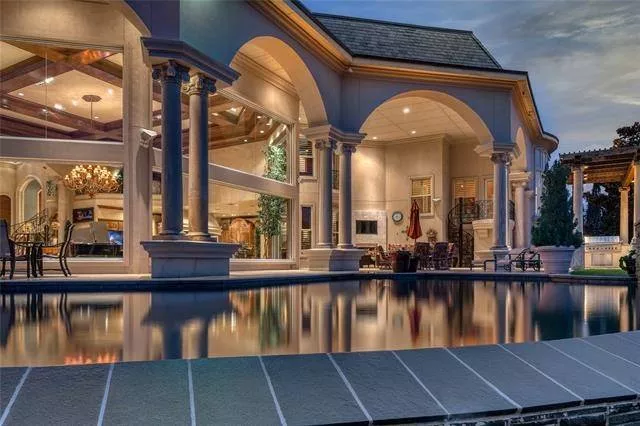

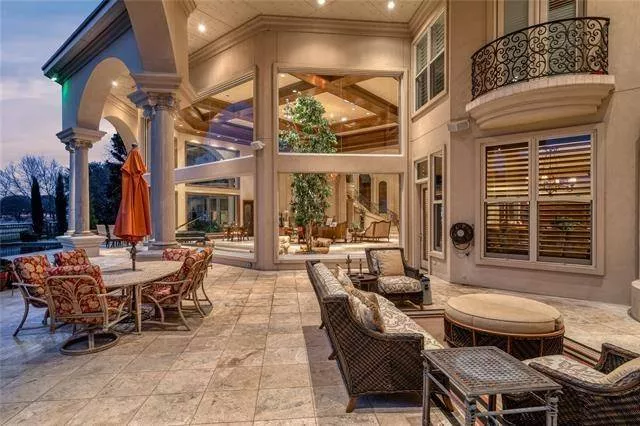

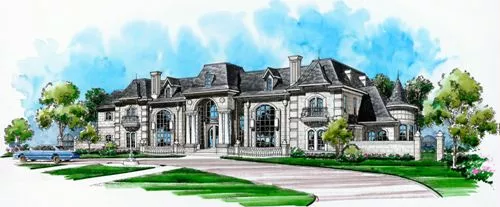

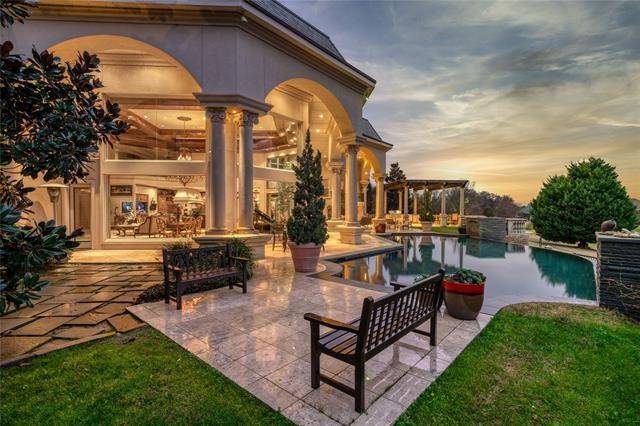

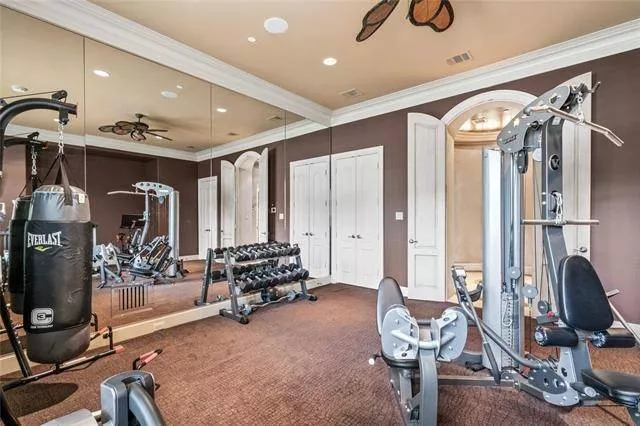

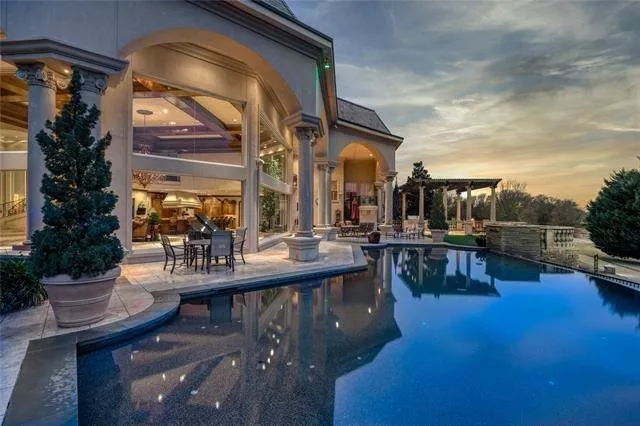

This magnificent Mediterranean luxury mansion house plan is stunning. Balconies, rotundas, large decorative pillars, and stunning ceiling treatments will draw you in. When you enter the two-story foyer, the double curved staircases will greet you. A few steps down to the right will place you in the living room with its fireplace flanked by built-ins. There is a veranda to the front of the living room and the alcove to the rear that leads to the arcade. Through the rotunda, you can reach the exercise room with circular windows and access to the lush landscaped yard. Between the exercise and living rooms is the media room with bar, closet and built-ins. At the back of this cluster is a guest room with bayed windows, private bar, and full lavish bath with his and hers vanities, walk-in closet, separate shower and tub. The large sunken great room with its 23 foot ceiling provides access to and views of the terrace. The family gathering area consists of the kitchen, breakfast area and great room. The great room's warming fireplace helps keep this area cozy. The gourmet kitchen provides a free-standing island for additional counter space, with a breakfast bar that can be shared with the great room and breakfast area. The breakfast area also offers a warming fireplace and access to the terrace. An aquarium sits between the kitchen and great room. To the left of the foyer and in the front of this house plan, is the formal dining room with the veranda to the front and the alcove to the rear, through the alcove to the left is the rotunda that leads to the quiet coffered ceiling study with built-ins, built-ins, built-ins - and a warming fireplace. A private court sits outside the study. A utility room with built-in desk, galleys, plenty of storage spaces, a five-car side-entry garage, and spiral staircase that goes to the master suite's second story balcony complete this main level.. On the second level of this luxury mansion house plan, four family bedrooms with walk-in closets, full baths, and balconies, share space with a den, game room with built-ins and a bar, and the luxurious master suite. The luxurious master suite boasts a bayed window, trey ceiling, lavish master bath with barrel vaulted ceiling, his and hers vanities, separate shower, whirlpool, and large wardrobe with mirror, built-ins, storage and a utility room. This completes this luxury mansion house plan.


FEATURES & DETAILS

Kitchen features

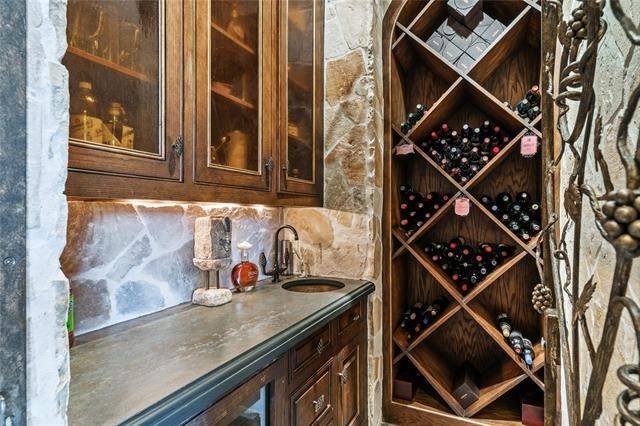

Butler's Pantry
Country Kitchen
Kitchen Island
Nook / Breakfast Area
Bedroom features
Guest Suite
Primary Bdrm Upstairs
Separate Tub and Shower
Sitting Area
Exterior features
Covered Front Porch
Covered Rear Porch
Deck
Front Porch
Rear Porch
Foundation Options
Slab
Additional features
2 Story Volume
Arches
Dining Room
Exercise Room
Family Room
Fireplace
Formal LR
Foyer
Home Office
Laundry 1st Fl
Library/Media Rm
Loft / Balcony
Open Floor Plan
Vaulted Ceilings
Garage Location
Side
Garage Options
Attached
Side-entry
15,946 Ft
2
Total Structure
12,720 Ft
2
Total Heated
7,689 Ft
2
1st Floor
5,031 Ft
2
2nd Floor
6
Bedrooms
6.5
Bathrooms
5
Garage
2
Stories
152' 0"
Width
105' 0"
Depth
35' 0"
Height
11' 0"
Main Floor Ceiling
10' 0"
Upper Floor Ceiling
2x6
Framing
Stick
Roof Framing
18
Primary Roof Pitch
24
Secondary Roof Pitch
Single
Dwelling Number

Unheated Living Space
1,514 Ft
2
Garage


Plan Package Options

 Select Plan Package
$7,375
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$7,375
$8,120
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$8,120
$9,175
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$9,175
 Need To Reverse Plan? (Optional)
$400
Readable Reverse

Reverse house plans with readable text and dimensions

$400
  Select Foundation Option
  Add-Ons (Optional)
INCLUDED WITH YOUR PURCHASE

Free Ground shipping in the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your plan

Home Building & Product Ideas Organizer

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
