About This Plan

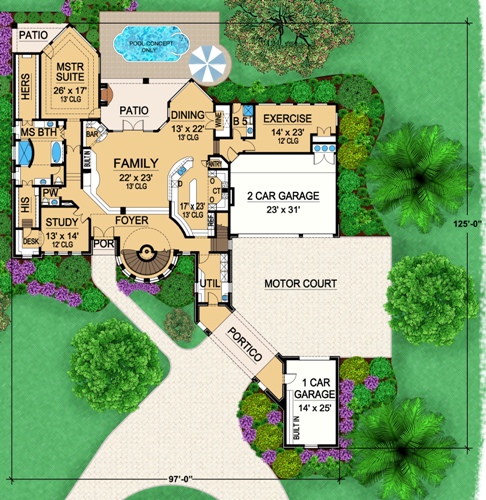

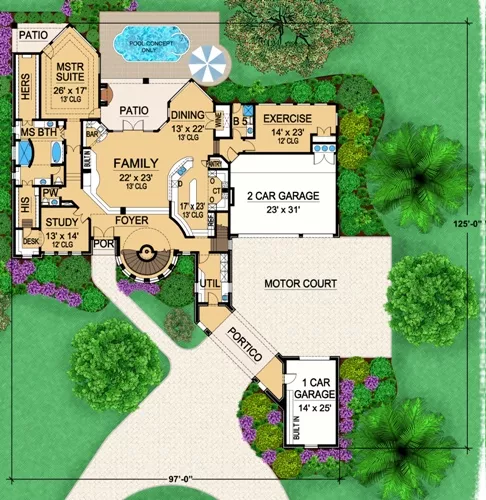

This Mediterranean luxury mansion is stunning. The elegant foyer's spiral staircase makes for the rotunda-tower look to the exterior of this luxury mansion house plan. A quiet study with built-in desk and access to the master suite sits in the front corner of this home. The luxurious master suite boasts a private patio, trey ceiling, lavish master bath with his and hers vanities, separate shower, whirlpool, and a large wardrobe. The family room, dining room and kitchen are separated from one another only by the breakfast bar in the kitchen. A free-standing island provides extra counter space. The pantry and kitchen provide ease in serving those family dinners. Access to the patio with fireplace and (concept) pool can be achieved from the family room. Two garages, a two-car and a one-car garage sit on either side of the motor court. An exercise area facing the lush landscape out back completes the main level of this house plan. Upstairs, three family bedrooms with walk-in closets and full baths share space with a game room with built-ins, balcony access and a media room. A second balcony and viewing room complete this Mediterranean luxury mansion house plan.


FEATURES & DETAILS

Kitchen features
Country Kitchen
Kitchen Island
Bedroom features
Double Vanity Sink
Master Bdrm Main Floor
Separate Tub and Shower
Exterior features
Covered Front Porch
Covered Rear Porch
Deck
Front Porch
Rear Porch
Foundation Options
Slab
Additional features
2 Story Volume
Arches
Dining Room
Family Room
Fireplace
Foyer
Home Office
Laundry 1st Fl
Library/Media Rm
Open Floor Plan
Vaulted Ceilings
Wine Cellar
Garage Location
Side
Garage Options
Attached
Side-entry
8,774 Ft
2
Total Structure
6,391 Ft
2
Total Heated
3,950 Ft
2
1st Floor
2,441 Ft
2
2nd Floor
4
Bedrooms
5
Bathrooms
3
Garage
2
Stories
97' 0"
Width
125' 0"
Depth
36' 0"
Height
12' 0"
Main Floor Ceiling
9' 0"
Upper Floor Ceiling
2x6
Framing
Stick
Roof Framing
7
Primary Roof Pitch
7
Secondary Roof Pitch
Single
Dwelling Number

Unheated Living Space
1,246 Ft
2
Garage
30 Ft
2
Porch
261 Ft
2
Deck
430 Ft
2
Patio


Plan Package Options

 Select Plan Package
$2,965
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$2,965
$3,145
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$3,145
$4,455
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$4,455
 Need To Reverse Plan? (Optional)
$250
Readable Reverse

Reverse house plans with readable text and dimensions

$250
  Select Foundation Option
  Add-Ons (Optional)

Ground shipping within the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your house plan

Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.

BEST PRICE GUARANTEE

find the same house plan (modifications included!) and package for less on another site, show us the URL and we'll give you the difference plus an additional 5% back.

100% SATISFACTION GUARANTEE

We offer a one-time, 14-day exchange policy for unused, non-electronic plan packages in the event you aren't satisfied with your first selection.
