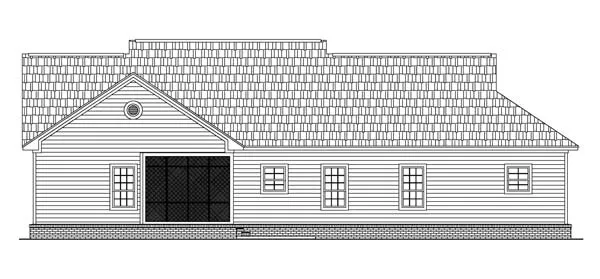

Front Elevation Rear Elevation
© copyright by designer
Photographs may reflect modified home | View all 2 images
SQ FT
2,003
BEDS
3
BATHS
2.5
STORIES
1
CARS
2

Details & Features
Reverse Plan
View All 2 Images
Print Plan
Recent Plans
Advanced Search
Explore Architect Preferred Products For This Plan >



House Plan 5744: The Winchester

Great features for a house of this size. Isolated master suite with jet tub, separate shower, large his and her walk-in closets, dual lavatories, and vanity. Large laundry room with plenty of space for storing/folding clothing and other goods. Expansive great room with gas log fireplace, vaulted ceiling, and easy access to the kitchen.  Read more >
Modify This Home Plan
Cost To Build Estimate
Preferred Products
View Plan Package Options
HOUSE PLANS
START AT $1,365
Modify This Plan
Cost To Build
Details & Features
Reverse Plan
View All 2 Images
Print Plan
Recent Plans
Advanced Search
Explore Architect Preferred Products For This Plan >

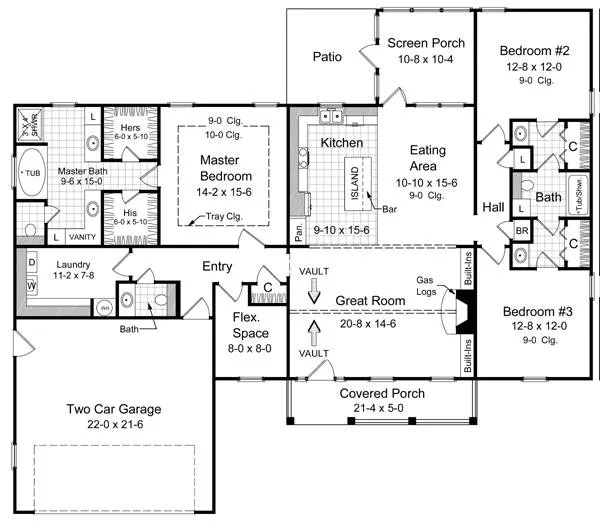

Click to Zoom In on Floor Plan
Floor Plans
Floorplan
© copyright by designer
Plan Packages
 Select Plan Package
PDF Bid Set

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

PDF Bid Set
Digital set of plans for bidding purposes only
 $1,215
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets
Five printed sets of house plans
 $1,365
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build
Most recommended package
 $1,465
5 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

5 Printed Sets + PDF
Digital plans plus 5 printed sets
 $1,540
Vellums
"Recommended" - For making minor changes to your house plans. Delivered on Reproducible Vellum.
Vellums
A vellums package
 $1,700
CAD Single Use

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Use
2D electronic editable computer files
 $1,990
 Need To Reverse This Plan? (Optional)

Readable Reverse

Reverse house plans with readable text and dimensions

Readable Reverse
Reverses house plans with readable text and dimensions
 $150
 Select Foundation Option
 Add-Ons (Optional)
Subtotal:
$0
Free Shipping
IMPORTANT INFO BEFORE YOU BUY
Features:
View All Plan Features
Kitchen features
Country Kitchen
Kitchen Island
Nook / Breakfast Area
Peninsula / Eating Bar
Bedroom features
Double Vanity Sink
His and Hers Master Closets
Master Bdrm Main Floor
Separate Tub and Shower
Split Bedrooms
Walk-in Closet
Additional features
Exercise Room
Fireplace
Great Room
Home Office
Laundry 1st Fl
Open Floor Plan
Exterior features
Covered Front Porch
Front Porch
Rear Porch
Screened Porch/Sunroom
Garage Location
Front
Garage Options
Attached
Front-entry
Oversized
Foundation Options
Basement
Crawlspace
Slab
Lot Options
Suited for corner lot
Suited for sloping lot
Suited for view lot

Hide Plan Features
Details:
View All Plan Details
2,003 Ft
2
Total Heated:
3
Bedrooms:
2.5
Bathrooms:
2
Garage:
1
Stories:
65' 0"
Width:
56' 8"
Depth:
22' 1"
Height:
9
Main Floor Ceiling:
2x4
Framing:
Stick
Roof Framing:
8/12
Primary Roof Pitch:
12:12
Dormer Roof Pitch:
Single
Dwelling Number:
None
Bonus Access:
Unheated Living Space
493 Ft
2
Garage:
225 Ft
2
Porch:
Exterior Styles
Country
Ranch
Traditional
Collections
Affordable
Builders
Empty Nester
First Home
Old House Classics
Open Floor Plan
Pet Lovers
Split Bedroom
Texas

Hide Plan Details
Best Price Guarantee

If you find the same house plan (modifications included!) and package for less on another site, show us the URL and we'll give you the difference plus an additional 5% back.

100% Satisfaction Guarantee

We offer a one-time, 14-day exchange policy for unused, non-electronic plan packages in the event you aren't satisfied with your first selection.

View Guarantee Details
