HOUSE PLANS
START AT $1,325
SQ FT
1,800
BEDS
3
BATHS
3
STORIES
1
CARS
2
WIDTH
63' 4"
DEPTH
53'
© copyright by designer
Photographs may reflect modified homes.   View all 4 photos
SQ FT
1,800
BEDS
3
BATHS
3
STORIES
1
CARS
2



House Plan 5723: The Hickory Lane

This is a great open plan with split-bedroom layout. The master suite has a trayed ceiling, large closet for him and her, jet tub, over-sized shower, and large vanity next to her closet. Enjoy the vaulted ceiling, gas logs, and built-ins in the great room. All bedrooms feature walk-in closets with their own private bath. Note that Bedroom 2 could be used as an “In-law suite”. A “Flex Space” is pro...  Read more >
Click to Zoom In on Floor Plan

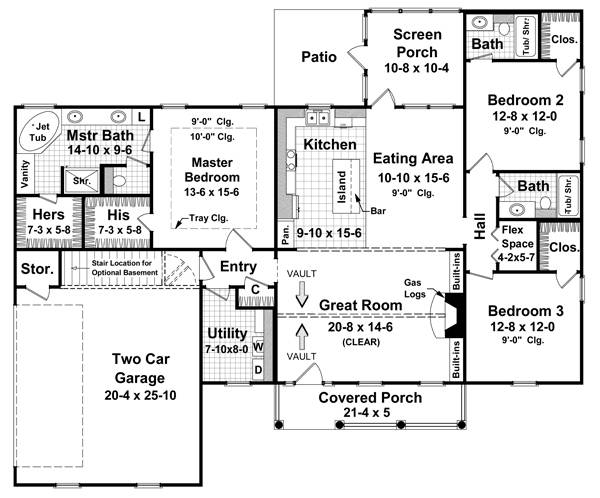

Floor Plans
© copyright by designer
Plan Packages
 Select Plan Package

PDF Bid Set


Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

PDF Bid Set
Digital set of plans for bidding purposes only
$1,175

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets
Five printed sets of house plans
$1,325

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build
Most recommended package
$1,425

5 Printed Sets + PDF


Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

5 Printed Sets + PDF
Digital plans plus 5 printed sets
$1,500

Vellums


"Recommended" - For making minor changes to your house plans. Delivered on Reproducible Vellum.
Vellums
A vellums package
$1,650

CAD Single Use


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Use
2D electronic editable computer files
$1,850
 Need To Reverse This Plan? (Optional)

Readable Reverse


Reverse house plans with readable text and dimensions

Readable Reverse
Reverses house plans with readable text and dimensions
$150
 Select Foundation Option
 Add-Ons (Optional)
Subtotal:
$0
Free Shipping
Features:
View All Plan Features
Kitchen features
Country Kitchen
Kitchen Island
Nook / Breakfast Area
Peninsula / Eating Bar
Bedroom features
Double Vanity Sink
His and Hers Master Closets
Master Bdrm Main Floor
Separate Tub and Shower
Split Bedrooms
Walk-in Closet
Lot features
Suited for sloping lot
Suited for view lot
Additional features
Dining Room
Exercise Room
Fireplace
Great Room
Home Office
Laundry 1st Fl
Open Floor Plan
Unfinished Space
Workshop
Garage Location
Side
Garage Features
Attached
Oversized

Hide Plan Features
Details:
View All Plan Details
1,800 Ft
2
Total Heated:
3
Bedrooms:
3
Bathrooms:
2
Garage:
1
Stories:
63' 4"
Width:
53' 0"
Depth:
22' 0"
Height:
9
Main Floor Ceiling:
2x4
Framing:
Stick
Roof Framing:
8/12
Primary Roof Pitch:
12:12
Dormer Roof Pitch:
Single
Dwelling Number:
None
Bonus Access:
Unheated Living Space
523 Ft
2
Garage:
22 Ft
2
Storage:
224 Ft
2
Porch:
Exterior Styles
Country
Ranch
Traditional
Collections
Affordable
Builders
Empty Nester
First Home
Open Floor Plan
Pet Lovers
Split Bedroom

Hide Plan Details
Reviews for Plan 5723
8/1/2017
Kay of Tulsa, OK
Customer Review:
The design choices are varied and of excellent quality. We are extremely satisfied with the plans. Any contact we had with the company was positive - courteous and very helpful with a knowledgeable staff.
