Sq Ft
4,629 FT²

Beds
4

Baths
4

Stories
2

Garage
3

Depth
76' 10"

Width
103' 9"

On Sale
$1,489.85
$1,795.00

Computer Rendering

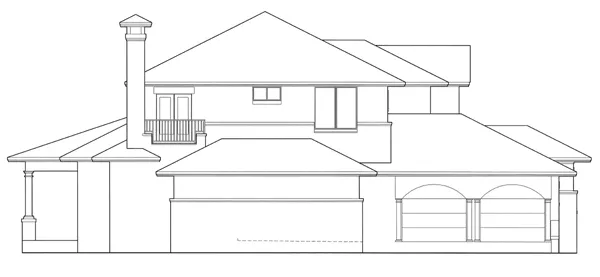

Left Elevation

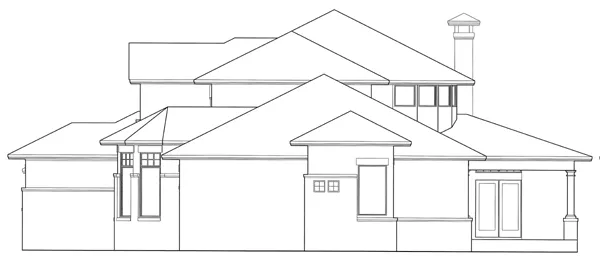

Right Elevation

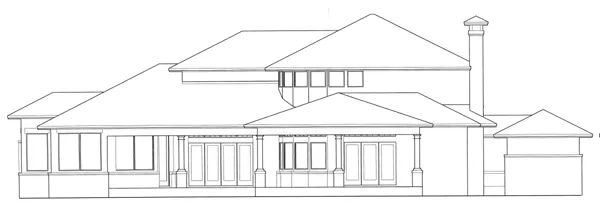

Rear Elevation

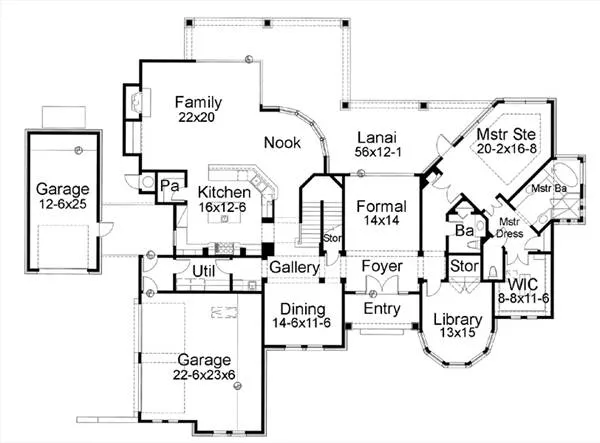

First Floor Plan

Second Floor Plan

View All 6 Images | Photographs may reflect modified home

Sq Ft

4,629 FT²

From

$1,489.85

Beds

Baths

Stories

Garage

Depth

76' 10"

Width

103' 9"

Modify

Cost Estimator

Sample Plan

Architect's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

First Floor Plan

Second Floor Plan

First Floor Plan

Second Floor Plan

About This Plan

This design easily provides a family of five with adequate space and still maintains a cozy appearance and feel. With an open Family/Kitchen/Nook, the house is provided with plenty of natural light. The Master Suite is a haven for parents, secluded from the rest of the house and including an elegant Master Bath and enormous walk in closet. The Rear Lanai is ideal for backyard entertainment. The Library features unique swinging bookcases which open to added storage and the large Game Room includes built in cabinets. With it's Californian meets Mediterranean style, it presents a unique and appealing appearance.

See All Plan Options

FEATURES & DETAILS

Exterior features

Rear Porch

Foundation Options

Basement
Crawlspace
Slab
Walkout Basement

4,629 Ft

Total Heated

2,955 Ft

1st Floor

1,656 Ft

2nd Floor

Bedrooms

Bathrooms

Garage

Stories

103' 9"

Width

76' 10"

Depth

31' 8"

Height

12' 0"

Main Floor Ceiling

9' 0"

Upper Floor Ceiling

2x4

Framing

Stick

Roof Framing

6/12

Primary Roof Pitch

4:12

Secondary Roof Pitch

Single

Dwelling Number

Unheated Living Space

986 Ft

Garage

90 Ft

Porch

713 Ft

Deck

Exterior Styles

Coastal

Mediterranean

Traditional

Collections

Luxury

Old House Classics

Plan Package Options

Important info before you buy

Select Plan Package

Sale: $1,490

PDF Single Build

~~$1,795~~

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

Sale: $1,490

Sale: $1,656

5 Printed Sets

~~$1,995~~

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

Sale: $1,656

Sale: $1,739

5 Printed Sets + PDF

~~$2,095~~

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

Sale: $1,739

Sale: $2,320

CAD Single Build

~~$2,795~~

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

Sale: $2,320

Sale: $2,897

CAD Unlimited Build

~~$3,490~~

2D electronic computer files, completely editable, for design professional use when making extensive modifications; multi-license allows unlimited builds

Sale: $2,897

Need To Reverse Plan? (Optional)

$245

Readable Reverse

Reverse house plans with readable text and dimensions

$245

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
