Sq Ft
4,436 FT²

Beds
5

Baths
4.5

Stories
2

Garage
3

Depth
89' 2"

Width
115'

From
$1,595.00

Computer Rendering

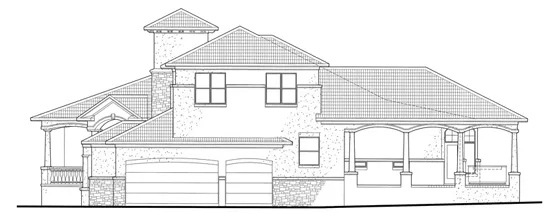

Left Elevation

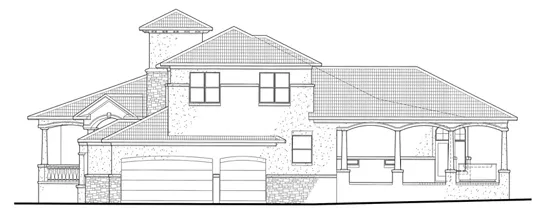

Right Elevation

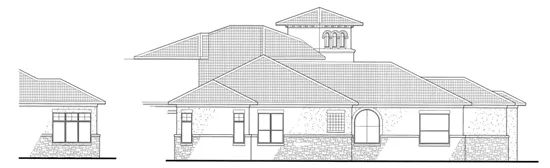

Rear Elevation

View All 4 Images | Photographs may reflect modified home

Sq Ft

4,436 FT²

From

$1,595.00

Beds

Baths

4.5

Stories

Garage

Depth

89' 2"

Width

115'

Modify

Cost Estimator

Sample Plan

Architect's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

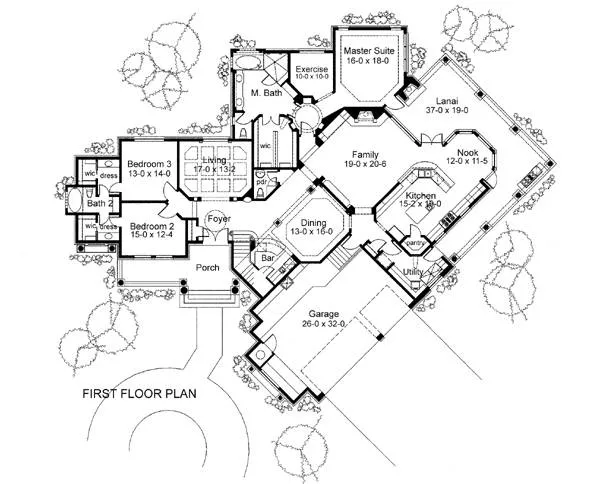

First Floor Plan

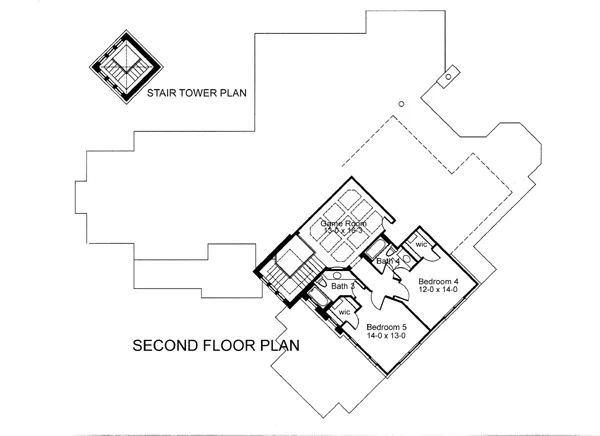

Second Floor Plan

First Floor Plan

Second Floor Plan

About This Plan

This floor plan is full of custom details. The Gourmet Kitchen includes everything necessary to be an accomplished chef. A curved bar easily accessed from the Dining room makes entertaining easy. This home boasts plenty of built-in cabinetry and fabulous ceiling treatments. The Master Suite is a getaway, featuring a devine bath, an enormous walk-in closet, and an exercise room. Enjoy cooking and eating meals on the Lanai by the glow of the outdoor fireplace. This home is first class and the design makes it one of a kind.

FEATURES & DETAILS

Exterior features

Rear Porch

Foundation Options

Crawlspace
Slab
Walkout Basement

Garage Location

Side

Garage Options

Attached

4,436 Ft

Total Heated

3,566 Ft

1st Floor

870 Ft

2nd Floor

Bedrooms

4.5

Bathrooms

Garage

Stories

115' 0"

Width

89' 2"

Depth

32' 9"

Height

12' 0"

Main Floor Ceiling

10' 0"

Upper Floor Ceiling

2x4 or 2x6

Framing

Stick

Roof Framing

6/12

Primary Roof Pitch

Single

Dwelling Number

Unheated Living Space

869 Ft

Garage

926 Ft

Porch

Exterior Styles

Mediterranean

Traditional

Collections

Luxury

Old House Classics

Plan Package Options

Important info before you buy

Select Plan Package

$1,595

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,595

$1,745

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,745

$1,845

5 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

$1,845

$2,395

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$2,395

$2,790

CAD Unlimited Build

2D electronic computer files, completely editable, for design professional use when making extensive modifications; multi-license allows unlimited builds

$2,790

Need To Reverse Plan? (Optional)

$195

Readable Reverse

Reverse house plans with readable text and dimensions

$195

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
