Sq Ft
1,402 FT²

Beds
3

Baths
2

Stories
1

Garage
2

Depth
47'

Width
54'

From
$1,345.00

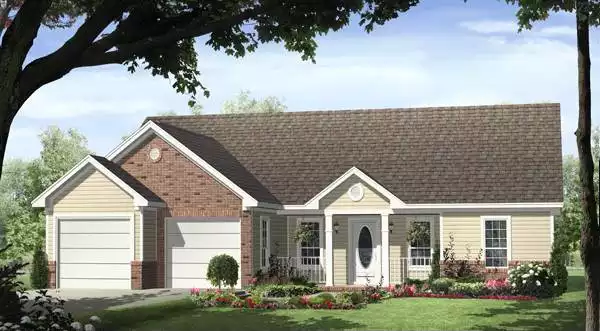

Front Elevation

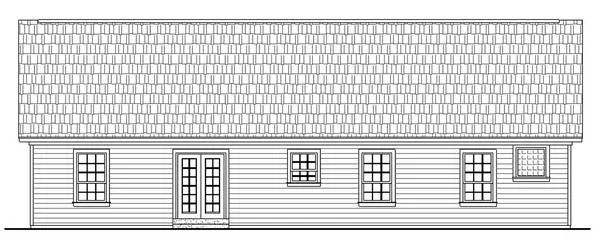

Rear Elevation

View All 2 Images | Photographs may reflect modified home

Sq Ft

1,402 FT²

From

$1,345.00

Beds

Baths

Stories

Garage

Depth

47'

Width

54'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

1st Level Floorplan

About This Plan

This home provides a great use of space, innovative features, and the popular split-bedroom floor plan. This design features an expansive great room which opens directly into your dining room/breakfast area. Enjoy the large kitchen and raised bar....perfect for entertaining or for those daily family meals. From the dining, your family has easy access to the large patio, which can be easily built as covered or left open to enjoy the great outdoors. Looking for storage space? This home features a coat closet, broom closet, utility room, garage storage, and large bedroom closets. Make this your family's next home!

FEATURES & DETAILS

Kitchen features

Peninsula / Eating Bar

Bedroom features

Double Vanity Sink
Primary Bdrm Main Floor
Nursery Room
Split Bedrooms
Walk-in Closet

Exterior features

Covered Front Porch
Front Porch

Foundation Options

Basement
Crawlspace
Slab

Lot Options

Suited for corner lot
Suited for narrow lot
Suited for sloping lot
Suited for view lot

Additional features

Dining Room
Exercise Room
Great Room
Home Office
Laundry 1st Fl

Garage Location

Front

Garage Options

Attached
Front-entry
Oversized

1,402 Ft

Total Heated

Bedrooms

Bathrooms

Garage

Stories

54' 0"

Width

47' 0"

Depth

20' 0"

Height

8' 0"

Main Floor Ceiling

2x4

Framing

Stick

Roof Framing

8/12

Primary Roof Pitch

Single

Dwelling Number

None

Bonus Access

Unheated Living Space

509 Ft

Garage

24 Ft

Storage

98 Ft

Porch

Exterior Styles

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$1,200

Study Set - Printed

One printed set of house plans stamped NOT FOR CONSTRUCTION". This set is intended for review purposes and are mailed to you. To build from the plans, you need to upgrade to a licensed set.

$1,200

$1,345

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,345

$1,455

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,455

$1,540

5 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

$1,540

$1,930

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$1,930

Need To Reverse Plan? (Optional)

$150

Readable Reverse

Reverse house plans with readable text and dimensions

$150

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
