House Plan 1766: The Lake View

COMING SOON...This is one of our latest designs. We welcome your suggestions and will be happy to work with you to modify this plan to suit your specific needs. Please allow approximately 2-3 weeks for your working drawings or electronic files to be available.  Read more >

House Plan Details

Sq. Ft.
2,183
Beds
3
Baths
3.1
Stories
1
Garages
3
Width
71' 2"
Depth
64' 6"
Select Plan Package
PDF File
$1045
Select Foundation Options
$0
Crawl Space
$0
Optional Add-Ons
Subtotal: $0

Note: Note:Please allow 3 weeks for the completion and delivery of this plan.

PLAN IMAGES

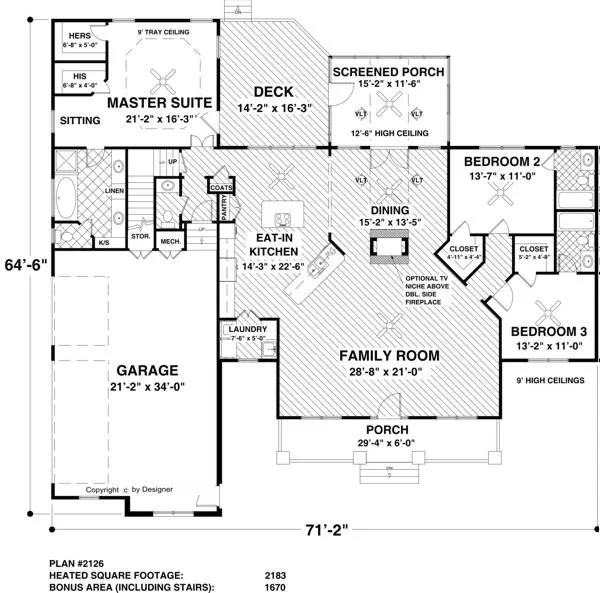

Main Level Floor Plan

Main Level Floor Plan
© copyright by designer
DETAILS
Total SQ. FT.:
2,183
1st Floor SQ. FT.:
2,183

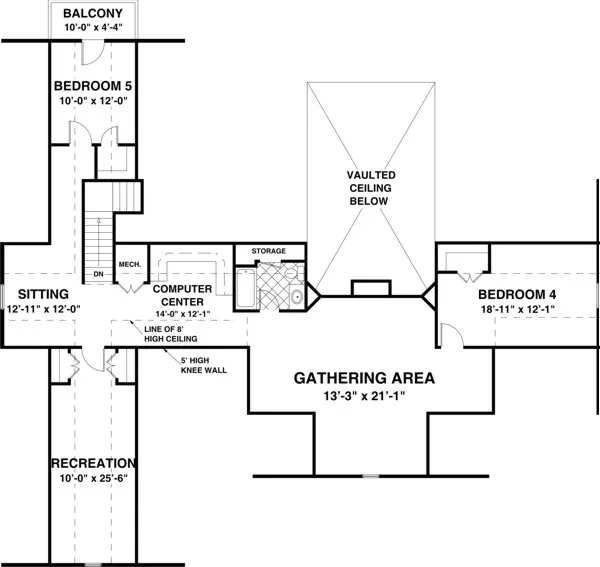

Bonus:
1,670
Bedrooms:
3
Bathrooms:
3.1
Garage:
3
Stories:
1
Main Ceiling Height:
9'
Upper Ceiling Height:
8'
Framing:
2x4
Roof Framing:
Stick
Roof Pitch:
Primary: 8/12
Secondary: 10/12
Width:
71' 2"
Height:
0' 0"
Depth:
64' 6"
Exterior Styles:
Country
Craftsman
Ranch
Southwest
Unheated Living Space:
HOME FEATURES
Bedroom Features:
Kitchen Features:
Additonal Features:
Garage Features:
Attached
Side-entry
Garage Location:
Side
Lot Features:
