House Plan 1230: The Jasper

Narrow Splendor At less than 40-ft. in width, this narrow design will fit a wide variety of sites. The entry opens to a dramatic living room that shares a vaulted ceiling with the adjacent dining room. A beautiful bay in the kitchen is a cheery spot to sip morning coffee.  Read more >
See Architect Preferred Products For This Plan >

House Plan Details

Sq. Ft.
2,251
Beds
4
Baths
3.0
Stories
2
Garages
2
Width
40' 0"
Depth
34' 0"
1st Floor
1,149
2nd Floor
1,102
Customize this Home Plan
Estimate Cost to Build
Free Cost Estimator >
For assistance, email, live chat, or call us at 866-214-2242
Select Plan Package
Five Sets
$648
Select Foundation Options
$0
Basement
$0
Optional Add-Ons
Subtotal: $583
SEE DETAILED PLAN OPTIONS
What You Should Know Before Buying! >

PLAN IMAGES

Add to Favorites   Save

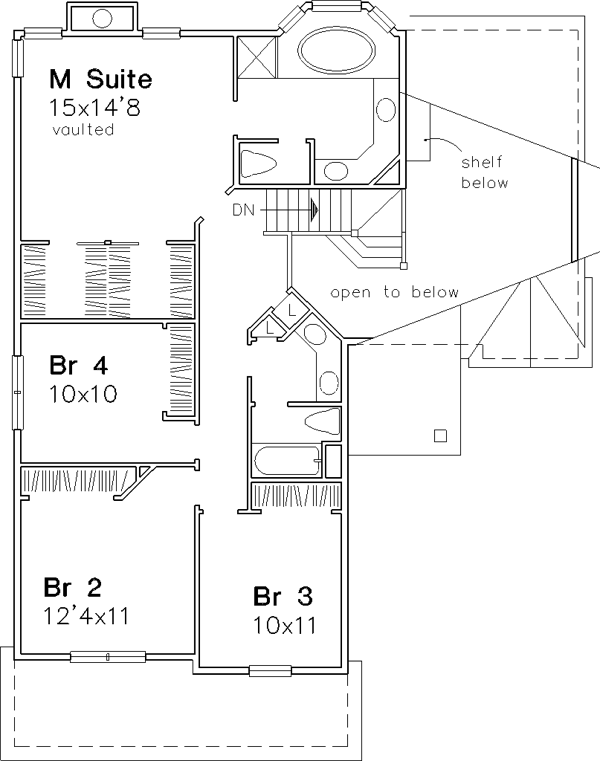

Upper Floor Plan

Upper Floor Plan
© copyright by designer

Plan Details

Basic Information
Bedrooms: 4
Bathrooms: 3.0
Garage: 2
Stories: 2
Exterior Style
Cottage
Craftsman
Traditional
Dimensions
Width: 40' 0"
Height: 27' 0"
Depth: 34' 0"
Heated Living Space
Total Sq. Ft: 2,251
1st Floor: 1,149
2nd Floor: 1,102
Unheated Living Space
Ceiling
Upper Ceiling Ft:
Main Ceiling Ft:
Framing Information
Framing: 2x6
Roof Framing: Combination
Bedroom Features
Kitchen Features
Additional Room Features
Garage Location
Front
Garage Features
Attached
Lot Features
Suited for narrow lot
Suited for sloping lot
Suited for view lot
Roof Pitch

Our Guarantee

  • Only the highest quality plans
  • Int’l Residential Code Compliant
  • Full structural details on all plans
  • Best plan price guarantee
  • Free modification Estimates
  • Builder-ready construction drawings
  • Expert advice from leading designers
  • PDFs NOW!™ plans delivered in minutes
  • 100% satisfaction guarantee
  • Free Home Building Organizer
