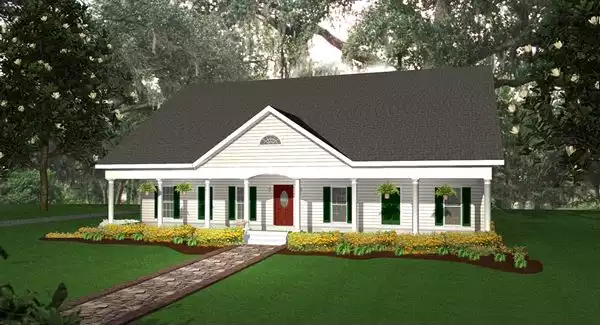

House Plan 5706: The Fayette

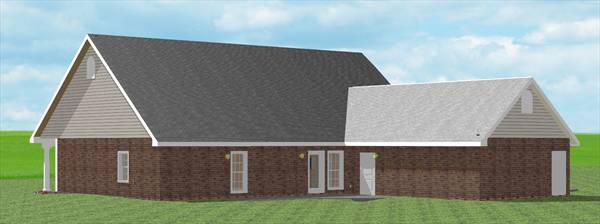

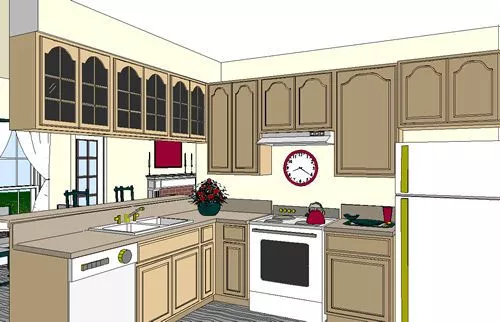

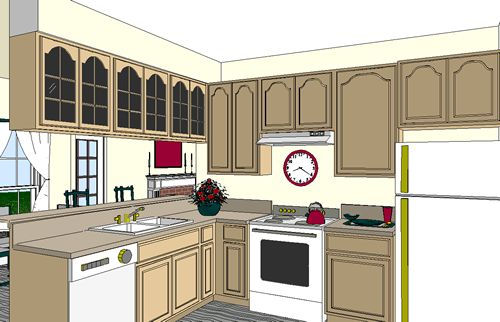

The great room is located at the rear of the home for privacy with an optional fireplace. French door leads out onto the patio for entertianing. The island cooktop kitchen is within perfect reach of the breakfast and dining room.  Read more >
See Architect Preferred Products For This Plan >

House Plan Details

Sq. Ft.
2,188
Beds
4
Baths
3.0
Stories
1
Garages
2
Width
62' 0"
Depth
72' 0"
Modify this Home Plan
Estimate the Cost to Build
For assistance, email, live chat, or call us at 866-214-2242
Select Plan Package
PDF - File Package - One
$975
Select Foundation Options
$0
Crawl Space
$0
Optional Add-Ons
Subtotal: $0
SEE DETAILED PLAN OPTIONS
If a foundation or optional add-on is not listed, please live chat, email or call for availability.
What You Should Know Before Buying! >

PLAN IMAGES

Add to Favorites   Save

Floor Plan

Floor Plan
© copyright by designer
DETAILS
Total SQ. FT.:
2,188
1st Floor SQ. FT.:
2,188
Bedrooms:
4
Bathrooms:
3.0
Garage:
2
Stories:
1
Main Ceiling Height:
9'
Upper Ceiling Height:
'
Framing:
2x4
Roof Framing:
Truss
Roof Pitch:
Primary: 7
Width:
62' 0"
Depth:
72' 0"
Height:
24' 0"
Exterior Styles:
Country
Southern
Traditional
Unheated Living Space:
Garage: 480
Storage: 80
Porch: 372
Patio: 240
HOME FEATURES
Bedroom Features:
Guest Suite
Guest Suite
Separate Tub and Shower
Separate Tub and Shower
Split Bedrooms
Split Bedrooms
Walk-in Closet
Walk-in Closet
Kitchen Features:
Kitchen Island
Kitchen Island
Nook / Breakfast Area
Nook / Breakfast Area
Peninsula / Eating Bar
Peninsula / Eating Bar
Walk-in Pantry
Walk-in Pantry
Additonal Features:
Fireplace
Fireplace
Great Room
Great Room
Mud Room
Mud Room
Open Floor Plan
Open Floor Plan
Garage Features:
Attached
Attached
Garage Location:
Side
Lot Features:
Suited for corner lot
Suited for corner lot

Our Guarantee

  • Only the highest quality plans
  • Int’l Residential Code Compliant
  • Full structural details on all plans
  • Best plan price guarantee
  • Free modification Estimates
  • Builder-ready construction drawings
  • Expert advice from leading designers
  • PDFs NOW!™ plans delivered in minutes
  • 100% satisfaction guarantee
  • Free Home Building Organizer
