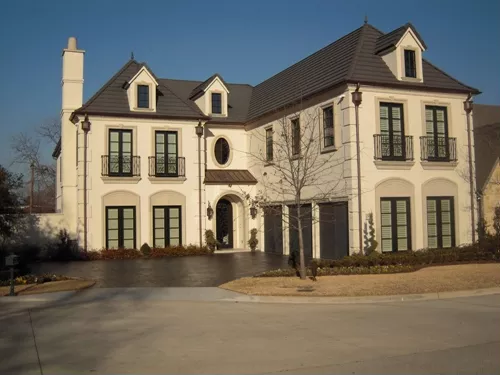

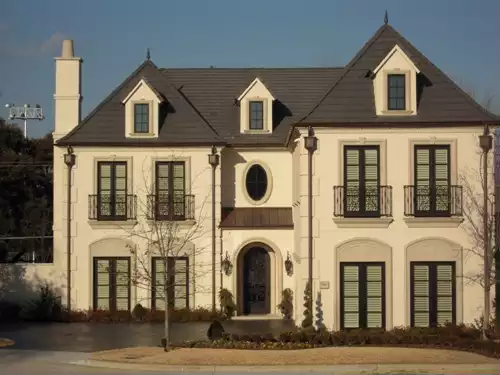

House Plan 5130: THE DREXEL

This luxury mansion house plan offers very large rooms The groin vaulted foyer is flanked by the elegant living room with warming fireplace and the formal dining room with butlery, pantry and wine room for ease in serving. Beyond the living room is the study with built-ins and elevator access.  Read more >

House Plan Details

Sq. Ft.
5,799
Beds
3
Baths
3.0
Stories
2
Garages
3
Width
54' 0"
Depth
96' 0"
1st Floor
2,960
2nd Floor
2,839
Bonus
593
Garage
694
Select Plan Package
Plan PDF Package
$2420
Select Foundation Options
$0
Slab
$0
Optional Add-Ons
Subtotal: $0

PLAN IMAGES

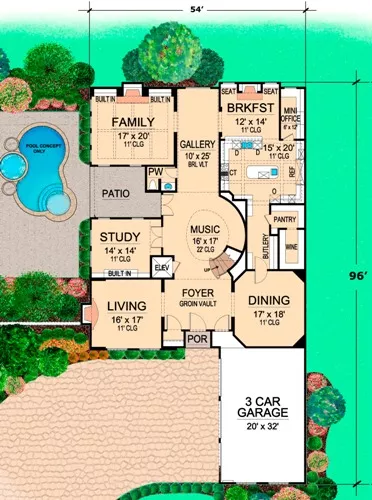

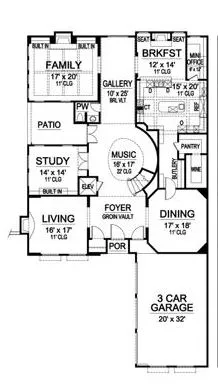

First Floor

First Floor
© copyright by designer

Plan Details

Basic Information
Bedrooms: 3
Bathrooms: 3.0
Garage: 3
Stories: 2
Exterior Style
European
French Country
Traditional
Dimensions
Width: 54' 0"
Height: 37' 0"
Depth: 96' 0"
Heated Living Space
Total Sq. Ft: 5,799
1st Floor: 2,960
2nd Floor: 2,839
Bonus: 593
Unheated Living Space
Garage: 694
Ceiling
Upper Ceiling Ft: 10
Main Ceiling Ft: 11
Framing Information
Framing: 2x4
Roof Framing: Stick
Bedroom Features
Master Bdrm Upstairs
Separate Tub and Shower
Kitchen Features
Kitchen Island
Nook / Breakfast Area
Additional Room Features
2 Story Volume
Arches
Dining Room
Family Room
Fireplace
Formal LR
Foyer
Home Office
Laundry 1st Fl
Library/Media Rm
Open Floor Plan
Vaulted Ceilings
Garage Location
Front
Garage Features
Attached
Side-entry
Lot Features
Roof Pitch
Primary: 14
Secondary: 6

Our Guarantee

  • Only the highest quality plans
  • Int’l Residential Code Compliant
  • Full structural details on all plans
  • Best plan price guarantee
  • Free modification Estimates
  • Builder-ready construction drawings
  • Expert advice from leading designers
  • PDFs NOW!™ plans delivered in minutes
  • 100% satisfaction guarantee
  • Free Home Building Organizer
