Sq Ft
5,757 FT²
Bed
5
Bath
5
Stories
2
Garage
2
Depth
95'
Width
48'
On Sale
$2,057.00
$2,420.00
© copyright by designer

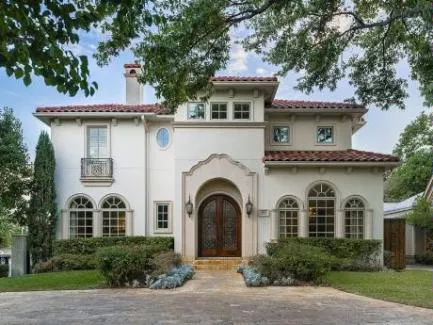

View All 40 Images | Photographs may reflect modified home
Sq Ft
5,757 FT²
From
$2,057.00
Bed
5
Bath
5
Stories
2
Garage
2
Depth
95'
Width
48'

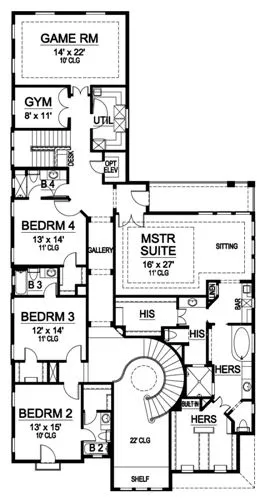

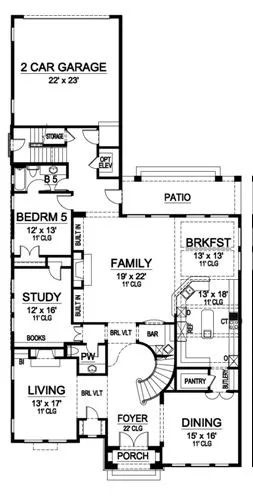

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

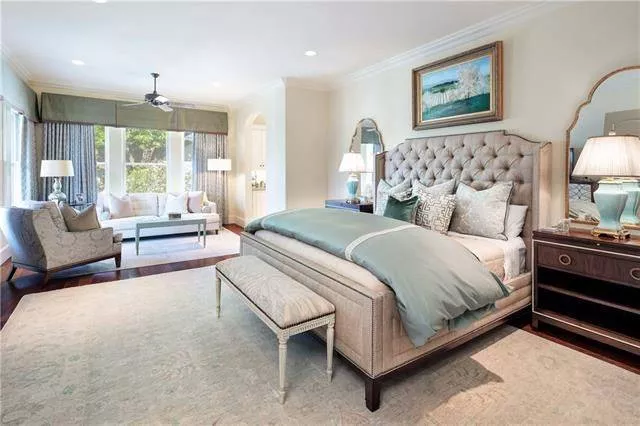

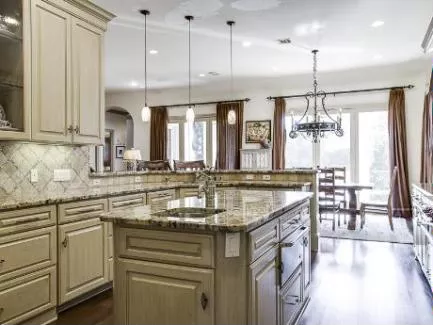

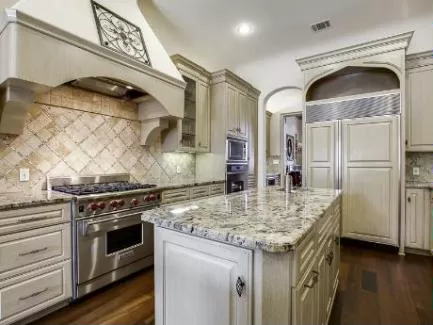

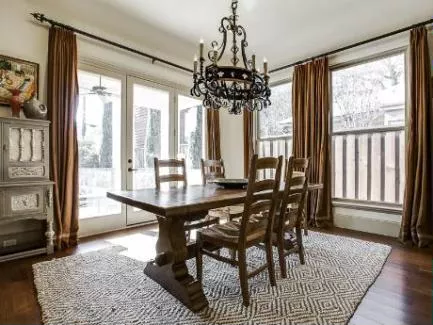

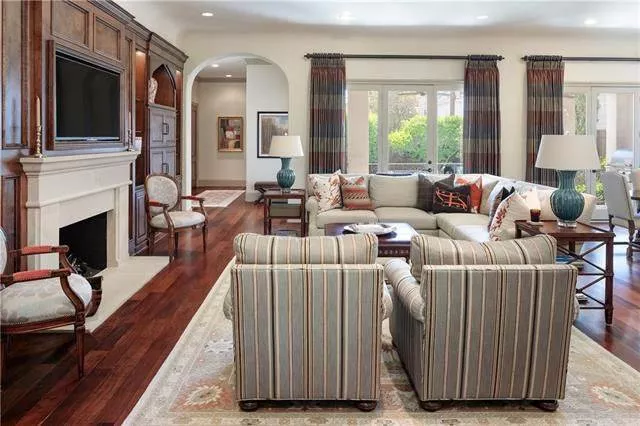

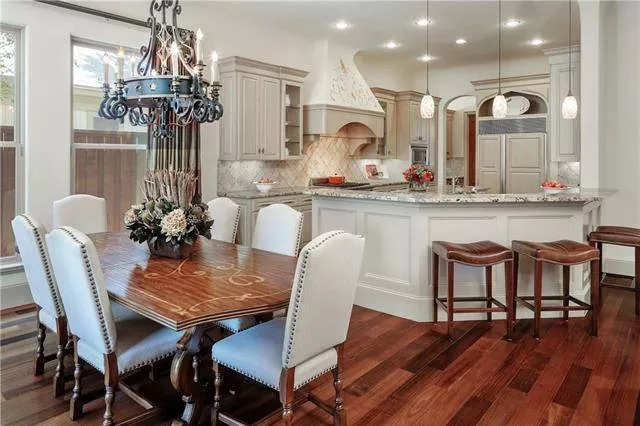

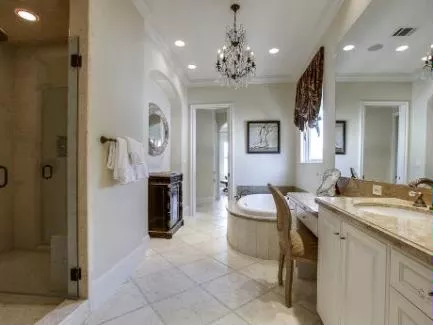

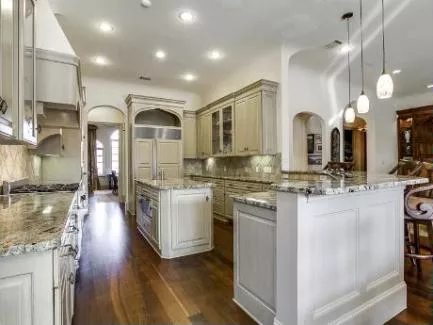

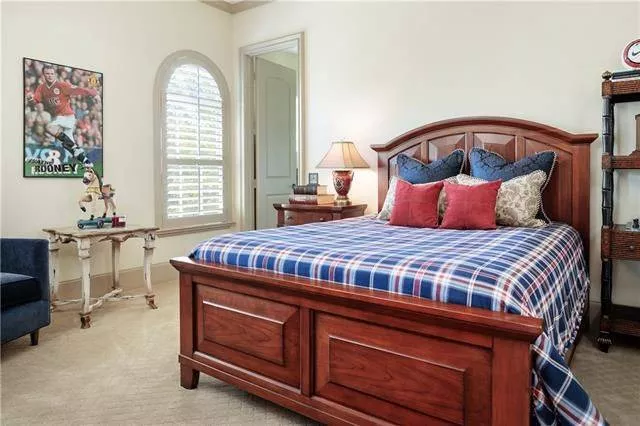

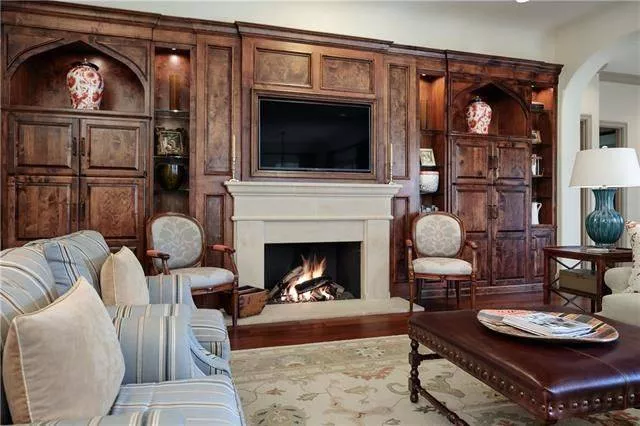

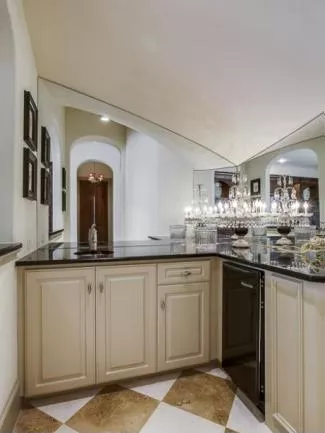

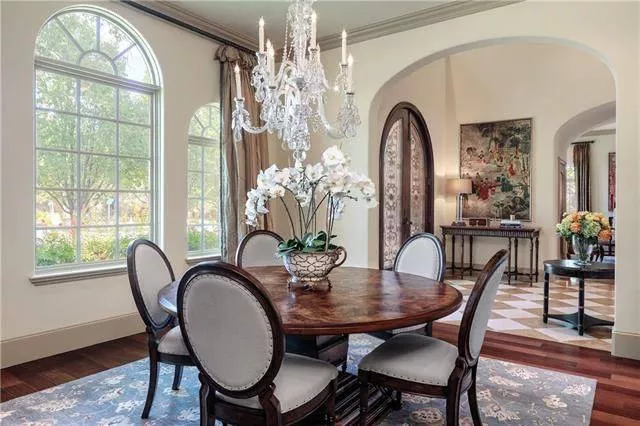

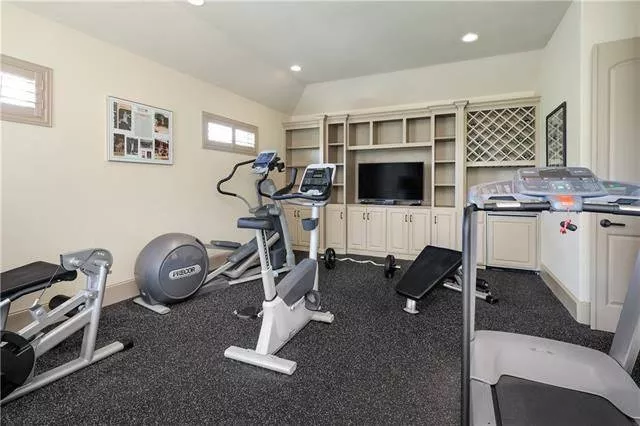

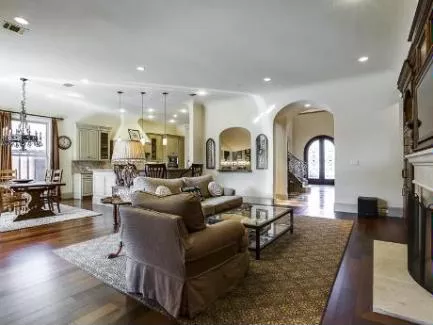

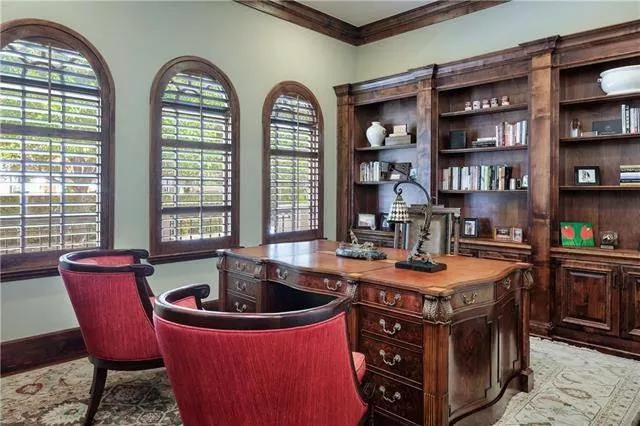

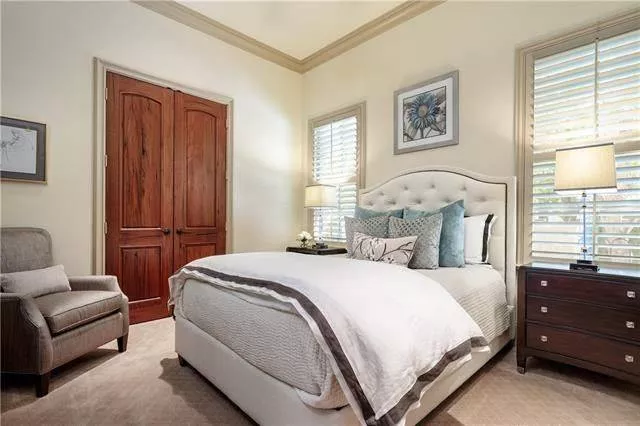

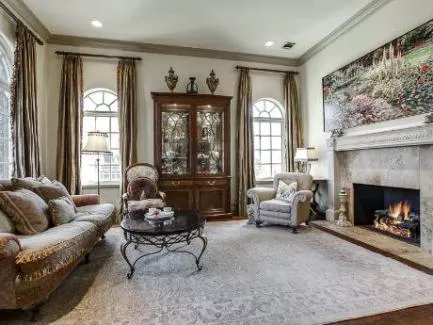

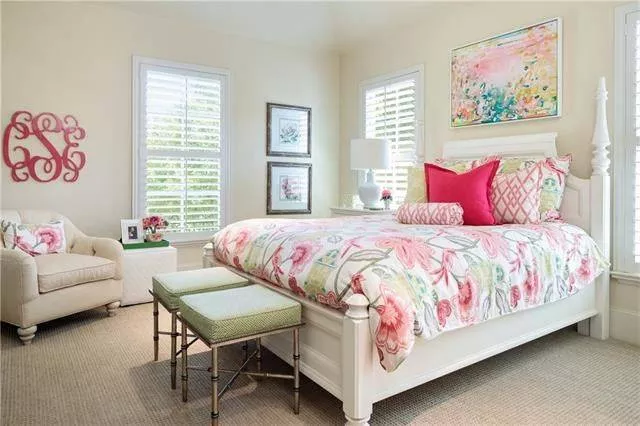

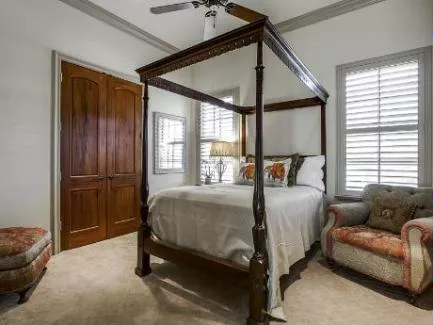

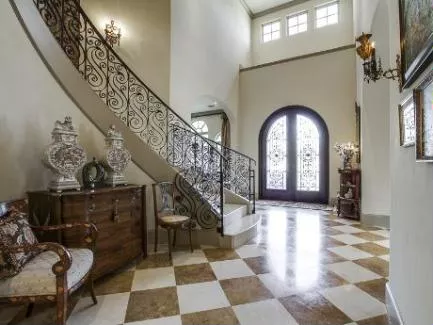

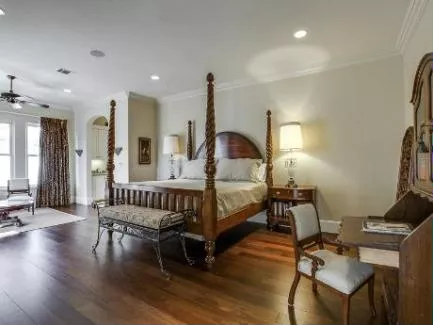

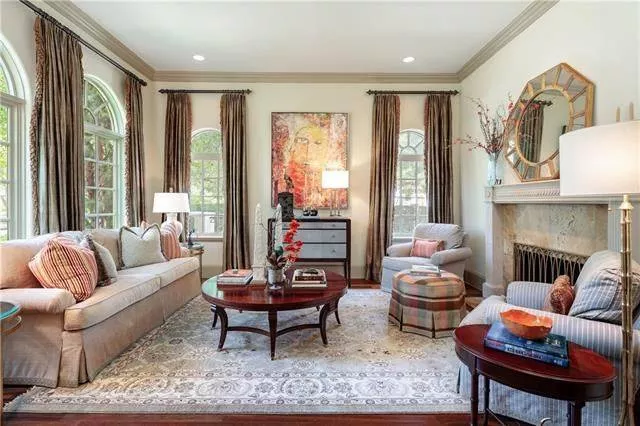

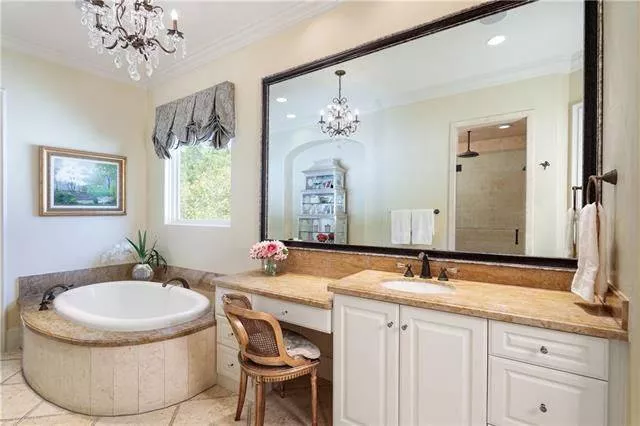

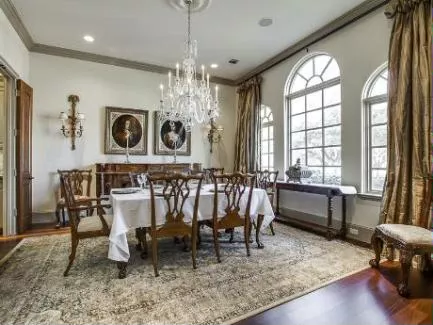

This luxury house plan is perfect for a narrow lot. The two story foyer offers views of the spiral staircase ahead and the barrel vaulted ceilings. A great way to welcome guests. The open foyer is flanked by a gracious living room with warming fireplace and the formal dining room with pantry and butlery. The family gathering area consists of the kitchen, breakfast room and family room. The center warming fireplace helps keep this area cozy. Access to the patio can be achieved behind the family room. The gourmet kitchen provides a free-standing island for additional counter space. The breakfast bar can be shared with the family room and breakfast area. A quiet study with built-in bookcases and family bedroom with walk-in closet and full bath sit on the left side of the house plan. A two-car garage with rear entry sits at the back of the plan. Upstairs, three family bedrooms with walk-in closets and full baths share space with a gym, utility room, game room and gallery. The luxurious master suite boasts a sitting area, bar, lavish bath with his and hers private baths, his and hers vanities, separate shower, tub, his wardrobe, and hers wardrobe with built-ins. An optional elevator is available for this luxury house plan.


FEATURES & DETAILS

Kitchen features
Butler's Pantry
Country Kitchen
Kitchen Island
Nook / Breakfast Area
Bedroom features
Double Vanity Sink
His and Hers Primary Closets
Primary Bdrm Upstairs
Separate Tub and Shower
Sitting Area
Exterior features
Covered Front Porch
Covered Rear Porch
Deck
Front Porch
Rear Porch
Foundation Options
Slab
Additional features
2 Story Volume
Arches
Dining Room
Family Room
Fireplace
Formal LR
Foyer
Home Office
Laundry 1st Fl
Library/Media Rm
Open Floor Plan
Vaulted Ceilings
Garage Location
Rear
Garage Options
Attached
Rear-entry
6,673 Ft
2
Total Structure
5,757 Ft
2
Total Heated
2,778 Ft
2
1st Floor
2,979 Ft
2
2nd Floor
5
Bedrooms
5
Bathrooms
2
Garage
2
Stories
48' 0"
Width
95' 0"
Depth
35' 0"
Height
11' 0"
Main Floor Ceiling
10' 0"
Upper Floor Ceiling
2x6
Framing
Stick
Roof Framing
6
Primary Roof Pitch
6
Secondary Roof Pitch
Single
Dwelling Number

Unheated Living Space
550 Ft
2
Garage
42 Ft
2
Porch
125 Ft
2
Deck
199 Ft
2
Patio


Plan Package Options

 Select Plan Package
$2,575
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$2,575
$2,755
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$2,755
$3,860
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$3,860
 Need To Reverse Plan? (Optional)
$200
Readable Reverse

Reverse house plans with readable text and dimensions

$200
  Select Foundation Option
  Add-Ons (Optional)

Ground shipping within the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your house plan

Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
