Sq Ft
2,400 FT²

Beds
0

Baths
0

Stories
1

Garage
0

Depth
50'

Width
48'

From
$410.00

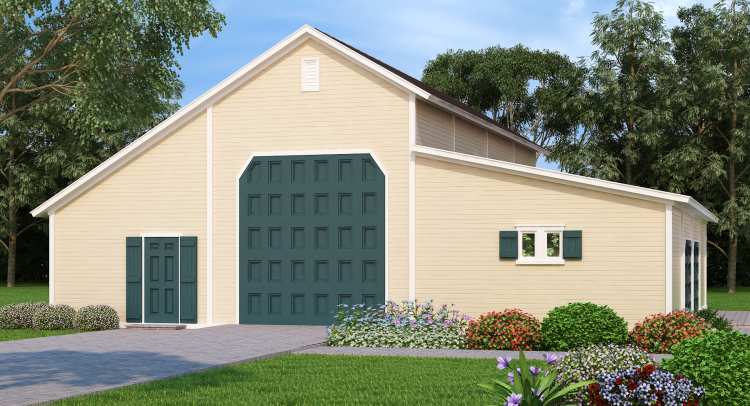

Front Rendering

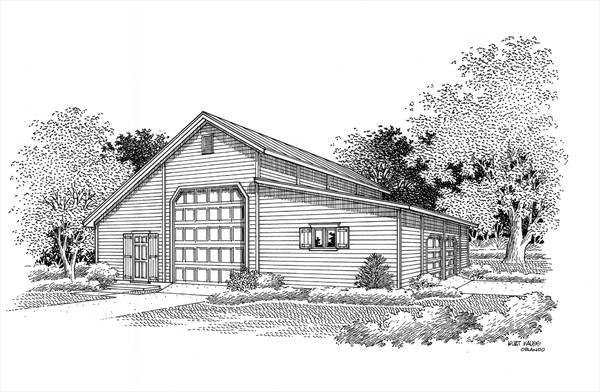

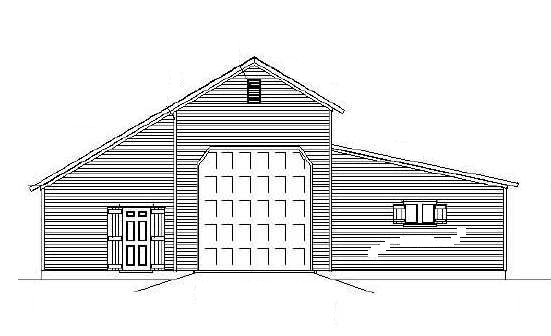

Front Exterior

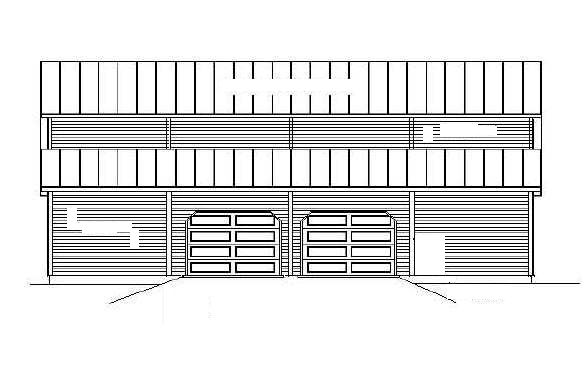

Right Side Elevation

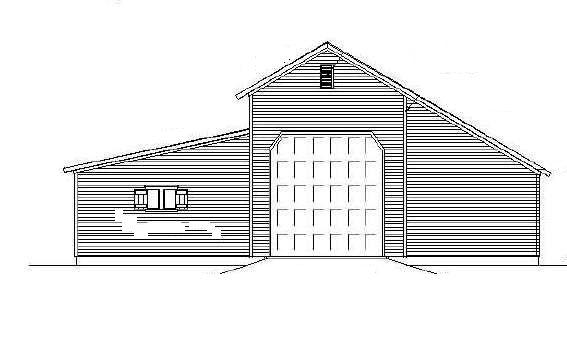

Rear Elevation

Left side elevation

Front Rendering

View All 6 Images | Photographs may reflect modified home

Sq Ft

2,400 FT²

From

$410.00

Beds

Baths

Stories

Garage

Depth

50'

Width

48'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

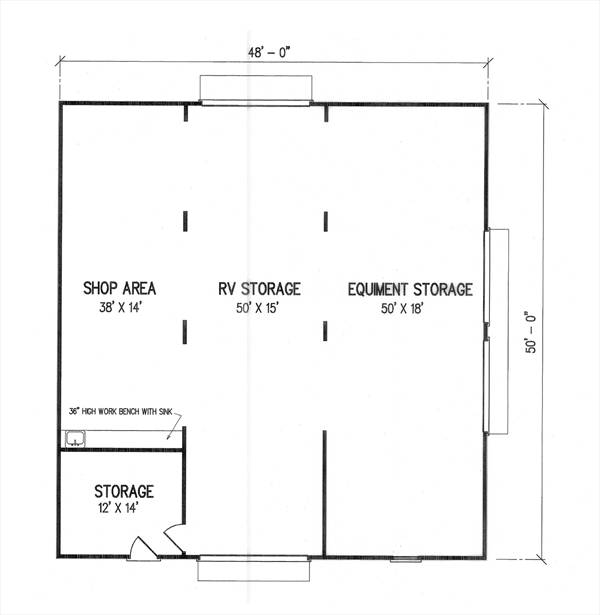

Floor Plan

About This Plan

Designed with the exterior appearance of a country barn, this toy barn will hold the biggest RVs and all of your other toys too. The RV bay has 16' high ceilings and is accessed through a 12' wide overhead garage door. The door height is 12' but it can easily be modified to 14' high to handle the largest coaches. The RV bay is equipped with a sewer tap, 50 amp electrical outlets and a water hose bib. The equipment storage has two side entry 10' x 8' garage doors so that you can easily store and access jet skis, additional cars or any other adult toys. There is even a shop area to maintain your collection of toys and it has a full length work bench with a built-in sink. The storage room is designed to store your RV supplies and it is accessible from the outside and from the RV bay.

FEATURES & DETAILS

Foundation Options

Slab

Garage Options

Detached

2,400 Ft

Total Heated

Garage

Stories

48' 0"

Width

50' 0"

Depth

26' 0"

Height

9 & 16' 0"

Main Floor Ceiling

2x4

Framing

Stick

Roof Framing

7/12

Primary Roof Pitch

4:12

Secondary Roof Pitch

Garage

Dwelling Number

Unheated Living Space

Exterior Styles

Country

Traditional

Collections

Affordable

Budget

Plan Package Options

Important info before you buy

Select Plan Package

$300

PDF Bid Set
PDFs NOW!™

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

$300

$410

PDF Single Build
PDFs NOW!™

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$410

$475

4 Printed Sets

Four printed sets of construction drawings shipped and received in 3-5 business days

$475

$520

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$520

$615

8 Printed Sets + PDF
PDFs NOW!™

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS eight printed sets shipped and delivered 3-5 business days.

$615

8 Printed Sets

Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

$615

$900

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$900

Need To Reverse Plan? (Optional)

$125

Readable Reverse

Reverse house plans with readable text and dimensions

$125

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
