House Plan 4098: Suncastle

House Plan Details

Sq. Ft.
2,800
Beds
3
Baths
2.1
Stories
2
Garages
2
Width
50' 0"
Depth
74' 0"
1st Floor
2,051
2nd Floor
749
Garage
398
Porch
51
Select Plan Package
FIVE SETS OF BONDPRINTS
$890
Select Foundation Options
$0
Slab
$0
Optional Add-Ons
Subtotal: $600

PLAN IMAGES

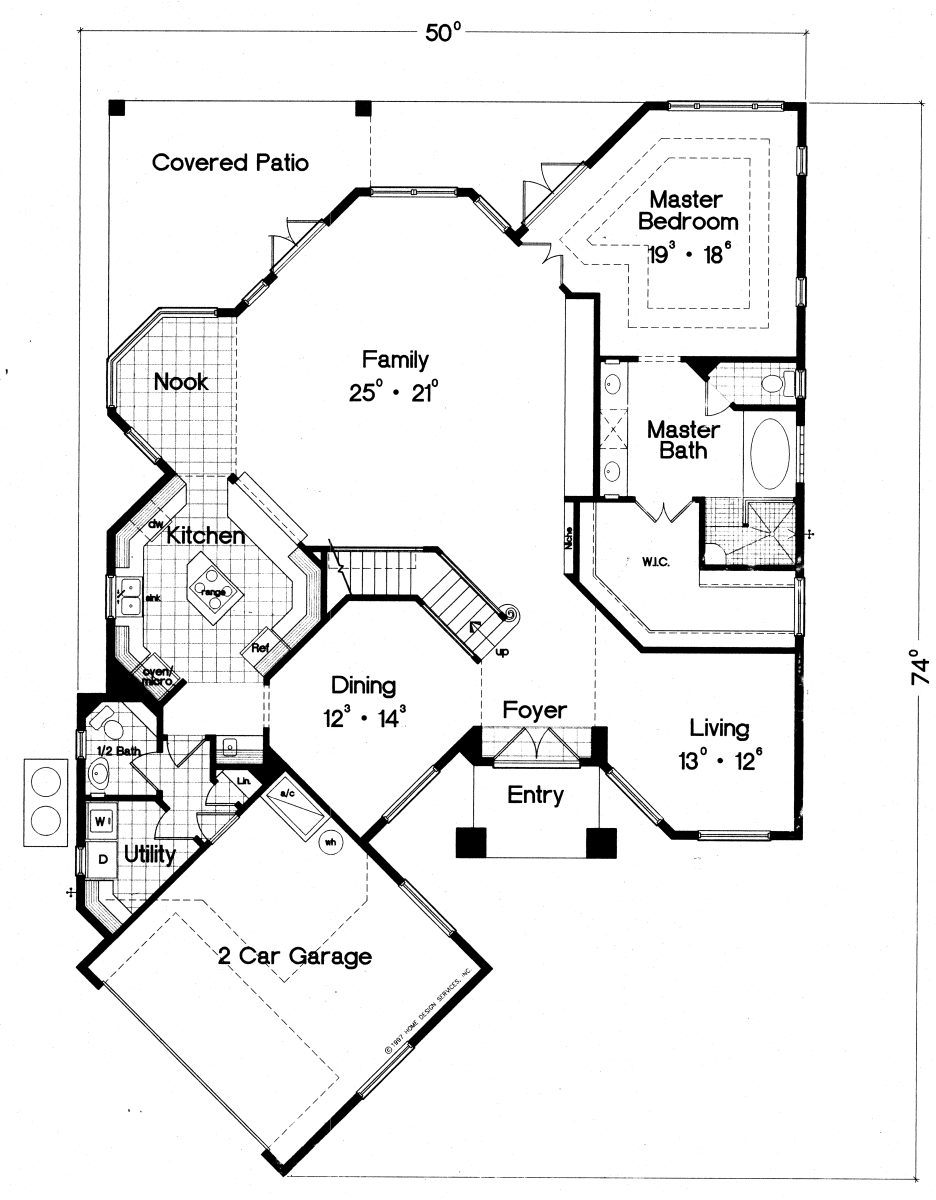

First Floor Plan

First Floor Plan
© copyright by designer

Plan Details

Basic Information
Bedrooms: 3
Bathrooms: 2.1
Garage: 2
Stories: 2
Exterior Style
Beach
Contemporary
European
Mediterranean
Southwest
Dimensions
Width: 50' 0"
Height: 29' 6"
Depth: 74' 0"
Heated Living Space
Total Sq. Ft: 2,800
1st Floor: 2,051
2nd Floor: 749
Unheated Living Space
Garage: 398
Porch: 51
Deck: 220
Patio: 326
Ceiling
Upper Ceiling Ft:
Main Ceiling Ft:
Framing Information
Framing: 2x4
Roof Framing: Truss
Bedroom Features
Double Vanity Sink
Double Vanity Sink
Master Bdrm Main Floor
Master Bdrm Main Floor
Separate Tub and Shower
Separate Tub and Shower
Split Bedrooms
Split Bedrooms
Walk-in Closet
Walk-in Closet
Kitchen Features
Kitchen Island
Kitchen Island
Nook / Breakfast Area
Nook / Breakfast Area
Peninsula / Eating Bar
Peninsula / Eating Bar
Additional Room Features
Arches
Arches
Dining Room
Dining Room
Family Room
Family Room
Formal LR
Formal LR
Foyer
Foyer
Laundry 1st Fl
Laundry 1st Fl
Library/Media Rm
Library/Media Rm
Loft / Balcony
Loft / Balcony
Open Floor Plan
Open Floor Plan
Storage Space
Storage Space
Vaulted Ceilings
Vaulted Ceilings
Garage Location
Side
Garage Features
Attached
Attached
Lot Features
Suited for narrow lot
Suited for narrow lot
Suited for view lot
Suited for view lot
Roof Pitch
Primary: 6/12
