Sq Ft
1,402 FT²

Beds
3

Baths
2

Stories
1

Garage
2

Depth
40' 10"

Width
59' 10"

From
$1,060.00

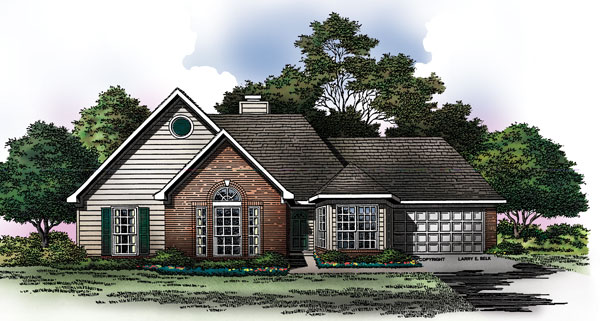

Front Rendering

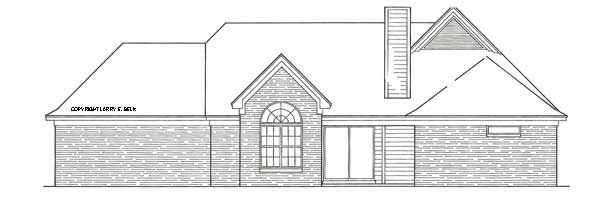

Rear Rendering

View All 2 Images | Photographs may reflect modified home

Sq Ft

1,402 FT²

From

$1,060.00

Beds

Baths

Stories

Garage

Depth

40' 10"

Width

59' 10"

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

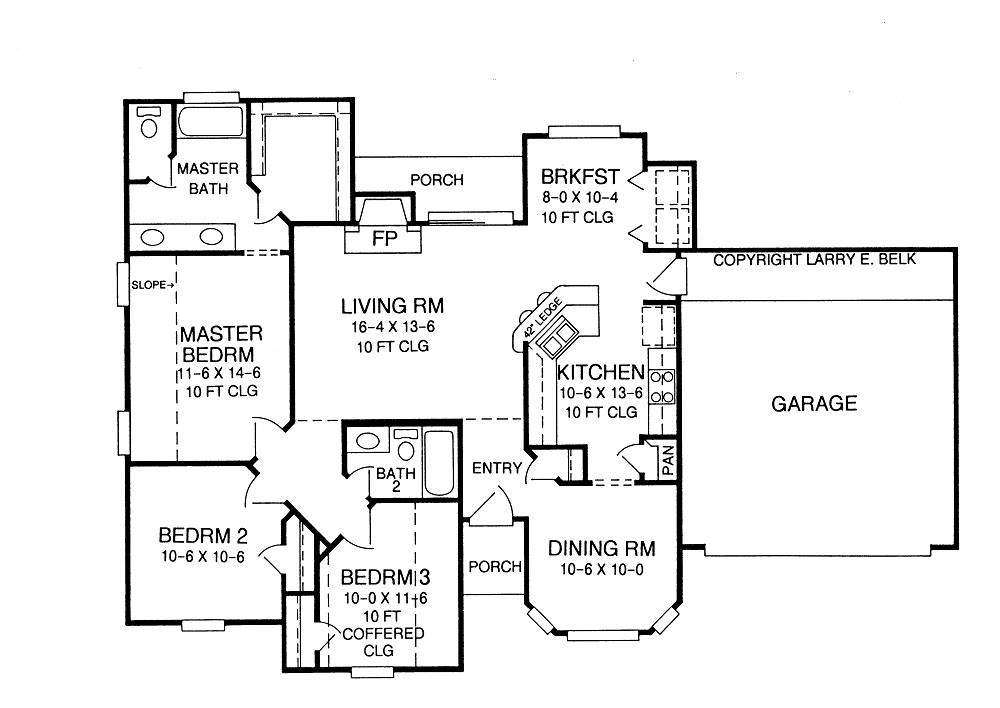

First Floor Plan

About This Plan

A large Living Room with a 10 foot ceiling is the focal point for this lovely small home. A Dining Room with a distinctive bay window provides a perfect place for formal dining. The Breakfast Room located off the Kitchen is ideal for informal gatherings. The Master Bedroom is notable for a ceiling that vaults to 10 foot. The Master Bath includes his and her vanities and a combination whirlpool tub and shower. The huge walk in closet provides plenty of closet space. Bedroom 2 and 3 and Bath 2 complete this very livable plan.

FEATURES & DETAILS

Kitchen features

Nook / Breakfast Area
Peninsula / Eating Bar

Bedroom features

Double Vanity Sink
Primary Bdrm Main Floor
Walk-in Closet

Exterior features

Covered Front Porch
Front Porch
Rear Porch

Foundation Options

Basement
Crawlspace
Slab

Additional features

Arches
Dining Room
Family Room
Fireplace
Foyer
Laundry 1st Fl
Open Floor Plan
Storage Space

Garage Location

Side

Garage Options

Attached
Front-entry

1,402 Ft

Total Heated

Bedrooms

Bathrooms

Garage

Stories

59' 10"

Width

40' 10"

Depth

20' 6"

Height

10' 0"

Main Floor Ceiling

2x4

Framing

Stick

Roof Framing

9/12

Primary Roof Pitch

12/12

Secondary Roof Pitch

Single

Dwelling Number

Unheated Living Space

437 Ft

Garage

58 Ft

Porch

Exterior Styles

Traditional

Collections

Old House Classics

Plan Package Options

Important info before you buy

Select Plan Package

$750

PDF Bid Set
PDFs NOW!™

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

$750

$1,060

PDF Single Build
PDFs NOW!™

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,060

$1,555

Multi-Use PDF
PDFs NOW!™

Two Builds Only

$1,555

$2,250

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$2,250

Need To Reverse Plan? (Optional)

$300

Readable Reverse

Reverse house plans with readable text and dimensions

$300

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.

BEST PRICE GUARANTEE

find the same house plan (modifications included!) and package for less on another site, show us the URL and we'll give you the difference plus an additional 5% back.

100% SATISFACTION GUARANTEE

We offer a one-time, 14-day exchange policy for unused, non-electronic plan packages in the event you aren't satisfied with your first selection.
