Search Plans

Sq Ft
1,740 FT²
Bed
3
Bath
2.5
Stories
1.5
Garage
2
Depth
47'
Width
40'
From
$1,400.00
© copyright by designer
View All 2 Images | Photographs may reflect modified home
Sq Ft
1,740 FT²
From
$1,400.00
Bed
3
Bath
2.5
Stories
1.5
Garage
2
Depth
47'
Width
40'

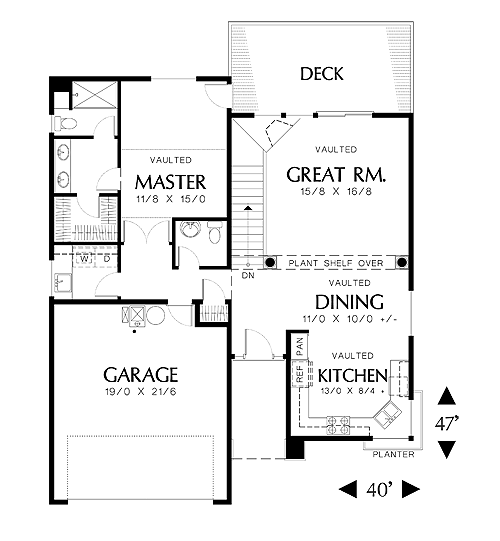

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

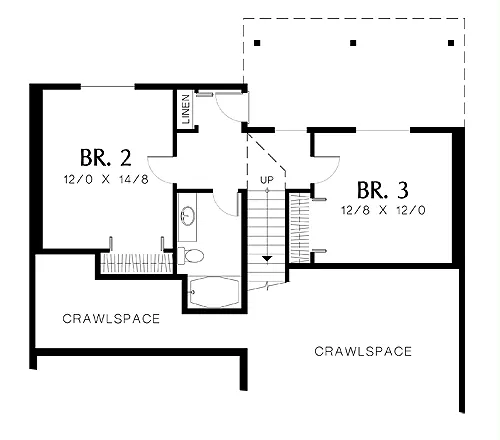

The master suite and public living areas are all on the main level of this charming cottage plan, designed to take full advantage of a narrow, sloping lot. Two additional bedrooms and a full bath occupy the walkout lower level. A vaulted ceiling soars above the kitchen, dining room, and the great-room, which are open to each other. Pillars and an overhead plant shelf delineate the dining area from the great room, which is furnished with a corner fireplace and patio doors to a rear deck. The laundry room is conveniently located just outside the vaulted master bedroom. The suite has access to the deck. The compartmentalized bath includes a double-sink vanity, a large shower, and a walk-in closet.


FEATURES & DETAILS

Kitchen features
Country Kitchen
Bedroom features
Double Vanity Sink
Primary Bdrm Main Floor
Walk-in Closet
Exterior features
Deck
No Porch
Foundation Options
Daylight Basement
Slab
Walkout Basement
Lot Options
Suited for narrow lot
Suited for sloping lot
Additional features
Arches
Great Room
Laundry 1st Fl
Open Floor Plan
Vaulted Ceilings
Garage Location
Front
Garage Options
Attached
Front-entry
1,740 Ft
2
Total Heated
1,120 Ft
2
1st Floor
620 Ft
2
Lower Floor
3
Bedrooms
2.5
Bathrooms
2
Garage
1.5
Stories
40' 0"
Width
47' 0"
Depth
24' 0"
Height
Varies' 0"
Main Floor Ceiling
2x6
Framing
Truss
Roof Framing
8/12
Primary Roof Pitch
10/12
Secondary Roof Pitch
Single
Dwelling Number
None
Bonus Access

Unheated Living Space
411 Ft
2
Garage
200 Ft
2
Deck


Plan Package Options

 Select Plan Package
$1,400
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,400
$1,600
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,600
$1,650
5 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

$1,650
$2,800
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$2,800
 Need To Reverse Plan? (Optional)
$225
Readable Reverse

Reverse house plans with readable text and dimensions

$225
  Select Foundation Option
  Add-Ons (Optional)

Free Ground shipping within the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your plan

Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
