Sq Ft
3,290 FT²
Bed
3
Bath
3.5
Stories
2
Garage
3
Depth
75'
Width
69'
On Sale
$1,402.50
$1,650.00
© copyright by designer
View All 25 Images | Photographs may reflect modified home
Sq Ft
3,290 FT²
From
$1,402.50
Bed
3
Bath
3.5
Stories
2
Garage
3
Depth
75'
Width
69'

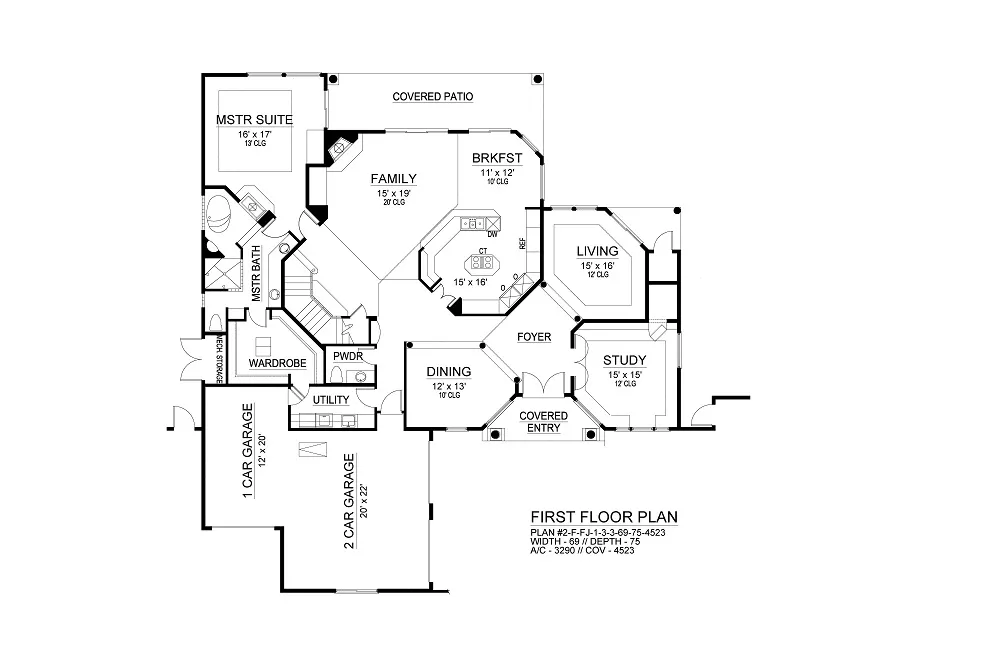

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

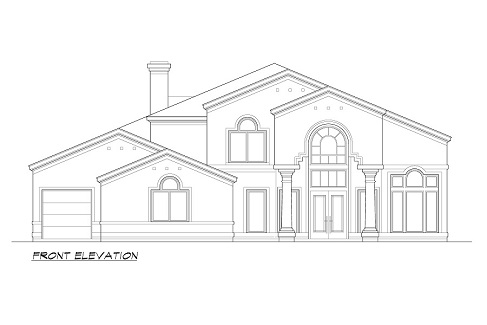

There's no mistaking
this Great
Mediterranean two
story home plan has
everything to offer,
especially for a
narrow lot. It

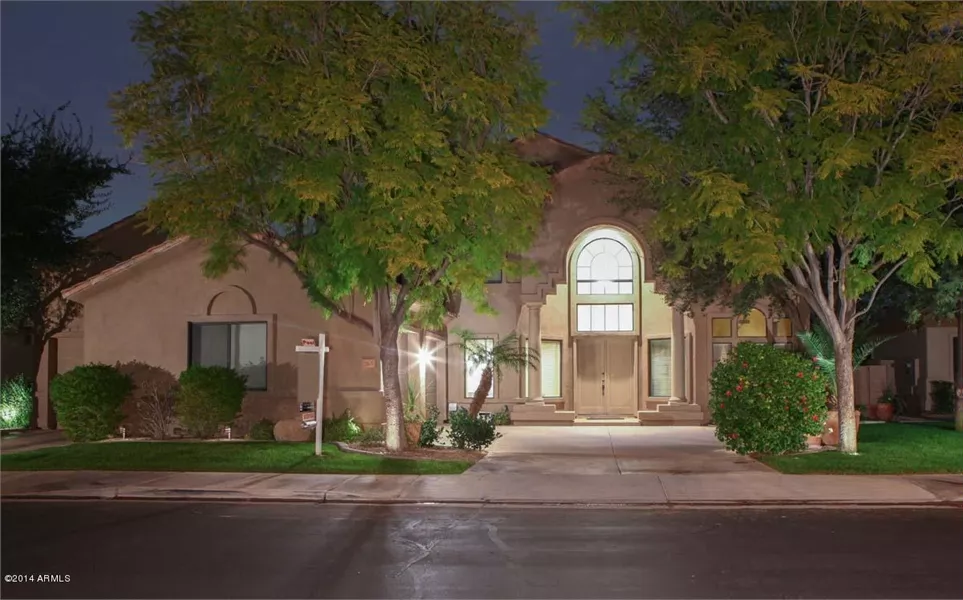

includes a two-story
entryway with arched
windows, four large
decorative pillars
at the front of the
home, and an elegant
stucco exterior. As
you pass through the
two-story covered
entry through the
double doors, you

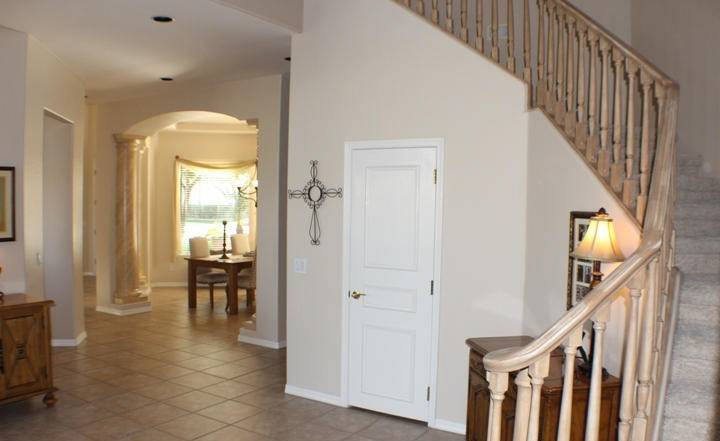

enter a grand foyer
flanked by the
formal dining room
and the quiet study.

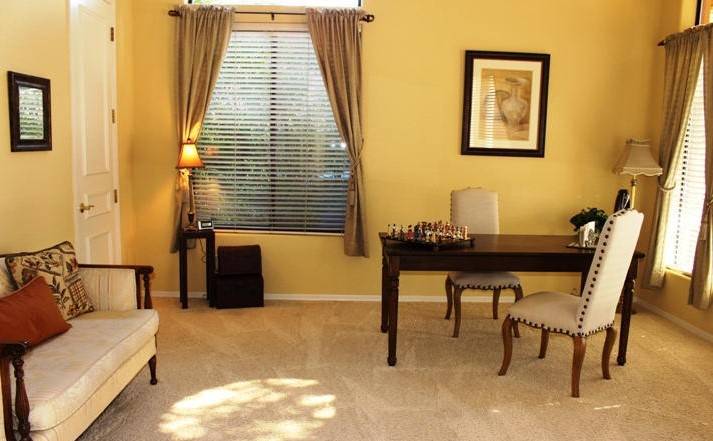

The study has a trey
ceiling and storage.

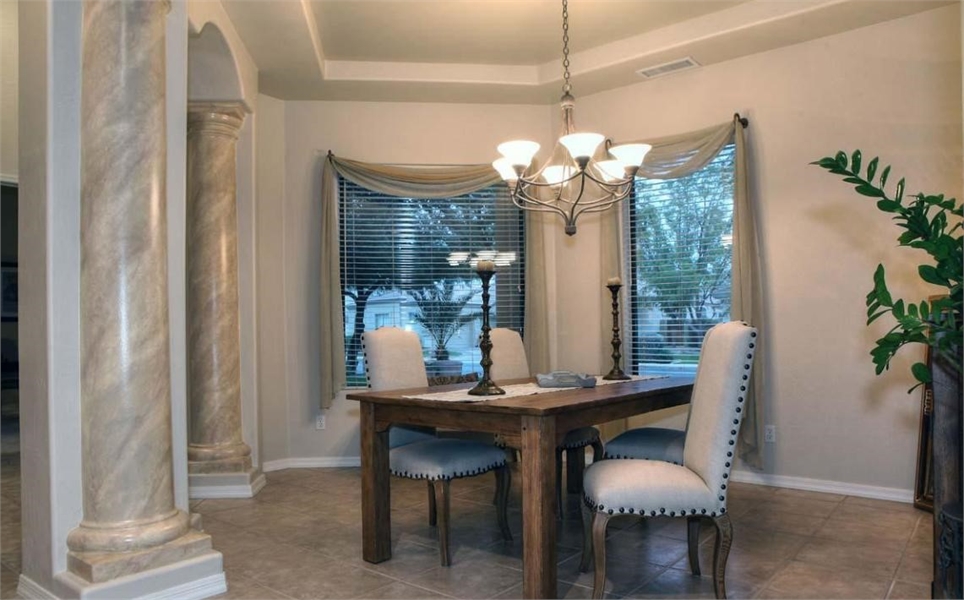

The formal dining
room with its large
decorative pillars
is adjacent to the
kitchen making
serving family and

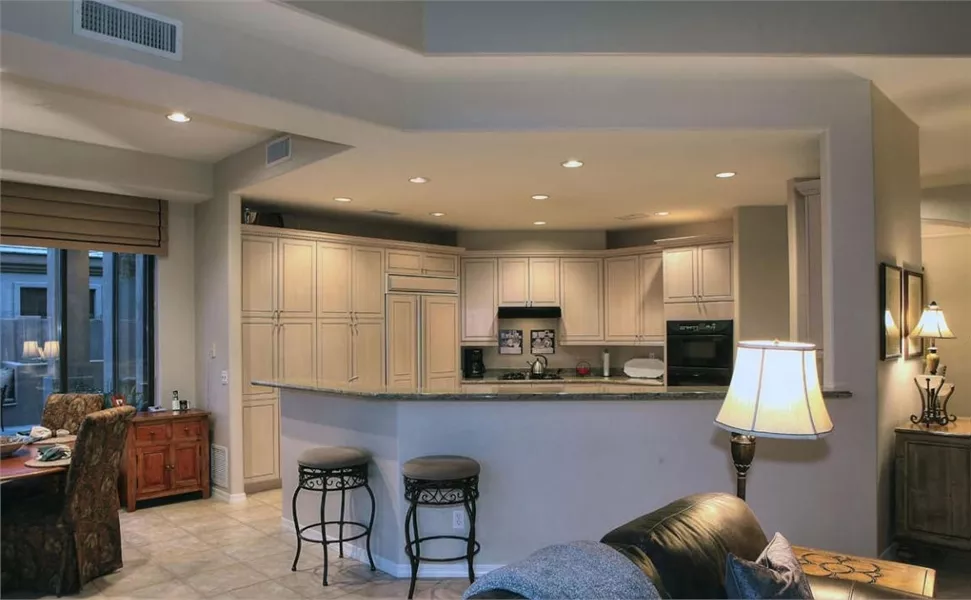

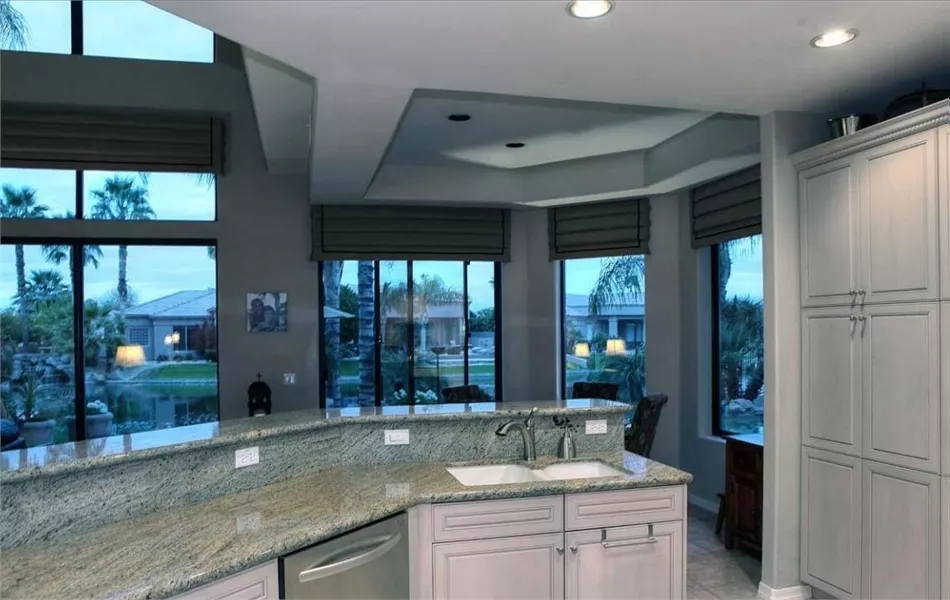

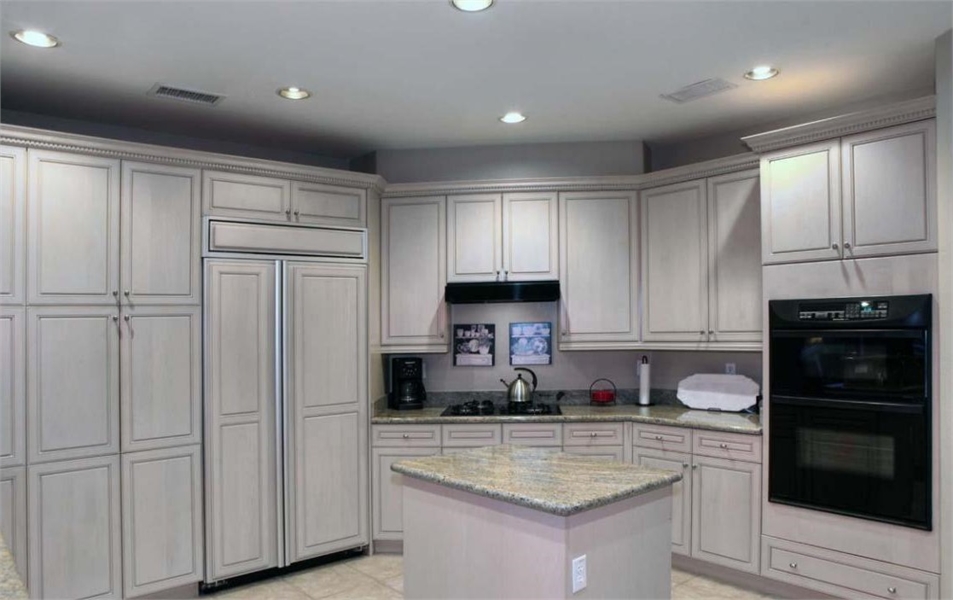

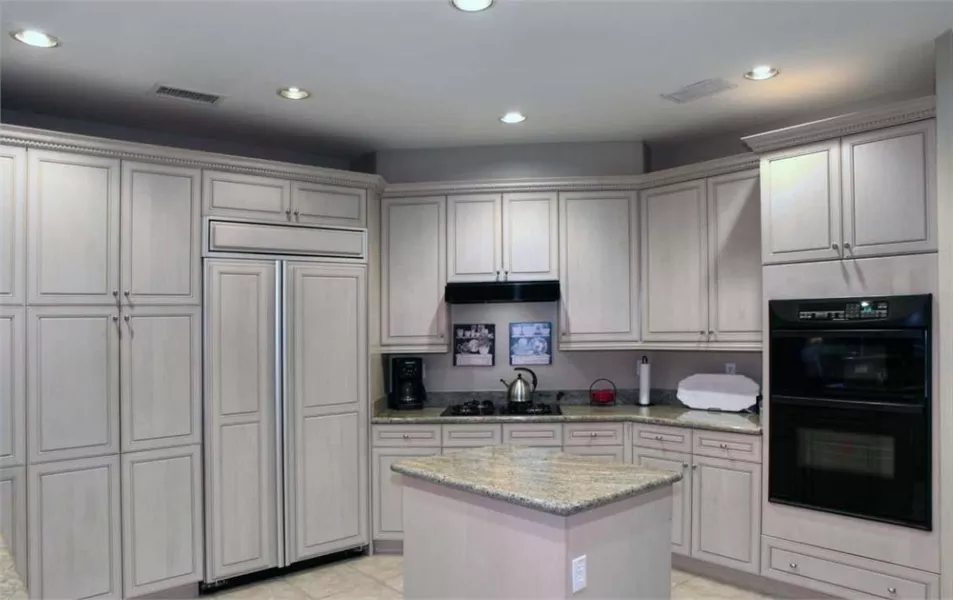

guests a breeze. The
gourmet kitchen has
plenty of built-ins
and counter space
desirable by any
chefs standards. A
freestanding island
has a range top and
the eating bar that
separates the
kitchen from the
breakfast room and
the family room.

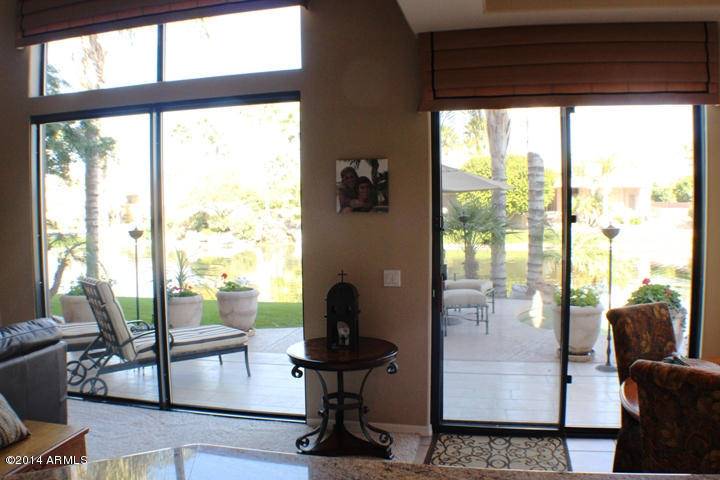

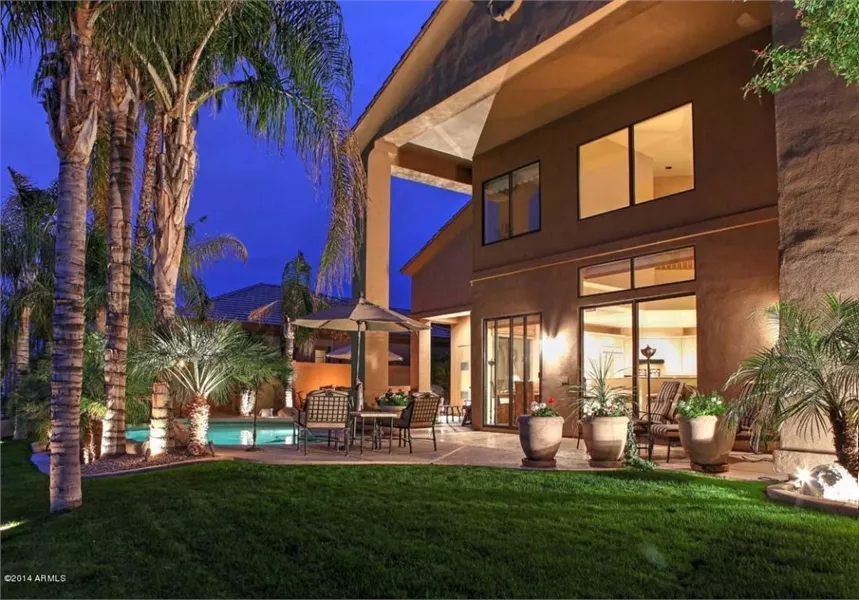

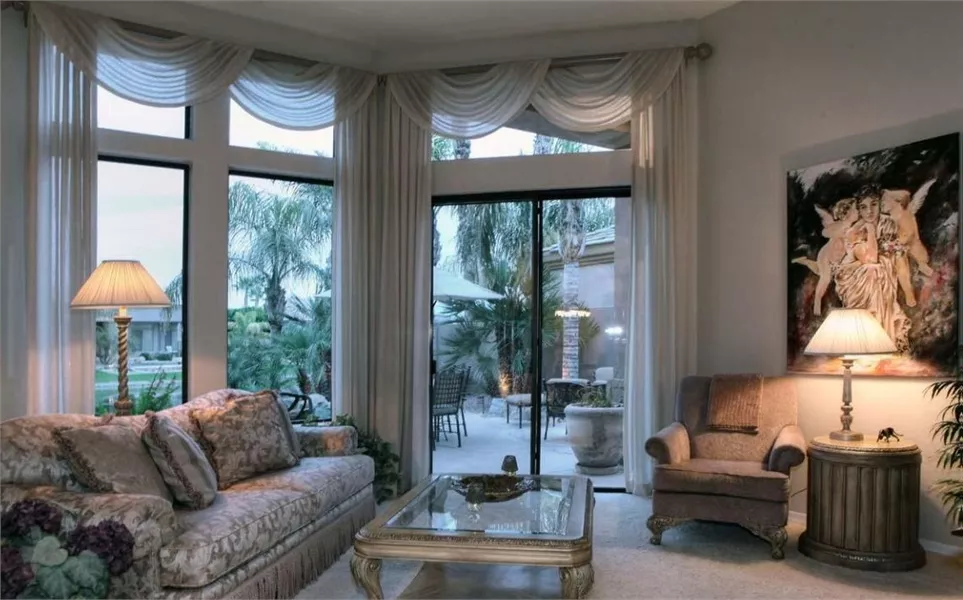

Access to the
covered porch can be
achieved through the
breakfast room or

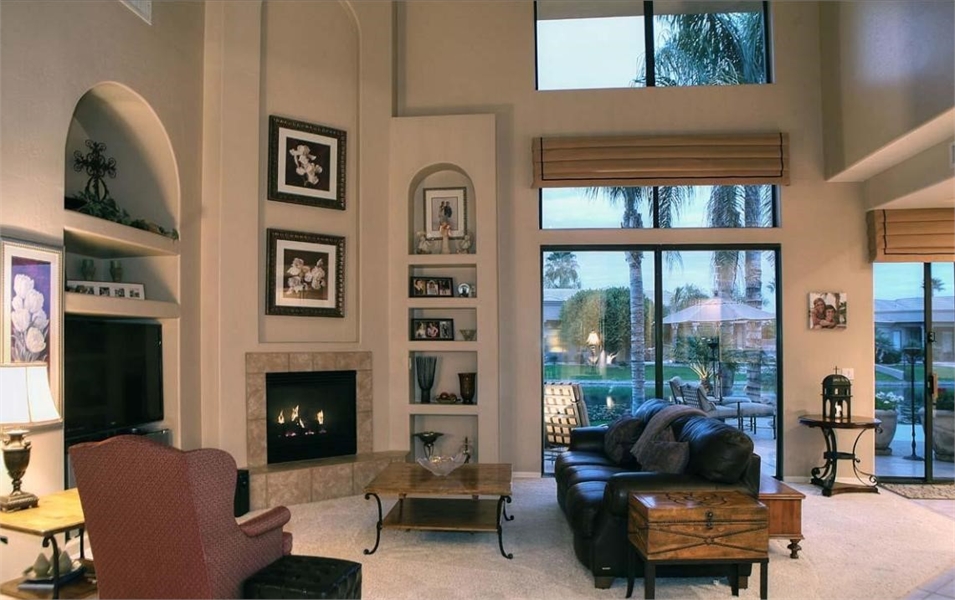

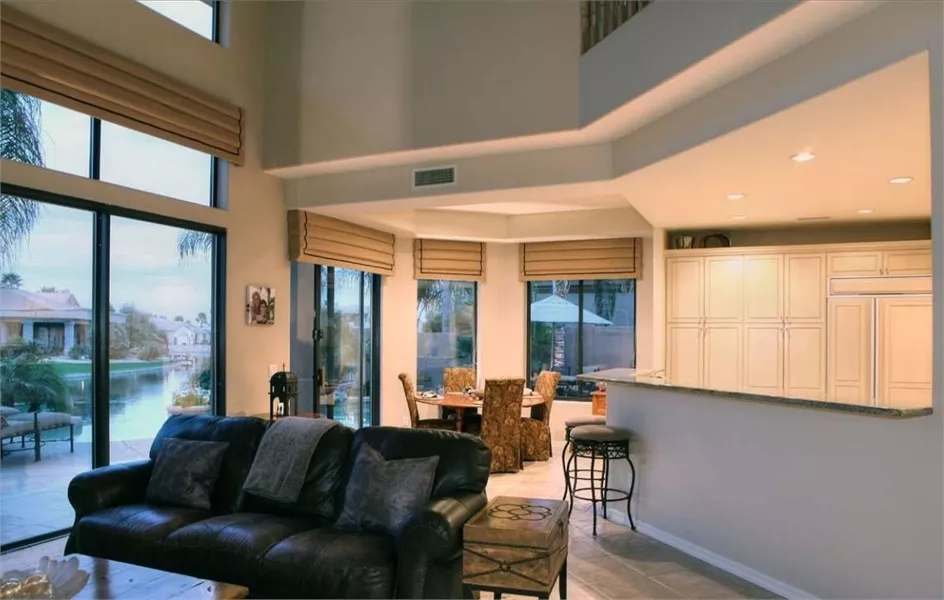

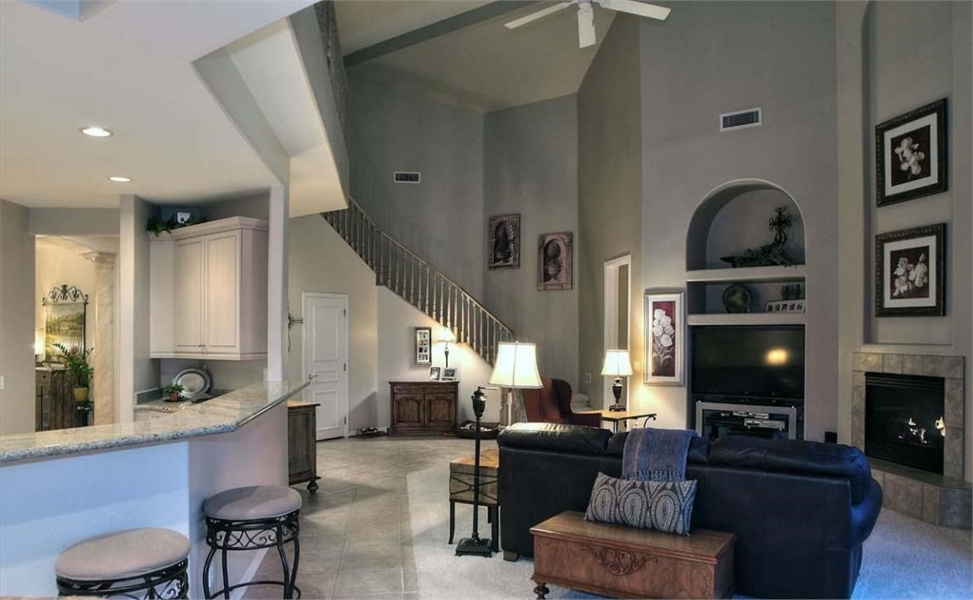

the family room. The
family room has a 20
foot ceiling,
built-ins, and a
corner warming
fireplace. Adjacent
to the family room
is a sweeping
staircase leading to
the second floor.

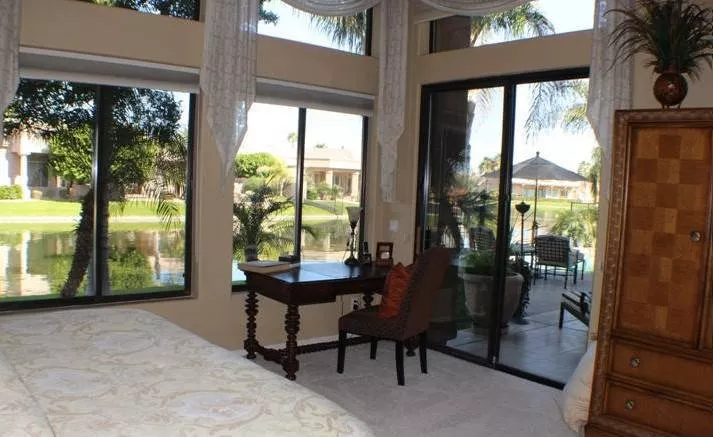

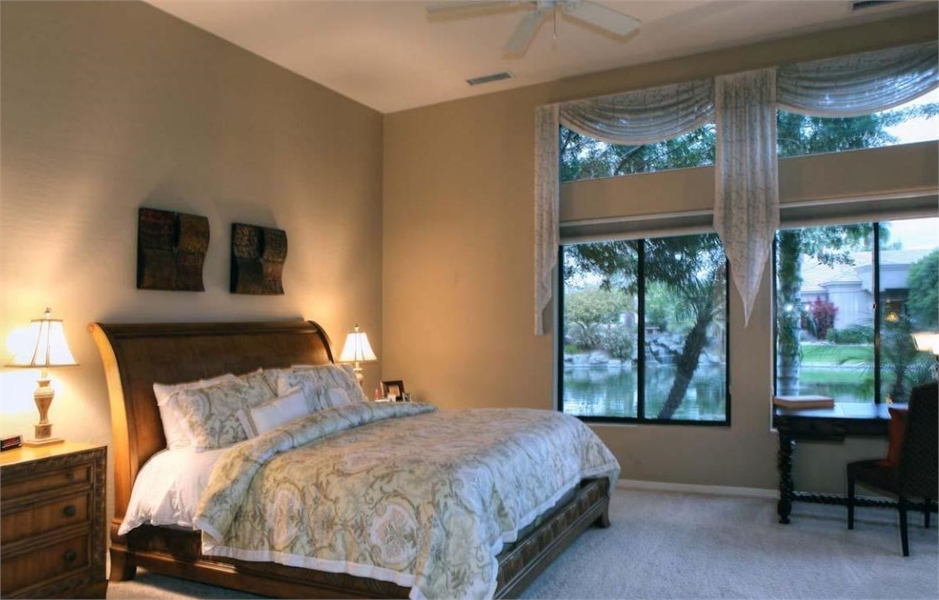

The master suite
boasts a trey
ceiling and

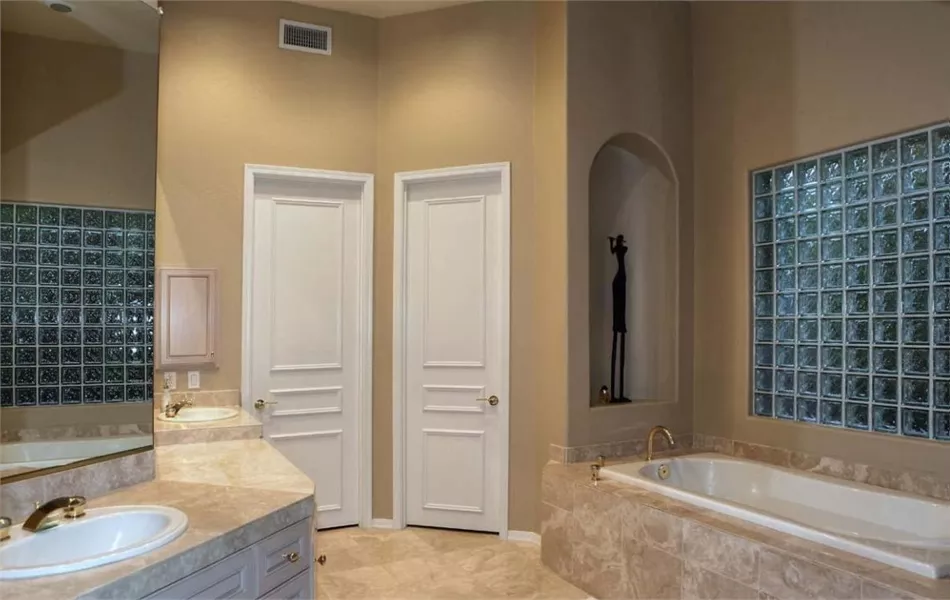

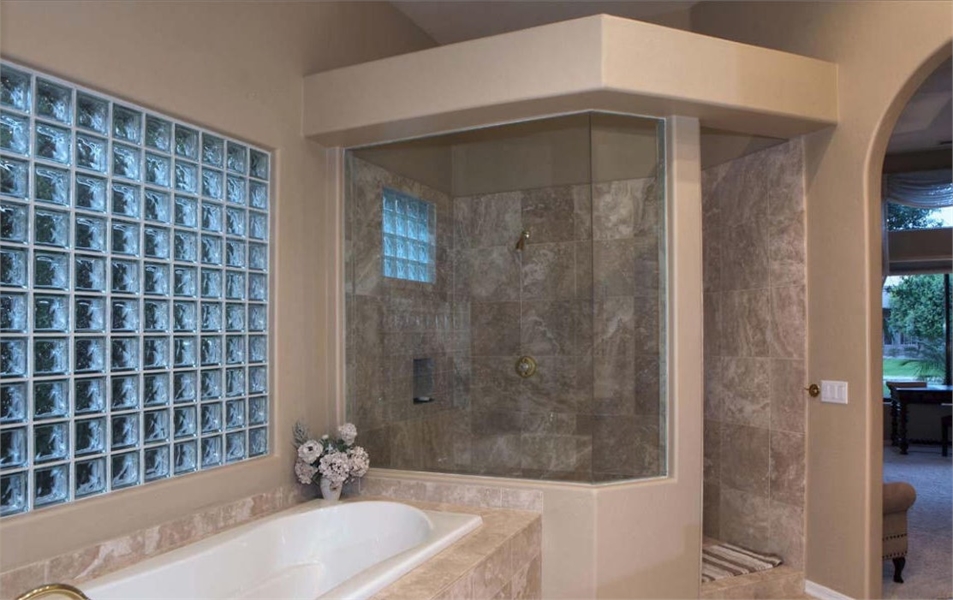

luxurious master
bath with his and
hers vanities, a
separate shower, and
garden tub. A large
wardrobe off the
master bath allows
access to the large
utility room, powder
room, and the one
and two car garages.

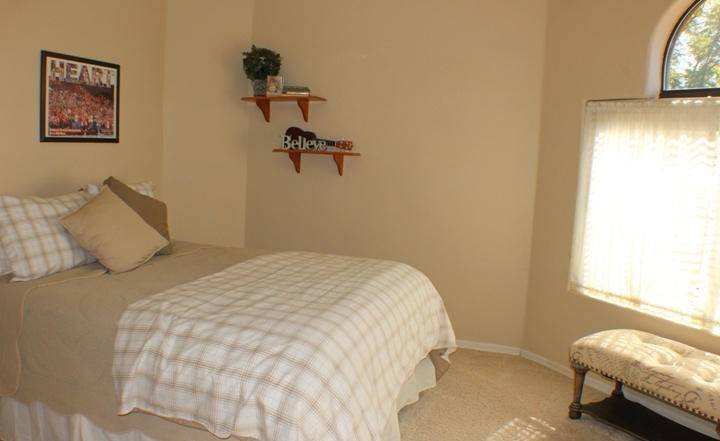

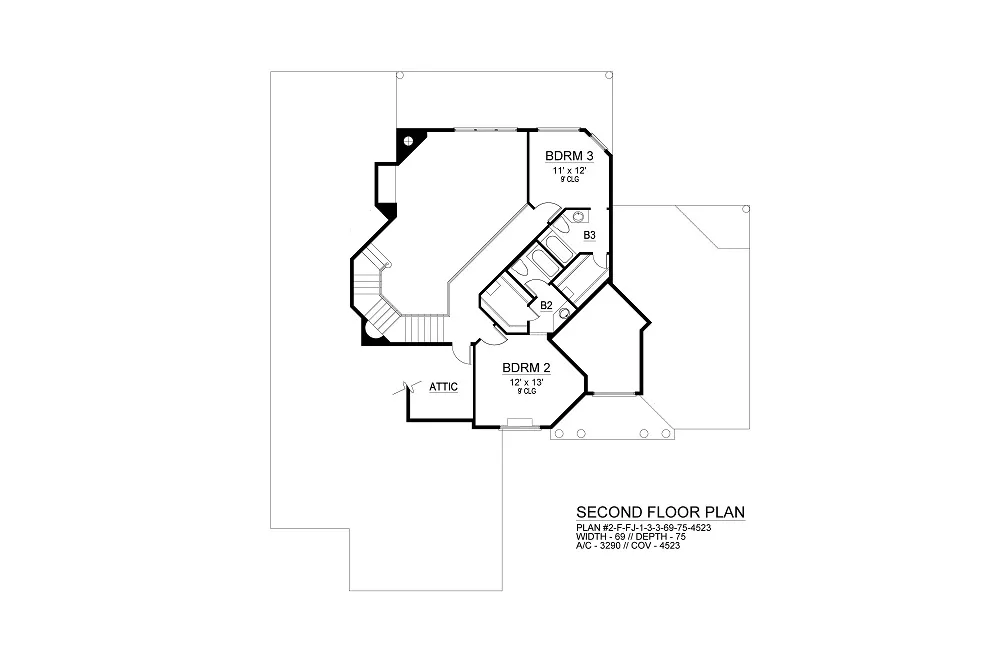

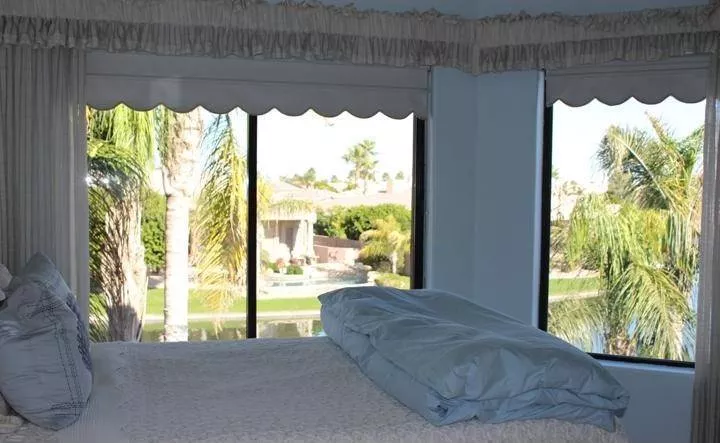

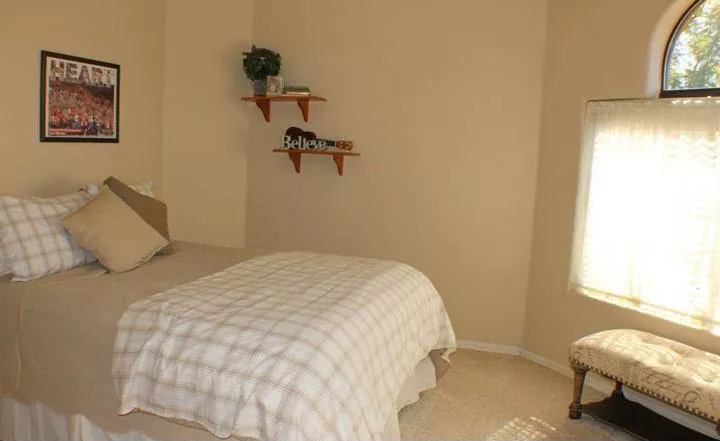

Upstairs two family
bedrooms with full
bath and walk-in
closets share space

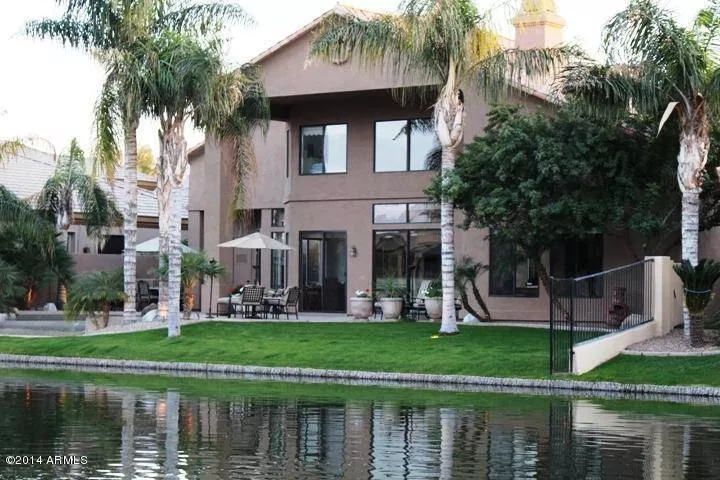

with a game room
that has access to a
balcony facing the
rear, a powder room,
and a second master
suite with master
bath boasting his
and hers vanities, a
shower, and a large
wardrobe. The
upstairs master
suite has access to
a private balcony
and can also be used
as a guest suite or
in-law suite,
completing this
lovely Mediterranean
house plan.


FEATURES & DETAILS

Kitchen features
Kitchen Island
Nook / Breakfast Area
Bedroom features
Primary Bdrm Main Floor
Separate Tub and Shower
Exterior features
Covered Front Porch
Covered Rear Porch
Foundation Options
Slab
Lot Options
Suited for narrow lot
Additional features
Dining Room
Family Room
Formal LR
Foyer
Laundry 1st Fl
Garage Location
Side
Garage Options
Attached
4,523 Ft
2
Total Structure
3,290 Ft
2
Total Heated
2,642 Ft
2
1st Floor
648 Ft
2
2nd Floor
3
Bedrooms
3.5
Bathrooms
3
Garage
2
Stories
69' 0"
Width
75' 0"
Depth
30' 0"
Height
10' 0"
Main Floor Ceiling
9' 0"
Upper Floor Ceiling
2x6
Framing
Stick
Roof Framing
5
Primary Roof Pitch
Single
Dwelling Number

Unheated Living Space
834 Ft
2
Garage
Exterior Styles


Plan Package Options

 Select Plan Package
$1,485
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,485
$1,665
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,665
$2,230
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$2,230
 Need To Reverse Plan? (Optional)
$175
Readable Reverse

Reverse house plans with readable text and dimensions

$175
  Select Foundation Option
  Add-Ons (Optional)

Ground shipping within the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your house plan

Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.

BEST PRICE GUARANTEE

find the same house plan (modifications included!) and package for less on another site, show us the URL and we'll give you the difference plus an additional 5% back.

100% SATISFACTION GUARANTEE

We offer a one-time, 14-day exchange policy for unused, non-electronic plan packages in the event you aren't satisfied with your first selection.
