Sq Ft
1,887 FT²

Bed
3

Bath
2.5

Stories
2

Garage
0

Depth
40' 2"

Width
28'

On Sale
$858.50
$1,010.00

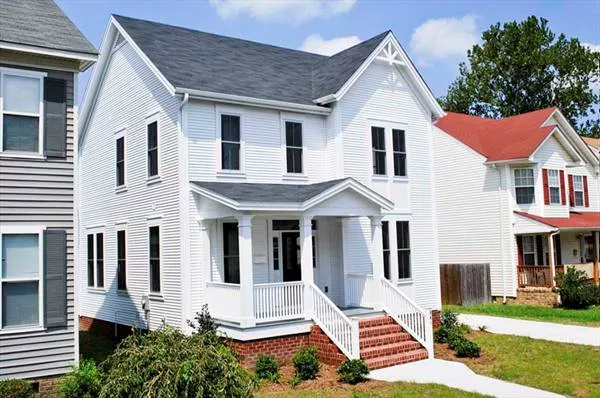

Light and Bright Front Rendering

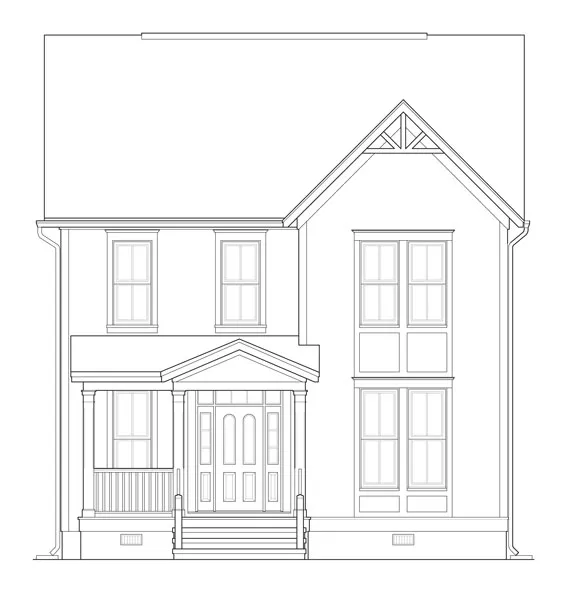

Front Elevation

Rear Elevation

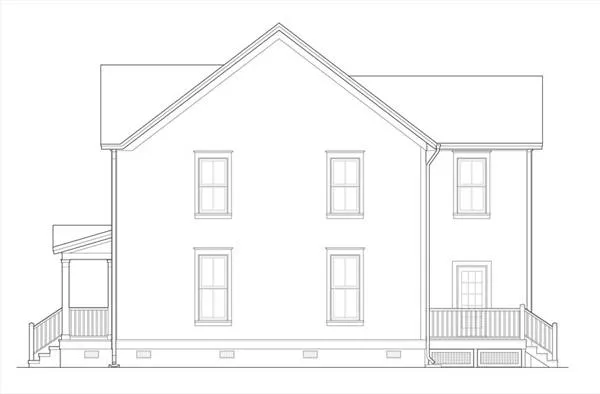

Left Side Elevation

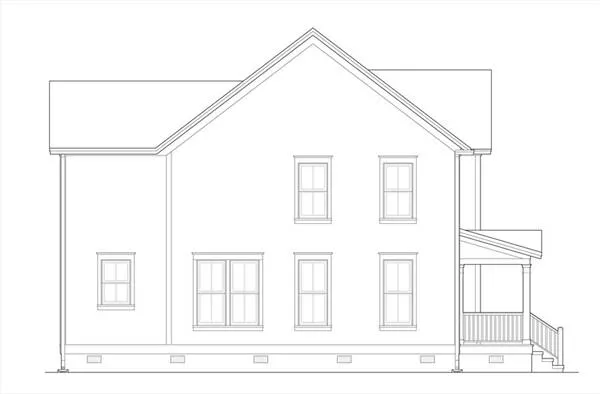

Right Side Elevation

View All 5 Images | Photographs may reflect modified home

Sq Ft

1,887 FT²

From

$858.50

Bed

Bath

2.5

Stories

Garage

Depth

40' 2"

Width

28'

Modify

Cost Estimator

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

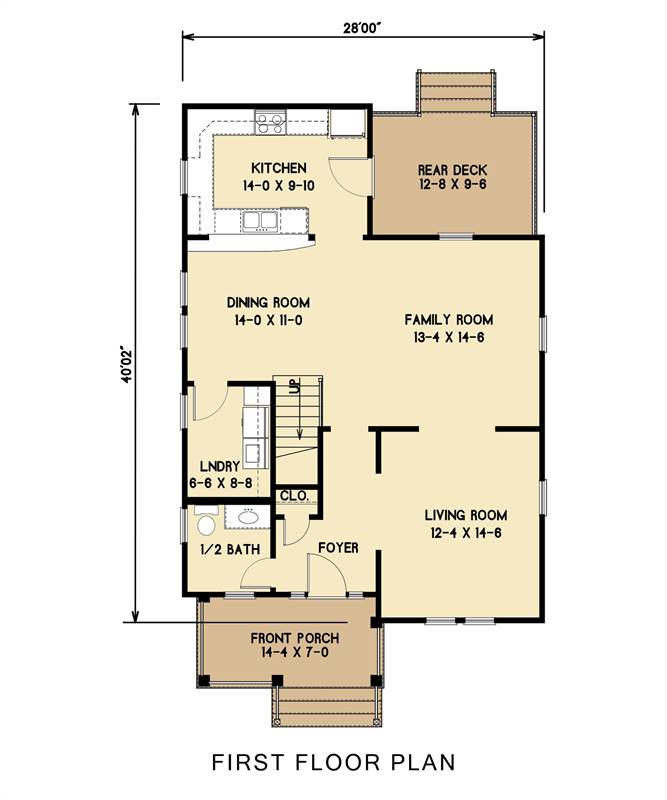

1st Floor

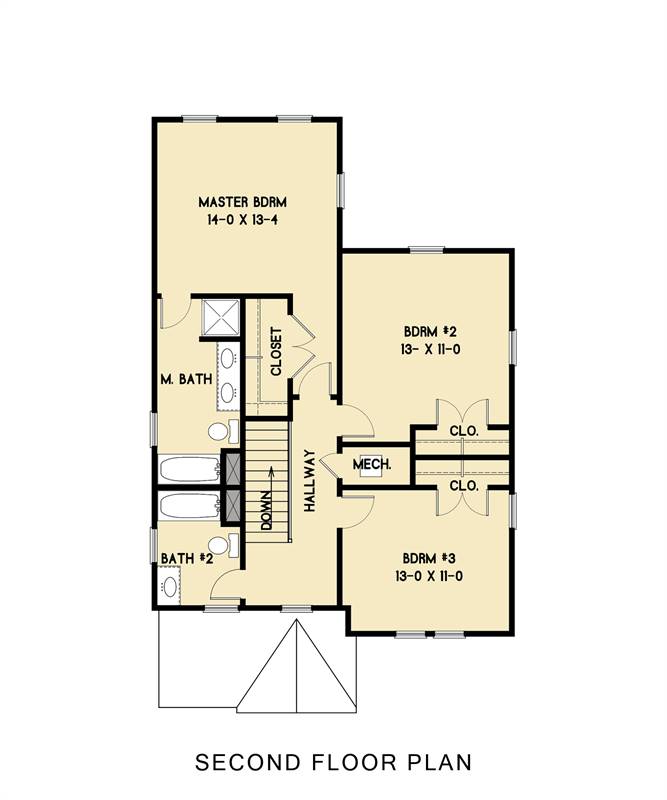

2nd Floor

1st Floor

2nd Floor

About This Plan

Entering into the foyer from the comfortable covered porch, you are met with an optional living or formal dining room. As you proceed towards the back, there is a large family room that extends into a sunny breakfast nook. The kitchen has plenty of space and a sliding glass door that brings you to a wood deck - the perfect size for entertaining. The second floor has 2 bedrooms and the master suite comes complete with a walk-in closet and double vanities.The design of this house plan is “Carpenter Victorian”, which is a well-documented architecture style that embraces gothic details with steep roofs and windows that sometimes have pointed arches.

FEATURES & DETAILS

Kitchen features

Nook / Breakfast Area
U-Shaped

Bedroom features

Double Vanity Sink
Guest Suite
Primary Bdrm Upstairs
Walk-in Closet

Exterior features

Covered Front Porch
Deck
Front Porch

Foundation Options

Crawlspace

Lot Options

Suited for corner lot
Suited for narrow lot
Suited for sloping lot

Additional features

Dining Room
Family Room
Formal LR
Foyer
Laundry 1st Fl

Garage Options

None

2,106 Ft

Total Structure

1,887 Ft

Total Heated

959 Ft

1st Floor

928 Ft

2nd Floor

Bedrooms

2.5

Bathrooms

Garage

Stories

28' 0"

Width

40' 2"

Depth

33' 1"

Height

9' 0"

Main Floor Ceiling

8' 0"

Upper Floor Ceiling

2x4

Framing

Combination

Roof Framing

9/12

Primary Roof Pitch

12/12

Secondary Roof Pitch

Single

Dwelling Number

None

Bonus Access

Unheated Living Space

99 Ft

Porch

120 Ft

Deck

Exterior Styles

Craftsman

Southern

Traditional

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$250

PDF Bid Set

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

$250

$1,010

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,010

$1,110

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,110

$1,690

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$1,690

Select Foundation Option

Add-Ons (Optional)

	Ground shipping within the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your house plan
	Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
