Shadow Mountain Chalet, THD-3159

Sq Ft
1,164 FT²
Bed
1
Bath
2
Stories
2
Garage
3
Depth
64'
Width
24'
On Sale
$888.25
$1,045.00
EXCLUSIVE PLAN
© copyright by designer
View All 2 Images | Photographs may reflect modified home
Sq Ft
1,164 FT²
From
$888.25
Bed
1
Bath
2
Stories
2
Garage
3
Depth
64'
Width
24'

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

This 1164 sq. ft. Cottage is one of our Lifetime Series:

A Lifetime Home...
Why It's Extraordinary...
Why It's Green:

1) Utility Independence

This two-fold initiative will enable development in remote locations and provide additions to current homes for supplemental, or even primary utility services. This practical and affordable Utility Independence Series provides new opportunities for vacation retreats, private quarters hidden in remote natural areas, and Freedom to live virtually wherever you choose without sacrificing comfort or convenience.

2) Learning from the Past, Planning for the Future...

With each new day, we seem to be confronted with issues of depleting resources or other environmental concerns. This series of designs offers a proactive opportunity to reverse the trend, to use emerging technologies, to become increasingly self-sufficient and become a part, not of the problem, but of the solution.

3) The Shadow Mountain Chalet:

Let your cares and concerns melt away in this luxurious, yet uncommon design. Whether it becomes a compliment to your current home, or the Retreat you've always envisioned, this chalet provides abundant possibilities. Its Gambrel roof provides a perfect balance of aesthetics and functionality. With utility Independence as its focus, features such as Dow Powerhouse shingles, a Gale vertical axis wind turbine hidden within its lovely cupola, and other active and passive energy technologies abound.

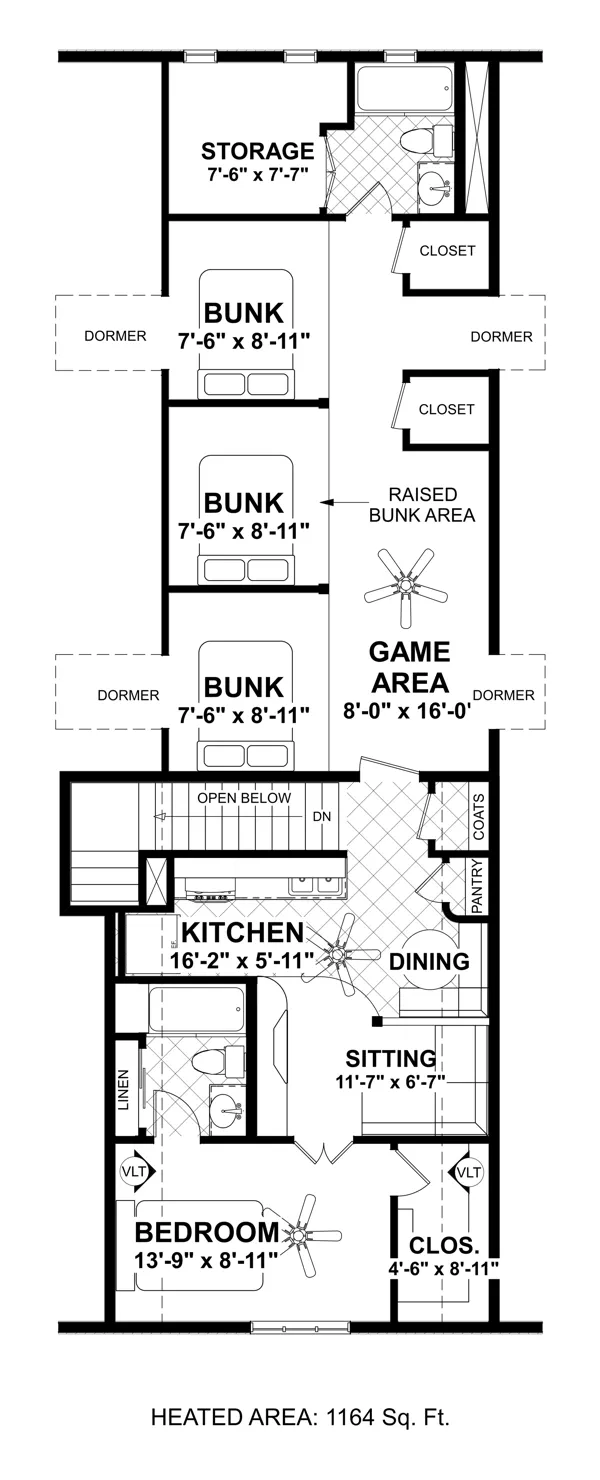

The unique floor plan provides both a private Owner's Suite and abundant raised bunks with entertainment space for family or guests. The Suite features a walk-in closet and direct access to the bath. The entertainment center is easily viewable from the sofa or the banquette. The kitchen is an efficiency design and includes a spacious pantry.

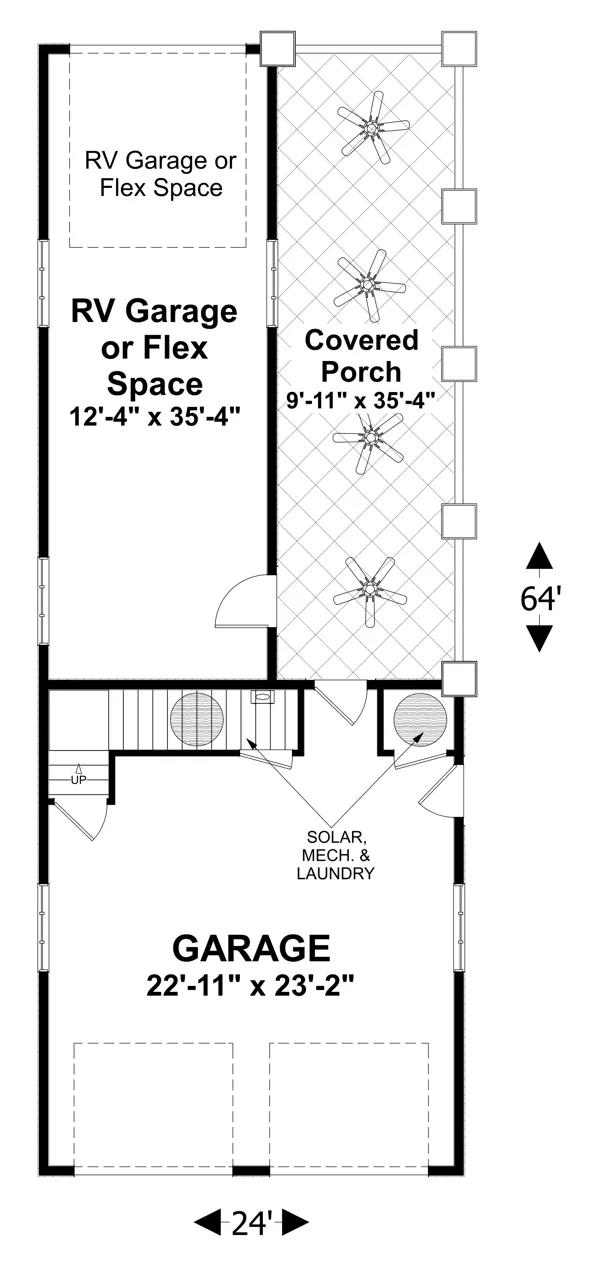

The Lower level provides storage for an array of solar & mechanical equipment, including a tankless water heater and optional laundry. There is abundant space for an RV, Boat or even additional living or storage area. The irresistible oversized covered side porch provides abundant space to entertain and enjoy the evening breeze.



FEATURES & DETAILS

Foundation Options
Slab
Garage Location
Front
Garage Options
Detached
Front-entry
Rear-entry
1,164 Ft
2
Total Heated
1,164 Ft
2
2nd Floor
1
Bedrooms
2
Bathrooms
3
Garage
2
Stories
24' 0"
Width
64' 0"
Depth
22' 6"
Height
10' 6"' 0"
Main Floor Ceiling
8' 0"
Upper Floor Ceiling
2x6
Framing
Truss
Roof Framing
14/12
Primary Roof Pitch
6/12
Secondary Roof Pitch
Garage
Dwelling Number

Unheated Living Space


Plan Package Options

 Select Plan Package
$745
PDF Bid Set

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

$745
$1,045
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,045
$1,045
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,045
$1,195
8 Printed Sets

Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

$1,195
$1,495
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$1,495
 Need To Reverse Plan? (Optional)
$295
Readable Reverse

Reverse house plans with readable text and dimensions

$295
  Select Foundation Option
  Add-Ons (Optional)

Ground shipping within the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your house plan

Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total
$0
Free Shipping

Note: Note:Please allow 3 weeks for the completion and delivery of this plan.
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
