House Plan 4042: Seville

The columned portico provides a majestic entry into a well designed home. Tiled foyer and walkways separate the formal dining room and living room. A wall of glass in the living room affords a spectacular view of the pool/patio area.  Read more >

House Plan Details

Sq. Ft.
2,409
Beds
4
Baths
3.0
Stories
1
Garages
3
Width
65' 0"
Depth
85' 0"
1st Floor
2,409
Garage
495
Porch
103
Patio
304
Select Plan Package
FIVE SETS OF BONDPRINTS
$840
Select Foundation Options
$0
Slab
$0
Optional Add-Ons
Subtotal: $0

PLAN IMAGES

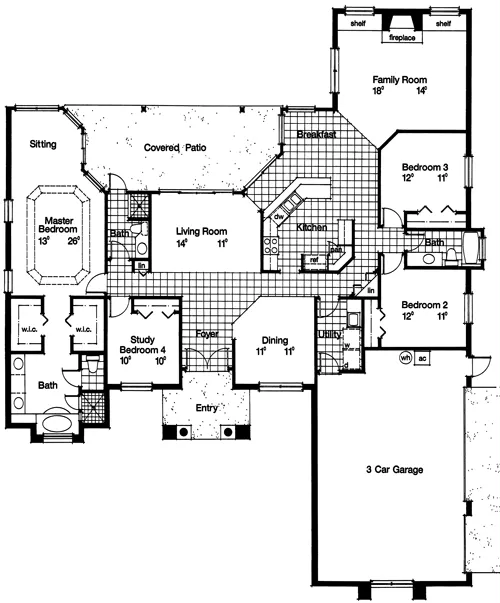

First Floor Plan

First Floor Plan
© copyright by designer

Plan Details

Basic Information
Bedrooms: 4
Bathrooms: 3.0
Garage: 3
Stories: 1
Exterior Style
Mediterranean
Modern
Dimensions
Width: 65' 0"
Height: 20' 0"
Depth: 85' 0"
Heated Living Space
Total Sq. Ft: 2,409
1st Floor: 2,409
Unheated Living Space
Garage: 495
Porch: 103
Patio: 304
Ceiling
Upper Ceiling Ft:
Main Ceiling Ft: 10/14
Framing Information
Framing: 8" Block/Wood
Roof Framing: Truss
Bedroom Features
Double Vanity Sink
Double Vanity Sink
His and Hers Master Closets
His and Hers Master Closets
Master Bdrm Main Floor
Master Bdrm Main Floor
Separate Tub and Shower
Separate Tub and Shower
Sitting Area
Sitting Area
Split Bedrooms
Split Bedrooms
Walk-in Closet
Walk-in Closet
Kitchen Features
Nook / Breakfast Area
Nook / Breakfast Area
Peninsula / Eating Bar
Peninsula / Eating Bar
Walk-in Pantry
Walk-in Pantry
Additional Room Features
Dining Room
Dining Room
Family Room
Family Room
Fireplace
Fireplace
Formal LR
Formal LR
Foyer
Foyer
Great Room
Great Room
Home Office
Home Office
Laundry 1st Fl
Laundry 1st Fl
Library/Media Rm
Library/Media Rm
Mud Room
Mud Room
Open Floor Plan
Open Floor Plan
Garage Location
Side
Garage Features
Attached
Attached
Side-entry
Side-entry
Lot Features
Suited for view lot
Suited for view lot
Roof Pitch
Primary: 6:12
